FRAME (MODEL T)

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

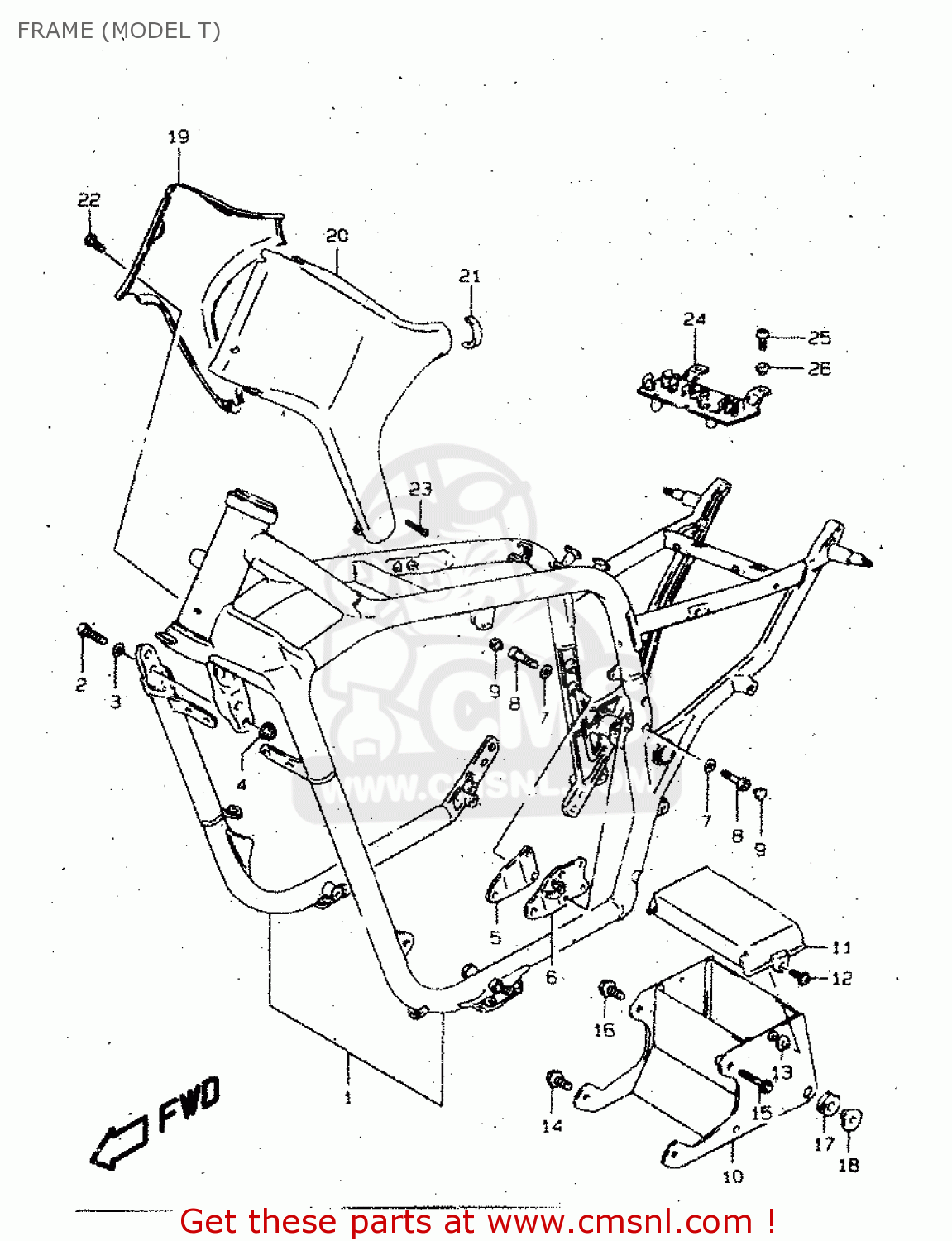

Frame (model t) diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

FRAME (MODEL T) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
FRAME (MODEL T) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
FRAME (MODEL T) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
411013882233J
ref: 1
FOR E6L, E6M
FRAME SET
€ 1,654.00
1
41101388221ZV
ref: 1
FOR E6N
FRAME SET
€ 1,654.00
2
0910610019
ref: 2
BOLT(10X33)
0910610019
€ 4.00
3
0916410005
ref: 3
WASHER
0916410005
€ 6.50
4
0831931105
ref: 4
NUT 10MM
€ 3.00
5
4195138B0033J
ref: 5
FOR E6L, E6M
PLATE,ENG MTG NO.4,R
€ 9.50
5
4195138B001ZV
ref: 5
FOR E6N
PLATE,ENGINE MOUNTING NO
€ 9.50
6
4196038B0033J
ref: 6
FOR E6L, E6M
PLATE,ENGINE MOUNT NO.4,L
4196038B0033J
€ 23.00
6
4196038B001ZV
ref: 6
FOR E6N
PLATE,ENGINE MOUNT NO.4,L
€ 27.50
7
0916408015
ref: 7
WASHER
0916408015
€ 3.00
8
0910608072
ref: 8
BOLT(8X32)
0910608072
€ 5.00
9
0925006004
ref: 9
CAP(OD:14.5)
0925006004
€ 1.50
10
4154038B00
ref: 10
HOLDER COMP,BATTERY
€ 97.00
11
3365838B00
ref: 11
COVER,BATTERY
3365838B00
€ 12.00
12
0913805012
ref: 12
SCREW(5X12)
0913805012
€ 2.50
13
0916905014
ref: 13
WASHER
0916905014
€ 10.00
14
0155006163
ref: 14
BOLT
0155006163
€ 2.50
15
0155008203
ref: 15
BOLT
0155008203
€ 3.00
16
0910308222
ref: 16
BOLT(8X40)
0910308222
€ 3.00
17
0932012042
ref: 17
CUSHION
0932012042
€ 4.00
18
0930108009
ref: 18
BUSH
0930108009
€ 6.50
19
4735038B0133J
ref: 19
FOR E6L, E6M
COVER,FRAME HEAD,R(BLACK)
€ 137.00
19
4735038B011ZV
ref: 19
FOR E6N
COVER,FRAME HEAD,R
€ 137.00
20
4736038B1133J
ref: 20
FOR E6L, E6M
COVER,FRM.HD.,
€ 119.00
20
4736038B111ZV
ref: 20
FOR E6N
COVER COMP,FRAME HEAD
€ 119.00
21
4735938B00
ref: 21
PROTECTOR,FRAME HEAD COVER
4735938B00
€ 2.00
22
0214206103
ref: 22
SCREW 6X10
0214206103
€ 2.00
23
0211204253
ref: 23
SCREW
0211204253
€ 2.00
24
4741138B02
ref: 24
HOLDER,COUPLER
4741138B02
€ 11.50
25
0214206163
ref: 25
SCREW
0214206163
€ 2.50
26
0916906010
ref: 26
WASHER
0916906010
€ 3.00
