MAGNETO

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

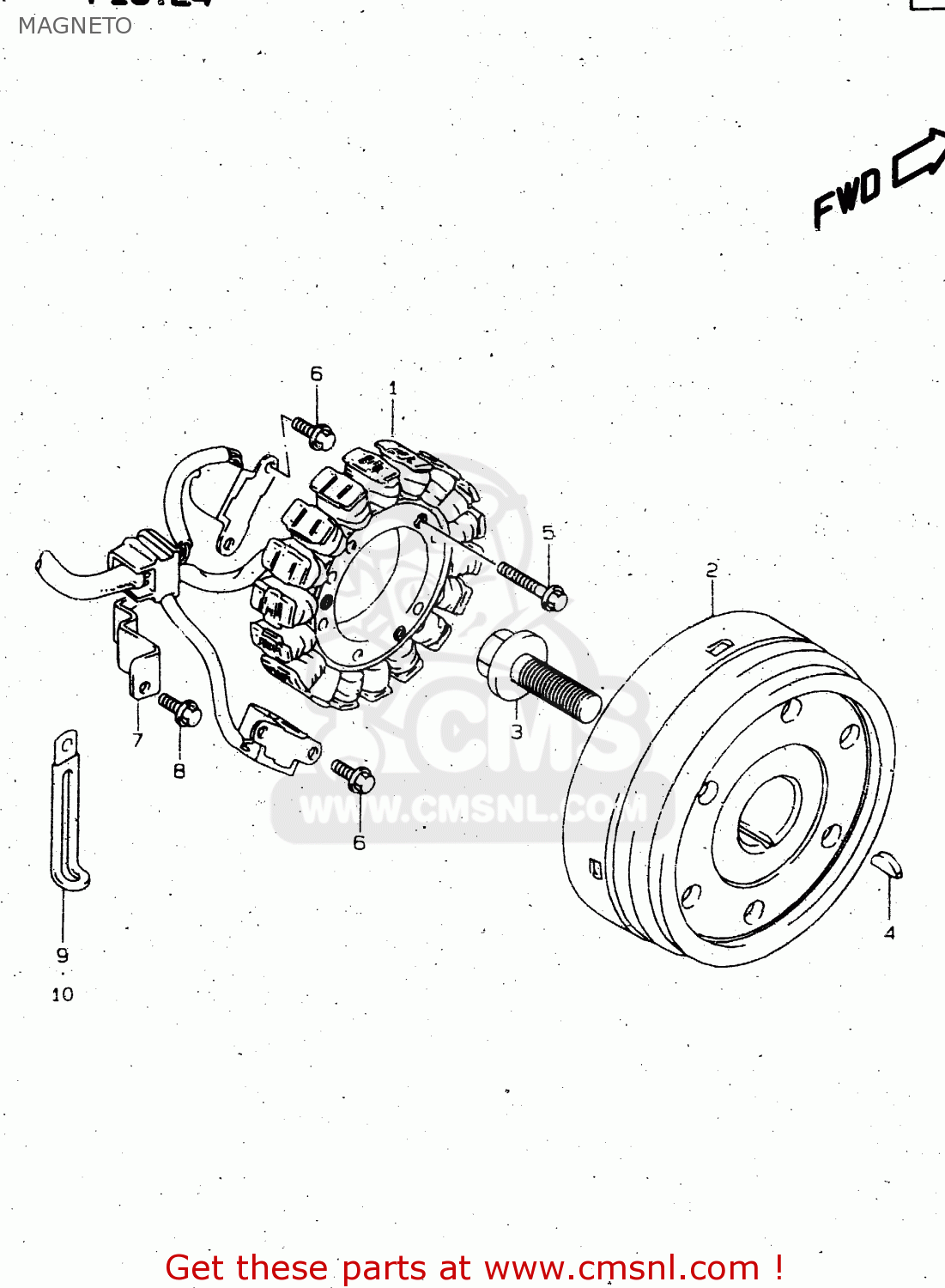

Magneto diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

MAGNETO VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

MAGNETO VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3210138B01
ref: 1
<-32101-38B00

STATOR ASSEMBLY

€ 1,055.00

2

3210238B10
ref: 2

ROTOR ASSY

€ 743.00

3

0910314001
ref: 3

BOLT(14X43)

€ 7.00

4

0942005007
ref: 4

KEY

€ 3.00

5

0154706303
ref: 5

BOLT,G/S SWITC

€ 3.00

6

0154705103
ref: 6

BOLT

€ 2.50

7

3237145C00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8

0154705103
ref: 8

BOLT

€ 2.50

9

0940408206
ref: 9
<-09404-08418

CLAMP(L:65 T:0.8)

€ 3.50

10

0940406432
ref: 10
<-09404-06429

CLAMP(L:65)

€ 2.50
