REAR FENDER (MODEL X)

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

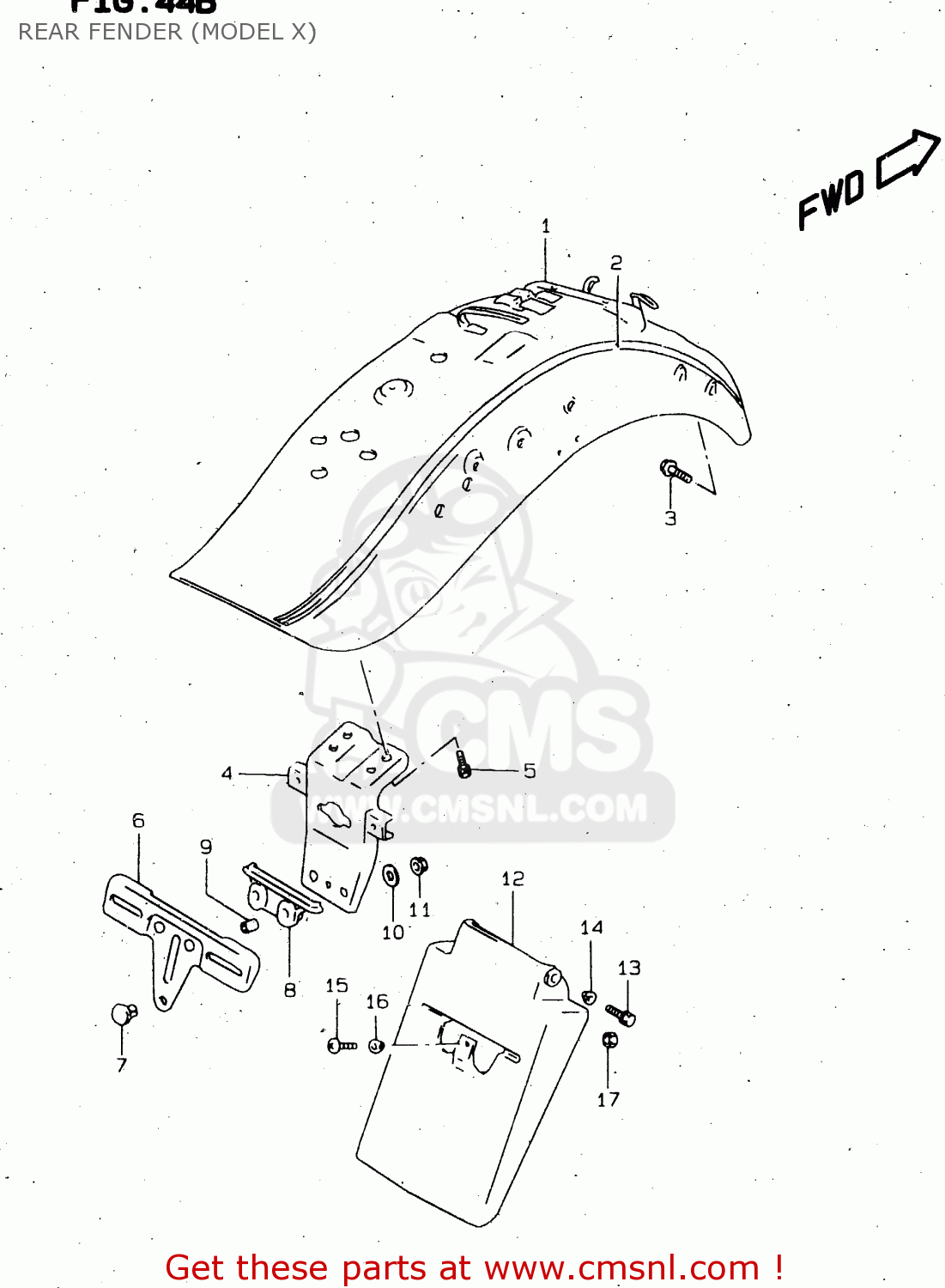

Rear fender (model x) diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

REAR FENDER (MODEL X) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
REAR FENDER (MODEL X) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
REAR FENDER (MODEL X) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
6310038B20E88
ref: 1
FENDER, REAR
€ 476.50
1
6310038B20G2P
ref: 1
FENDER, REAR
€ 363.00
1
6310038B20M0J
ref: 1
FENDER, REAR
€ 451.50
1
6310038B40E88
ref: 1
E17
FENDER, REAR
€ 347.50
1
6310038B40G2P
ref: 1
E17
FENDER, REAR
€ 347.50
1
6310038B40M0J
ref: 1
E17
FENDER ASSY,RR
€ 0.00
2
6817038B01L3U
ref: 2
FOR E88
TAPE SET,REAR FENDER S
€ 76.50
2
6817038B01J5S
ref: 2
FOR G2P
TAPE SET,REAR FENDER S
€ 65.50
2
6817038B01M1B
ref: 2
FOR M0J
TAPE SET,REAR FENDER S
€ 69.50
3
0155008203
ref: 3
BOLT
0155008203
€ 3.00
4
6346038B10
ref: 4
BRACKET,LICENSE LAMP
6346038B10
€ 56.50
5
0157006123
ref: 5
BOLT
0157006123
€ 1.50
6
6346338B00
ref: 6
PLATE,REAR LICENSE
6346338B00
€ 27.50
7
0932108005
ref: 7
CUSHION
0932108005
€ 2.50
8
6346438B00
ref: 8
CUSHION,RR LICENSE PLATE
6346438B00
€ 14.50
9
0918005050
ref: 9
SPACER(5.5X8X14.3)
0918005050
€ 4.00
10
0916005501
ref: 10
WASHER(5.5X20X1.2)
0916005501
€ 2.00
11
0831620053
ref: 11
NUT
0831620053
€ 2.00
12
6331138B00
ref: 12
E17, E22
EXTENSION,RR FENDER
6331138B00
€ 26.50
13
0157006163
ref: 13
E17, E22
BOLT
0157006163
€ 2.50
14
0916906045
ref: 14
E17, E22
WASHER
0916906045
€ 2.50
15
0211206123
ref: 15
E17, E22
SCREW
0211206123
€ 1.50
16
0916906033
ref: 16
E17, E22
WASHER
0916906033
€ 1.50
17
0831921068
ref: 17
E17, E22
NUT 6MM
0831921068
€ 2.00
