CARBURETOR (FRONT)

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

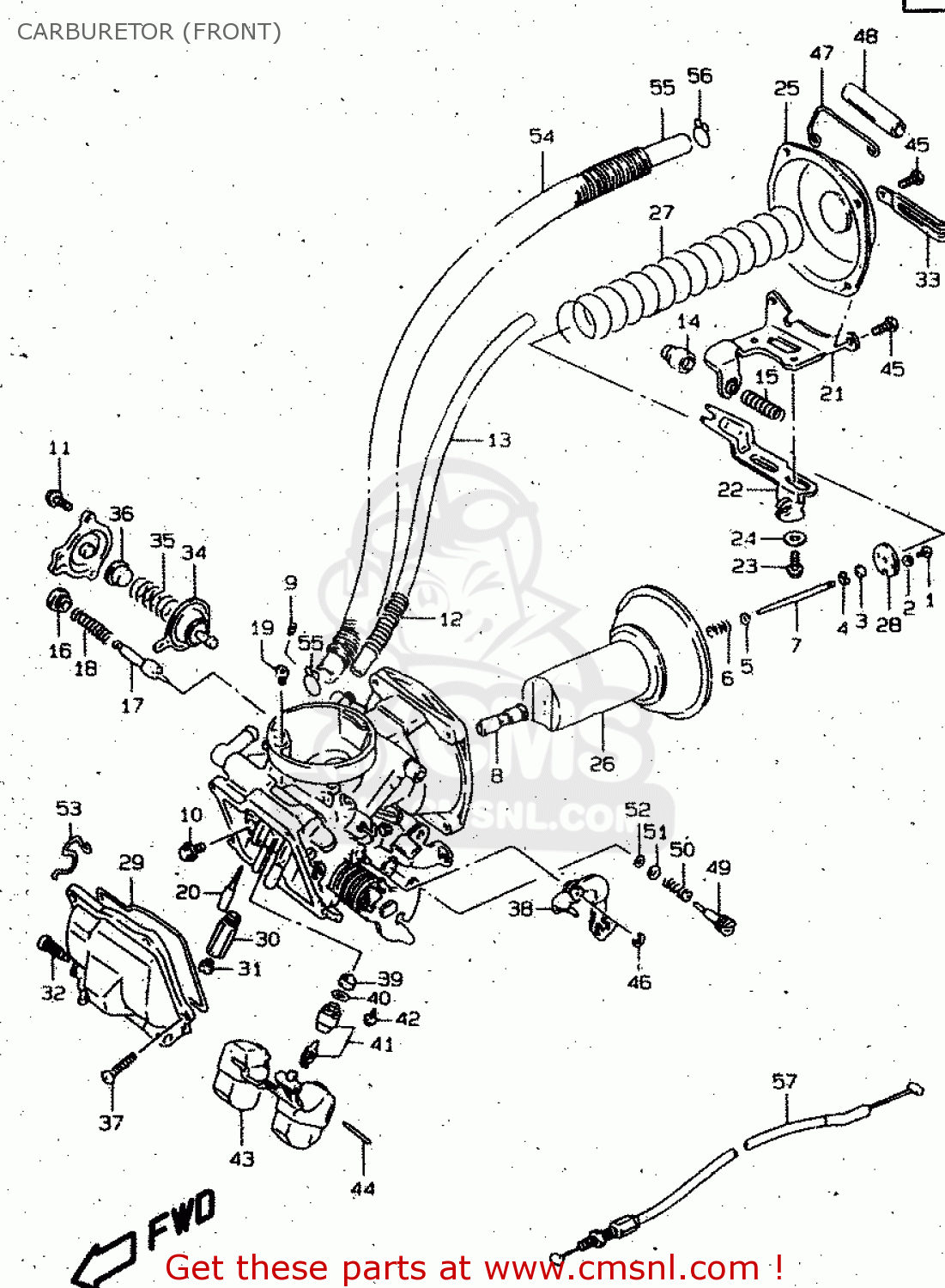

Carburetor (front) diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CARBURETOR (FRONT) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CARBURETOR (FRONT) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CARBURETOR (FRONT) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
0
1321038BB0
ref: 0
CARBURETOR ASSY,FR
€ 777.00
0
1321038BC0
ref: 0
E17, E22
CARBURETOR ASSY,FR
€ 639.50
0
1321038B90
ref: 0
E24
CARBURETOR ASSY,FR
€ 776.50
0
1321038BD0
ref: 0
E37, P37
CARBURETOR ASSY, FRONT
€ 0.00
1
0211203063
ref: 1
SCREW
0211203063
€ 2.00
2
0832121033
ref: 2
WASHER,LOCK
0832121033
€ 1.50
3
1338747010
ref: 3
RING
1338747010
€ 7.50
4
1339410010
ref: 4
CLIP
1339410010
€ 4.50
5
1338244030
ref: 5
WASHER
1338244030
€ 3.50
6
1338844030
ref: 6
SPRING
1338844030
€ 6.00
7
1338338B90
ref: 7
NEEDLE,JET
1338338B90
€ 18.00
8
0949400501
ref: 8
JET,NEEDLE
0949400501
€ 28.50
8
0949400570
ref: 8
E24
JET,NEEDLE(O-9)
0949400570
€ 26.00
9
0949328006
ref: 9
<-09493-28007
JET,PILOT AIR,1.4
0949328006
€ 15.50
9
0949334002
ref: 9
E24
JET,PILOT AIR(1.7)
€ 9.50
10
1360538B00
ref: 10
SCREW
1360538B00
€ 7.50
11
0211204103
ref: 11
SCREW
0211204103
€ 1.00
12
1368938A00
ref: 12
SPRING
1368938A00
€ 8.50
13
0935250823600
ref: 13
L:600->185
HOSE(5X8.2X600)
0935250823600
€ 13.00
14
1368104010
ref: 14
CAP
1368104010
€ 3.00
15
1341737100
ref: 15
SPRING
1341737100
€ 4.00
16
1341805A10
ref: 16
HOLDER,GUIDE
1341805A10
€ 12.00
17
1341105300
ref: 17
PLUNGER
1341105300
€ 23.50
17
1341138B00
ref: 17
E24
PLUNGER
1341138B00
€ 23.50
18
1341743010
ref: 18
SPRING
1341743010
€ 3.50
19
0949270004
ref: 19
JET,PILOT(70)
0949270004
€ 9.50
19
0949255010
ref: 19
E24
JET,PILOT
0949255010
€ 13.50
20
0949250018
ref: 20
JET,PILOT(50)
0949250018
€ 17.50
21
1362838B00
ref: 21
BRACKET
€ 32.50
22
1342238B00
ref: 22
PLATE
€ 19.50
23
1360205A30
ref: 23
SCREW
1360205A30
€ 4.50
24
1333205A20
ref: 24
WASHER
1333205A20
€ 3.00
25
1350238A00
ref: 25
COVER,DIAPHRAGM
1350238A00
€ 34.00
26
1350038B20
ref: 26
DIAPHRAGM ASSY
1350038B20
€ 255.50
27
1350338B00
ref: 27
SPRING,DIAPHRAGM
1350338B00
€ 12.00
28
1338937400
ref: 28
PLATE
1338937400
€ 5.50
29
1325138A00
ref: 29
O RING,FLOAT CHAMBER
1325138A00
€ 6.50
30
1338505A11
ref: 30
HOLDER,MAIN JET
1338505A11
€ 14.00
31
0949122014
ref: 31
JET,MAIN(112.5)
0949122014
€ 16.50
31
0949125014
ref: 31
E24
JET,MAIN(125)
0949125014
€ 11.50
32
1324713A00
ref: 32
SCREW,DRAIN
1324713A00
€ 5.50
33
0940406432
ref: 33
<-09404-06429
CLAMP(L:65)
0940406432
€ 2.50
33
0940406413
ref: 33
E24
CLAMP
0940406413
€ 2.50
34
1348005A10
ref: 34
DIAPHRAGM ASSY
1348005A10
€ 54.50
35
1348138B40
ref: 35
SPRING
1348138B40
€ 5.50
35
1348138B90
ref: 35
E24
SPRING
1348138B90
€ 4.00
36
1348237300
ref: 36
E24
PLATE
€ 0.00
37
1360219C00
ref: 37
SCREW
€ 3.00
37
0214204167
ref: 37
SCREW
€ 2.00
37
1360219C00
ref: 37
E24
SCREW
€ 3.00
38
1355445C20
ref: 38
<-13554-45C00
LEVER ASSY
1355445C20
€ 38.50
39
1337684110
ref: 39
FILTER
€ 6.50
40
1337444080
ref: 40
O-RING,NEEDLE VALVE
1337444080
€ 6.00
41
1337039A00
ref: 41
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
41
1337038B00
ref: 41
E24
VALVE ASSY,NEEDLE
1337038B00
€ 64.50
41
1337038E00
ref: 41
E37, P37
VALVE ASSY,NEEDLE(NI)
€ 67.50
42
1360205A10
ref: 42
SCREW
1360205A10
€ 4.00
43
1325038B00
ref: 43
FLOAT
1325038B00
€ 32.00
44
1325420010
ref: 44
PIN,FLOAT
1325420010
€ 3.00
45
0211205127
ref: 45
SCREW
0211205127
€ 2.50
46
1341538300
ref: 46
E RING
1341538300
€ 2.00
47
1367138A00
ref: 47
CLIP
1367138A00
€ 10.50
48
0935260103600
ref: 48
L:600->50
HOSE(6X10X600)
0935260103600
€ 18.00
49
1327947070
ref: 49
SCREW,PILOT
1327947070
€ 11.50
49
1327947070
ref: 49
E17, E22, E24
SCREW,PILOT
1327947070
€ 11.50
50
1326847070
ref: 50
SPRING
1326847070
€ 5.00
51
1329129900
ref: 51
WASHER
1329129900
€ 2.00
52
1329529900
ref: 52
O RING,PILOT AIR SCREW
1329529900
€ 4.00
53
1369224A00
ref: 53
CLAMP
€ 5.00
54
1368438B00
ref: 54
HOSE
1368438B00
€ 21.50
55
0935465113600
ref: 55
L:600->550
HOSE(6.5X11.5X600)
0935465113600
€ 26.00
56
0940111403
ref: 56
<-09401-11402
CLIP
0940111403
€ 3.00
57
1364138B02
ref: 57
CABLE,IDLE SYNCRO
€ 17.50
