CARBURETOR (REAR)

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

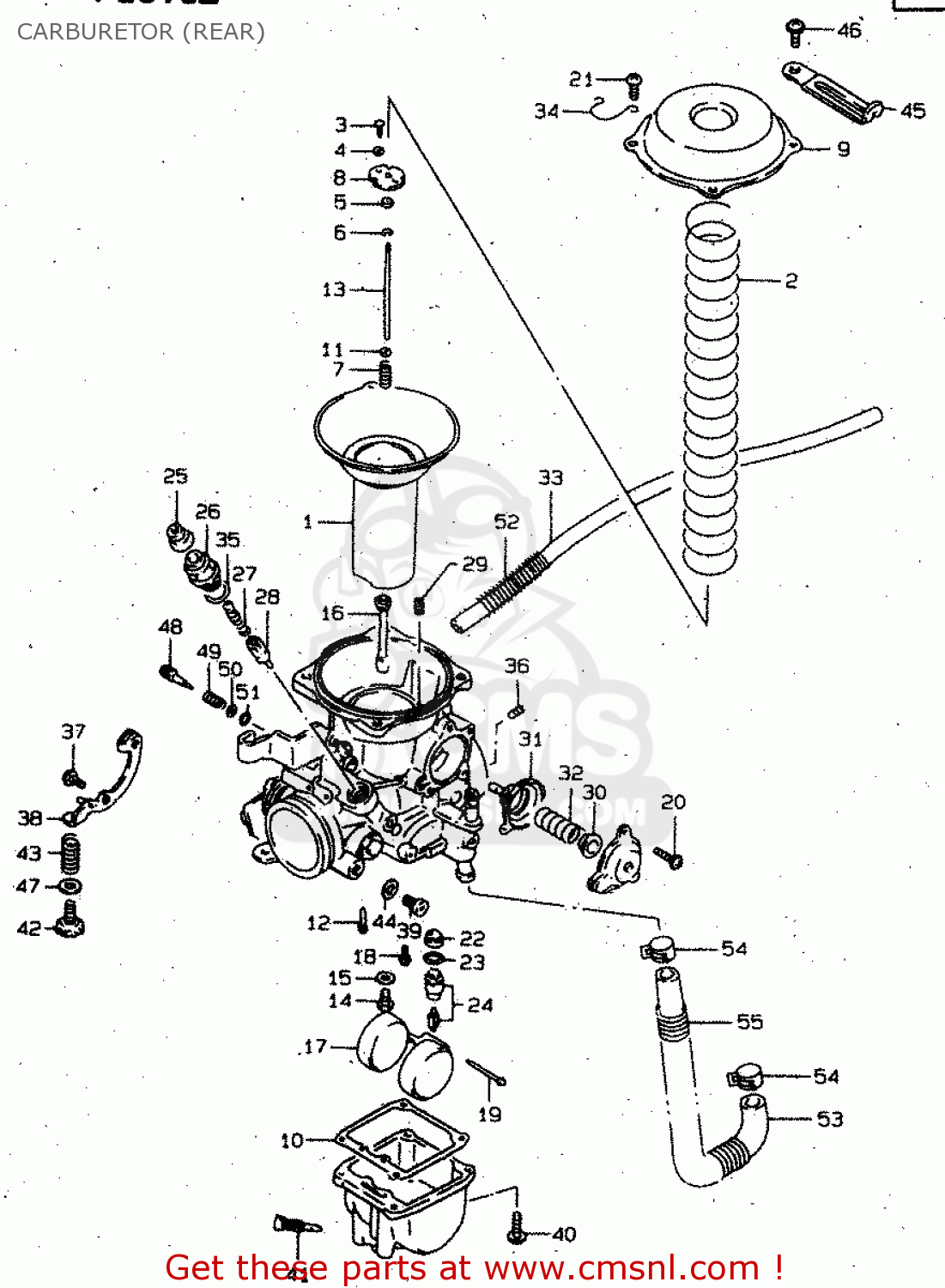

Carburetor (rear) diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CARBURETOR (REAR) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CARBURETOR (REAR) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CARBURETOR (REAR) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
0
1322038BB0
ref: 0
CARBURETOR ASSY,RR
€ 777.00
0
1322038BC0
ref: 0
E17, E22
CARBURETOR ASSY,RR
€ 634.00
0
1322038B90
ref: 0
E24
CARBURETOR ASS
€ 731.50
0
1322038BD0
ref: 0
E37, P37
CARBURETOR ASSY, REAR
€ 0.00
1
1350038B10
ref: 1
DIAPHRAGM ASSY
1350038B10
€ 231.00
2
1350305A10
ref: 2
SPRING,DIAPHRAGM
1350305A10
€ 12.00
3
0211203063
ref: 3
SCREW
0211203063
€ 2.00
4
0832121033
ref: 4
WASHER,LOCK
0832121033
€ 1.50
5
1338747010
ref: 5
RING
1338747010
€ 7.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1338844030
ref: 7
SPRING
1338844030
€ 6.00
8
1338937400
ref: 8
PLATE
1338937400
€ 5.50
9
1350238A10
ref: 9
COVER,DIAPHRAGM
€ 37.50
10
1325138A10
ref: 10
GASKET,FLOAT CHAMBER (NAS)
1325138A10
€ 8.00
11
1338244030
ref: 11
WASHER
1338244030
€ 3.50
12
0949255014
ref: 12
JET,PILOT(55)
0949255014
€ 16.50
12
0949257004
ref: 12
E24
JET,PILOT
0949257004
€ 10.50
13
1338338B80
ref: 13
NEEDLE,JET
1338338B80
€ 17.50
14
0949126011
ref: 14
JET,MAIN(130)
0949126011
€ 11.50
14
0949128010
ref: 14
E24
JET,MAIN(140)
0949128010
€ 8.50
15
1338203110
ref: 15
<-13332-44080
WASHER
1338203110
€ 2.50
16
0949400856
ref: 16
JET,NEEDLE(P-3)
0949400856
€ 37.00
17
1325223010
ref: 17
FLOAT
1325223010
€ 19.00
18
1360205A10
ref: 18
SCREW
1360205A10
€ 4.00
19
1325492311
ref: 19
PIN,FLOAT
1325492311
€ 2.00
20
0211204107
ref: 20
SCREW
0211204107
€ 3.00
21
0211204083
ref: 21
SCREW
€ 2.00
22
1337684110
ref: 22
FILTER
€ 6.50
23
1337444080
ref: 23
O-RING,NEEDLE VALVE
1337444080
€ 6.00
24
1337039A00
ref: 24
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
24
1337038E00
ref: 24
E37, P37
VALVE ASSY,NEEDLE(NI)
1337038E00
€ 67.50
25
1368104010
ref: 25
CAP
1368104010
€ 3.00
26
1341843410
ref: 26
HOLDER,GUIDE
1341843410
€ 6.50
27
1341722010
ref: 27
SPRING
1341722010
€ 3.00
28
1341101400
ref: 28
PLUNGER,STARTER
1341101400
€ 11.50
29
0949331001
ref: 29
JET,AIR(1.55)
€ 12.00
29
0949338002
ref: 29
E24
JET,AIR(1.9)
0949338002
€ 10.00
30
1348237300
ref: 30
E24
PLATE
€ 0.00
31
1348005A10
ref: 31
DIAPHRAGM ASSY
1348005A10
€ 54.50
32
1348138B40
ref: 32
SPRING
1348138B40
€ 5.50
33
0935250823600
ref: 33
L:600->175
HOSE(5X8.2X600)
0935250823600
€ 13.00
34
1369202500
ref: 34
CLIP
€ 7.00
35
1327847090
ref: 35
O RING
1327847090
€ 2.00
36
0949240018
ref: 36
JET,PILOT(40)
0949240018
€ 16.00
36
0949260012
ref: 36
E24
JET,AIR(60)
0949260012
€ 7.50
37
1360205A30
ref: 37
SCREW
1360205A30
€ 4.50
38
1355445C20
ref: 38
LEVER ASSY
1355445C20
€ 38.50
38
1355438B00
ref: 38
E24
LEVER ASSEMBLY
1355438B00
€ 38.50
39
1360573000
ref: 39
SCREW
1360573000
€ 10.50
40
1360104148
ref: 40
SCREW
1360104148
€ 2.50
41
1324713A00
ref: 41
SCREW,DRAIN
1324713A00
€ 5.50
42
1326739E50
ref: 42
ADJUSTER
1326739E50
€ 13.00
42
1326738A10
ref: 42
E24
ADJUSTER
1326738A10
€ 13.00
43
1327193011
ref: 43
SPRING
1327193011
€ 4.50
44
1324978100
ref: 44
WASHER
1324978100
€ 4.00
45
0940406432
ref: 45
<-09404-06431
CLAMP(L:65)
0940406432
€ 2.50
45
0940406433
ref: 45
E24
CLAMP(L:80)
0940406433
€ 3.00
46
0214204083
ref: 46
SCREW
0214204083
€ 1.50
47
1327737100
ref: 47
WASHER
1327737100
€ 2.00
48
1327947070
ref: 48
SCREW,PILOT
1327947070
€ 11.50
48
1327947070
ref: 48
E17, E22
SCREW,PILOT
1327947070
€ 11.50
48
1327947070
ref: 48
E24
SCREW,PILOT
1327947070
€ 11.50
49
1326847070
ref: 49
SPRING
1326847070
€ 5.00
50
1329129900
ref: 50
WASHER
1329129900
€ 2.00
51
1329529900
ref: 51
O RING,PILOT AIR SCREW
1329529900
€ 4.00
52
1344638B00
ref: 52
SPRING
€ 8.50
53
1580138B00
ref: 53
HOSE,FUEL PUMP & CARBURETOR
€ 14.50
54
0940111407
ref: 54
CLIP
0940111407
€ 2.50
55
0944014030
ref: 55
SPRING
0944014030
€ 25.00
