STARTING MOTOR

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

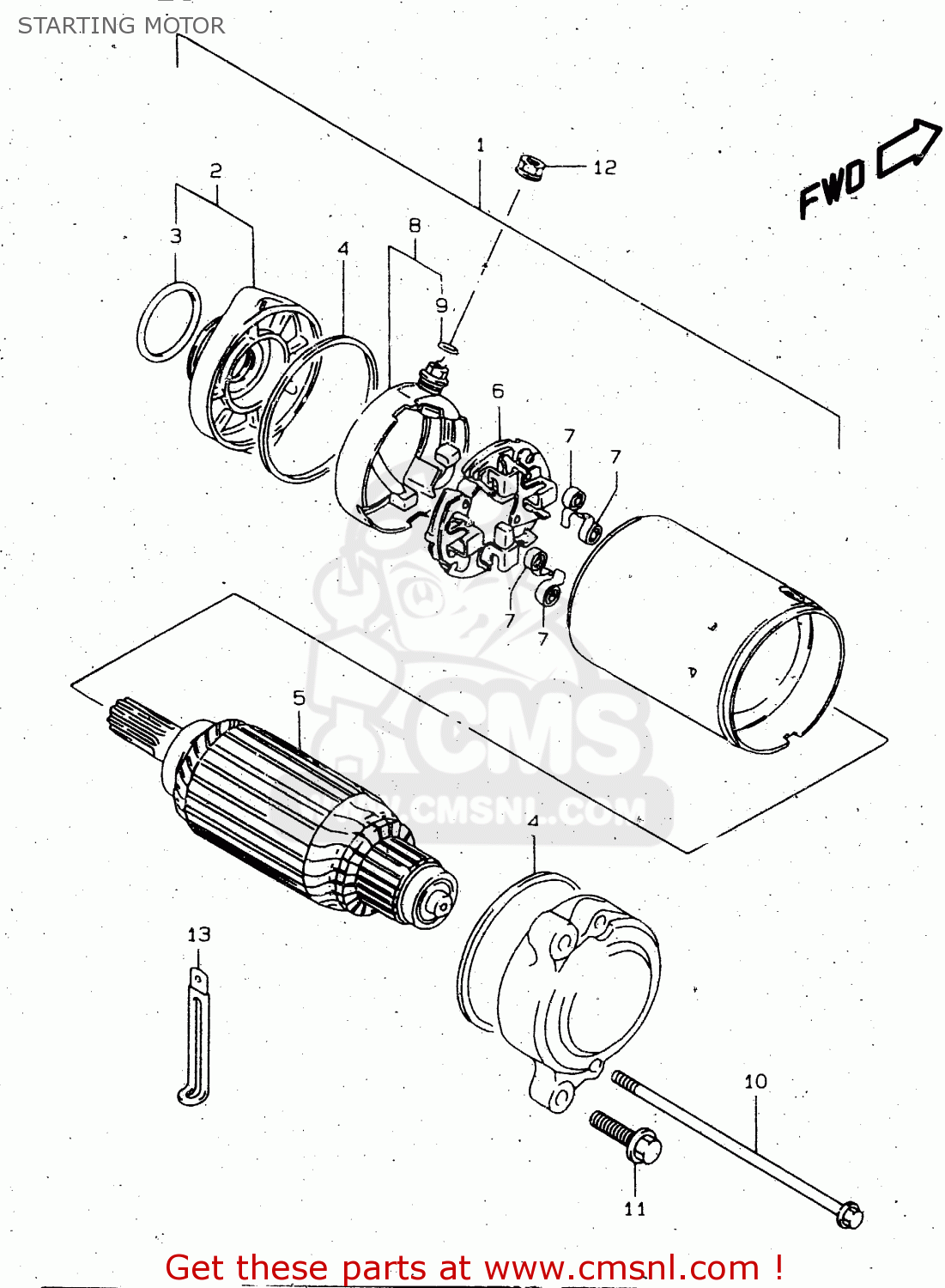

Starting motor diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

STARTING MOTOR VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

STARTING MOTOR VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3110038B01
ref: 1
MODEL T/V/W

MOTOR ASSEMBLY,STARTING

€ 1,008.00

1

3110038B02
ref: 1
MODEL X

MOTOR ASSY,STARTING

€ 1,008.00

2

3115038B00
ref: 2

BRACKET SET

€ 114.50

3

3115638B00
ref: 3

O-RING

€ 11.00

4

3126432E00
ref: 4
<-31264-31300

SQUARE RING

€ 8.50

5

3131038B01
ref: 5

ARMATURE

€ 294.50

6

3113238B00
ref: 6

HOLDER SET,BRUSH

€ 48.50

7

3113538B00
ref: 7

SPRING,BRUSH

€ 4.00

8

3113038B00
ref: 8

TERMINAL SET,BRUSH

€ 48.50

9

3114349040
ref: 9

O RING

€ 3.50

10

3128124B10
ref: 10

BOLT

€ 8.00

11

0154706257
ref: 11

BOLT

€ 2.50

12

0836135068
ref: 12

NUT

€ 2.00

13

0940406432
ref: 13
<-09404-06429

CLAMP(L:65)

€ 3.00

all assemblies
