CLUTCH

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

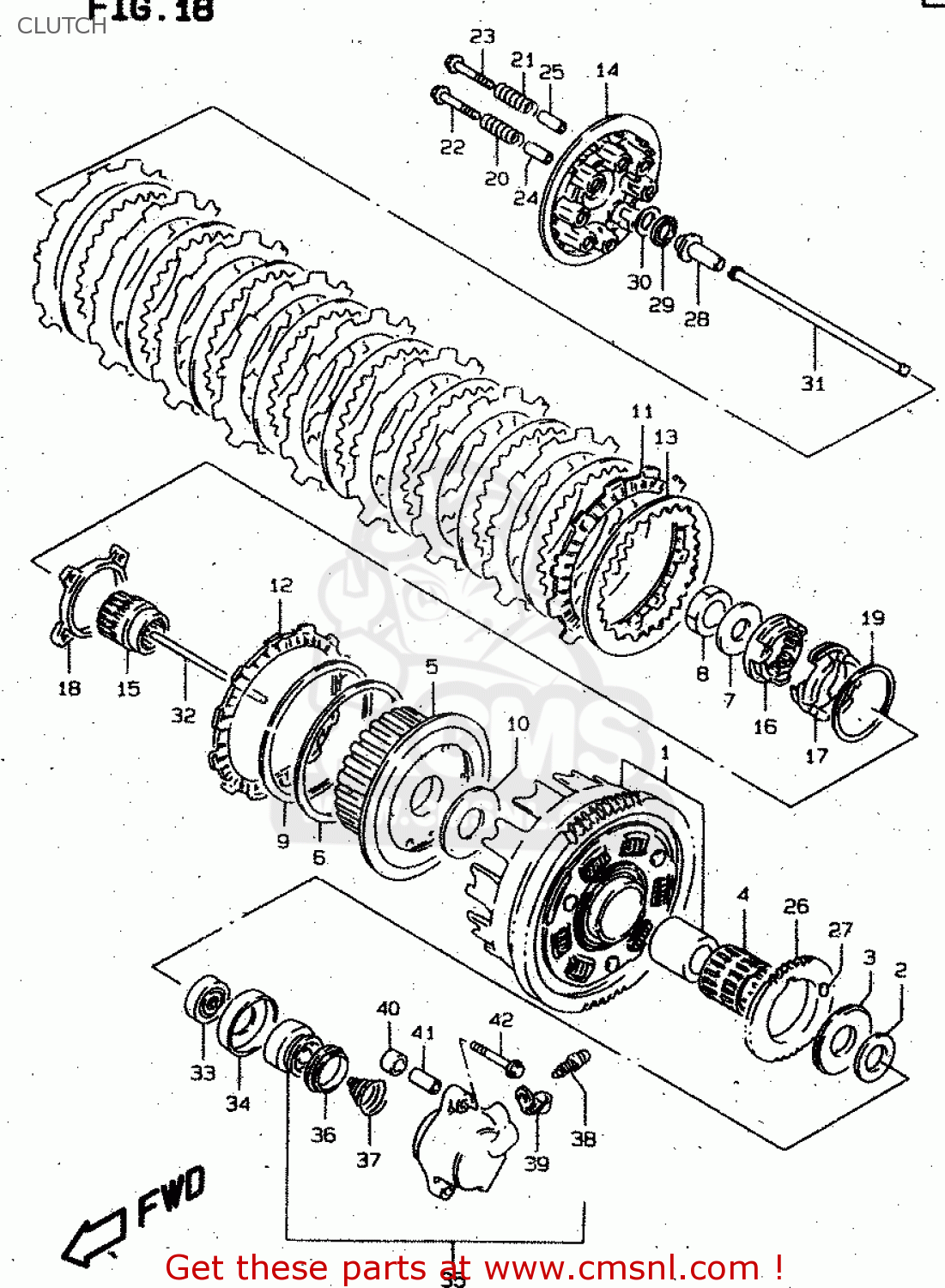

Clutch diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CLUTCH VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CLUTCH VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CLUTCH VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
2120038823
ref: 1
<-21200-38821
GEAR ASSY,PRI DRIVEN
€ 468.00
1
2120038823
ref: 1
MODEL W/X
GEAR ASSY,PRI DRIVEN
€ 468.00
2
0916025066
ref: 2
WASHER(25X38X2.5)
0916025066
€ 6.00
3
0916025067
ref: 3
MODEL T/V/W
WASHER(25X54X2.5)
0916025067
€ 9.00
3
0916025037
ref: 3
MODEL X
WASHER(25X54X2.5)
0916025037
€ 9.00
4
0926335017
ref: 4
BEARING(35X40X35.8)
0926335017
€ 36.50
5
2141038B00
ref: 5
HUB,CLUTCH SLEEVE
2141038B00
€ 136.00
6
2147137400
ref: 6
SEAT,WAVE WASHER(T:1.4)
2147137400
€ 8.00
7
0916422008
ref: 7
WASHER
€ 8.00
8
0914022011
ref: 8
NUT
0914022011
€ 9.00
9
0916400004
ref: 9
WASHER
0916400004
€ 9.00
10
0916025065
ref: 10
WASHER(25X60X2.5)
€ 15.50
11
2144112D01
ref: 11
<-21441-07A02
PLATE,CLUTCH DRIVE (NAS)
2144112D01
€ 16.50
12
2144237401
ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
2144237401
€ 11.50
13
2145105A00
ref: 13
PLATE,CLUTCH DRIVEN (NAS)
2145105A00
€ 9.00
14
2146238B00
ref: 14
DISC,CLUTCH PRESSURE
2146238B00
€ 51.50
15
2162138B00
ref: 15
SPACER,CLUTCH SLEEVE HUB
2162138B00
€ 70.00
16
2611138B03
ref: 16
<-26111-38B02
CAM,CLUTCH NO.1
2611138B03
€ 54.50
17
2611238B02
ref: 17
<-26112-38B01
CAM,CLUTCH NO.2
2611238B02
€ 70.50
18
2161338B00
ref: 18
MODEL T/V
SLIDER,CLUTCH SPRING
€ 65.50
18
2161338B01
ref: 18
MODEL W/X
SLIDER,CLUTCH SPRING
2161338B01
€ 65.50
19
0916054002
ref: 19
WASHER(54X62X1)
0916054002
€ 9.50
20
0944014021
ref: 20
SPRING
0944014021
€ 5.00
21
0944014022
ref: 21
SPRING
0944014022
€ 5.00
22
0911606135
ref: 22
BOLT(6X40)
0911606135
€ 3.00
23
0155006353
ref: 23
BOLT
0155006353
€ 2.50
24
0918006177
ref: 24
SPACER(6.4X10X22)
0918006177
€ 7.50
25
0918006276
ref: 25
<-09180-06192
SPACER(6.5X9X24.1)
0918006276
€ 6.50
26
1632138B00
ref: 26
GEAR,OIL PUMP DRIVE
1632138B00
€ 62.50
27
0926106002
ref: 27
PIN(6X6)
0926106002
€ 1.50
28
2312138B00
ref: 28
PIECE,CLUTCH PUSH
2312138B00
€ 25.00
29
0926315003
ref: 29
BEARING(15X28X2)
0926315003
€ 7.00
30
0916015045
ref: 30
WASHER(15.5X28X1)
0916015045
€ 4.00
31
2311038B00
ref: 31
ROD,CLUTCH PUSH,R
2311038B00
€ 19.00
32
2311124A01
ref: 32
ROD,CLUTCH PUSH,L
2311124A01
€ 15.00
33
0928506017
ref: 33
SEAL,OIL(6X34X11)
0928506017
€ 11.00
34
2311738A00
ref: 34
RETAINER,CL PUSH ROD OIL SEAL
2311738A00
€ 6.00
35
2316038B00
ref: 35
CYLINDER,CLUTCH RELEASE
2316038B00
€ 122.50
36
2316306B00
ref: 36
CUP
2316306B00
€ 5.50
37
2316405A00
ref: 37
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
38
5912101A00
ref: 38
BLEEDER
5912101A00
€ 8.50
39
5912201A00
ref: 39
CAP,BLEEDER
5912201A00
€ 4.50
40
0918009019
ref: 40
SPACER(9X16X11)
€ 7.50
41
0920609011
ref: 41
PIN(6.4X9X23)
0920609011
€ 7.50
42
0155006403
ref: 42
BOLT
0155006403
€ 2.00
