FUEL COCK

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

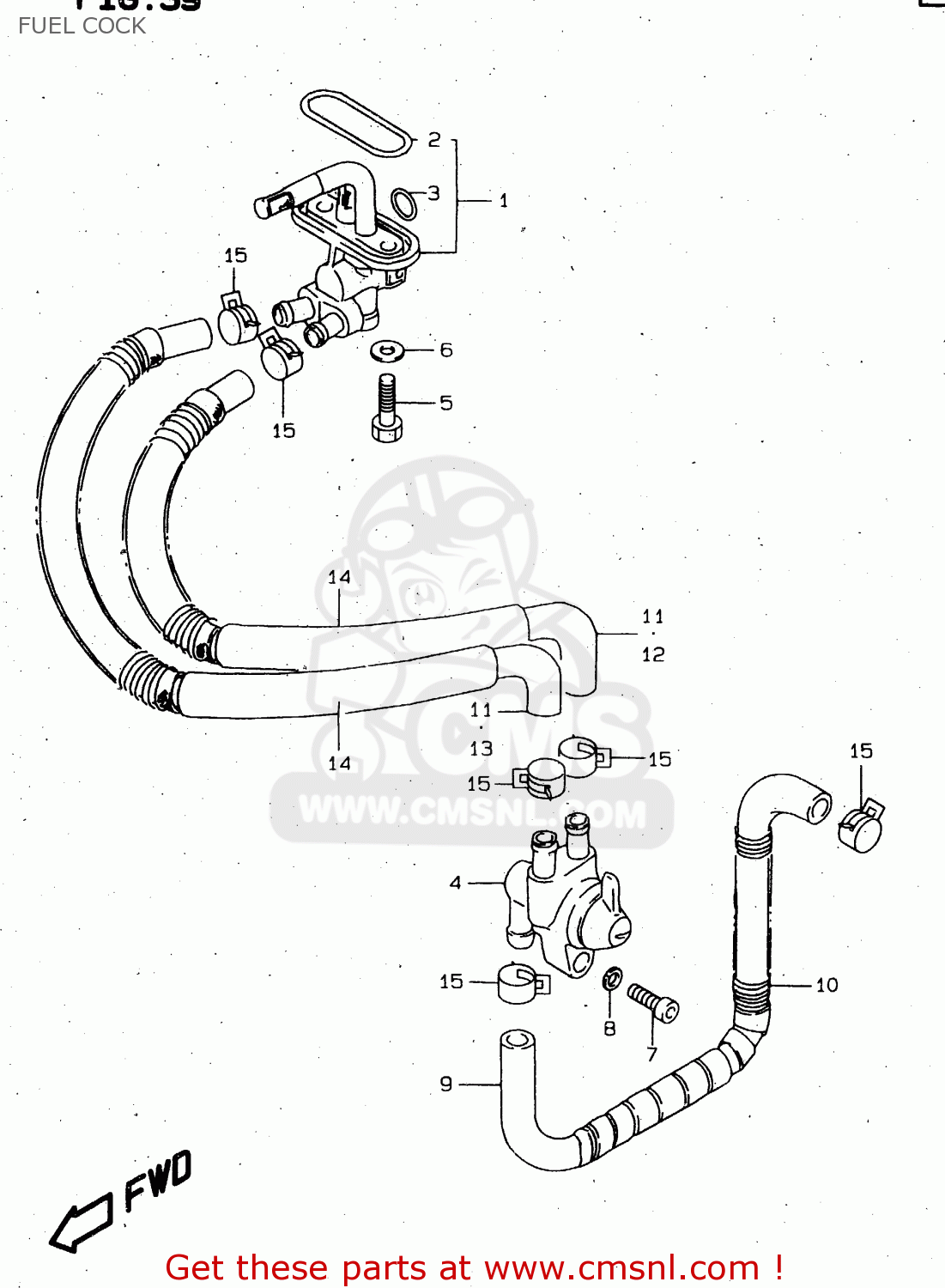

Fuel cock diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

prices are in EUR

ref

part #

description

quantity

4430038B02
ref: 1

COCK ASSY,FUEL

€ 142.00

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

4435312C01
ref: 3

O RING,LEVER

€ 7.50

4430038B12
ref: 4
MODEL T

COCK ASSEMBLY,FUEL

€ 171.50

4430038B13
ref: 4
MODEL V/W/X

COCK ASSY,FUEL

€ 171.50

0912806057
ref: 5

BOLT(6X20)

€ 2.00

0916806026
ref: 6

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0916806023
ref: 6
OPT

GASKET(5.8X13X1.2) (NAS)

€ 2.00

0713005123
ref: 7

BOLT

€ 2.50

0832101053
ref: 8

LOCK,WASHER

€ 3.00

4442038B01
ref: 9

HOSE COMP,FUEL PUMP &

€ 21.00

0944014026
ref: 10

SPRING

€ 18.00

4443038B03
ref: 11
MODEL T/V/W

HOSE,FUEL

€ 25.50

4443038B03
ref: 12
MODEL X

HOSE,FUEL

€ 25.50

4443038B12
ref: 13
MODEL X

HOSE,FUEL NO.2

€ 49.50

4431117E01
ref: 14

TUBE,FUEL HOSE

€ 17.50

0940111407
ref: 15

CLIP

€ 2.50

FUEL COCK

all assemblies
