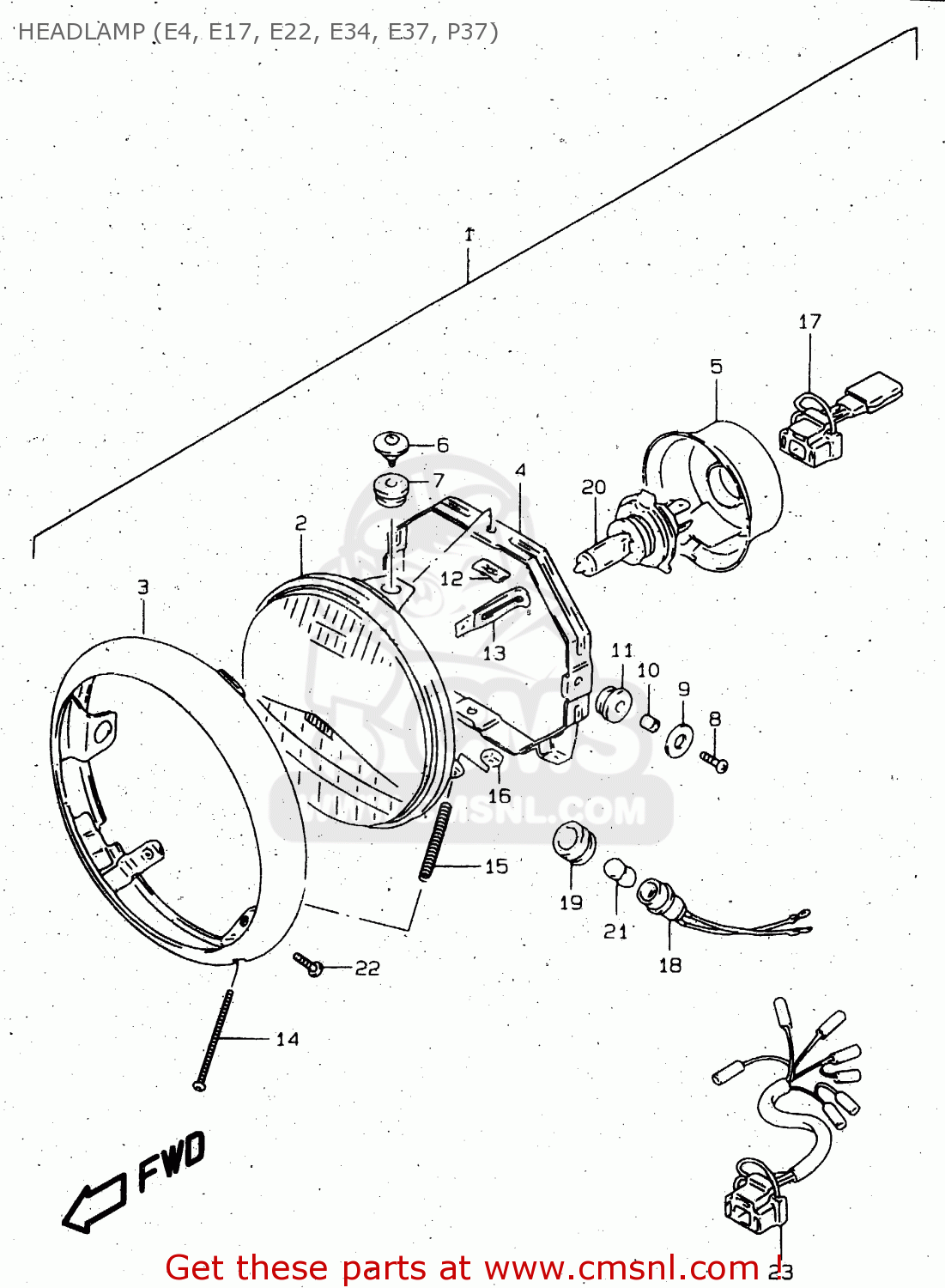

HEADLAMP (E4, E17, E22, E34, E37, P37)

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

Headlamp (e4, e17, e22, e34, e37, p37) diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

prices are in EUR

ref

part #

description

quantity

3510038A51999
ref: 1

HEADLAMP ASSY

€ 216.50

3512138A41
ref: 2

UNIT

€ 126.50

3511138A00
ref: 3

RIM

€ 27.00

3513038A00
ref: 4

RING,MOUNTING

€ 15.00

3517338A00
ref: 5

COVER,SOCKET

€ 12.50

3513638A00
ref: 6

SCREW,MOUNTING

€ 2.50

3513945230
ref: 7

CUSHION

€ 1.50

0211205163
ref: 8

SCREW

€ 2.00

0916005045
ref: 9

WASHER(5.5X18X1)

€ 2.00

3513345230
ref: 10

SPACER

€ 2.00

3513945230
ref: 11

CUSHION

€ 1.50

3515548510
ref: 12

NUT

€ 2.00

0940406432
ref: 13
<-09404-06429

CLAMP(L:65)

€ 2.50

3515138A00
ref: 14

SCREW,ADJUSTING(4X50)

€ 2.50

3515431300
ref: 15

SPRING

€ 2.00

3513545600
ref: 16

NUT

€ 3.00

3685338A00
ref: 17

SOCKET

€ 10.00

3611849320
ref: 18

SOCKET

€ 12.00

3611622630
ref: 19

JOINT,RUBBER

€ 5.00

0947112060
ref: 20

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 21

BULB(12V4W)

€ 6.00

0212205127
ref: 22

SCREW

€ 2.50

3685338B10
ref: 23

WIRE,HEADLAMP LEAD

€ 20.50
