CRANKCASE

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

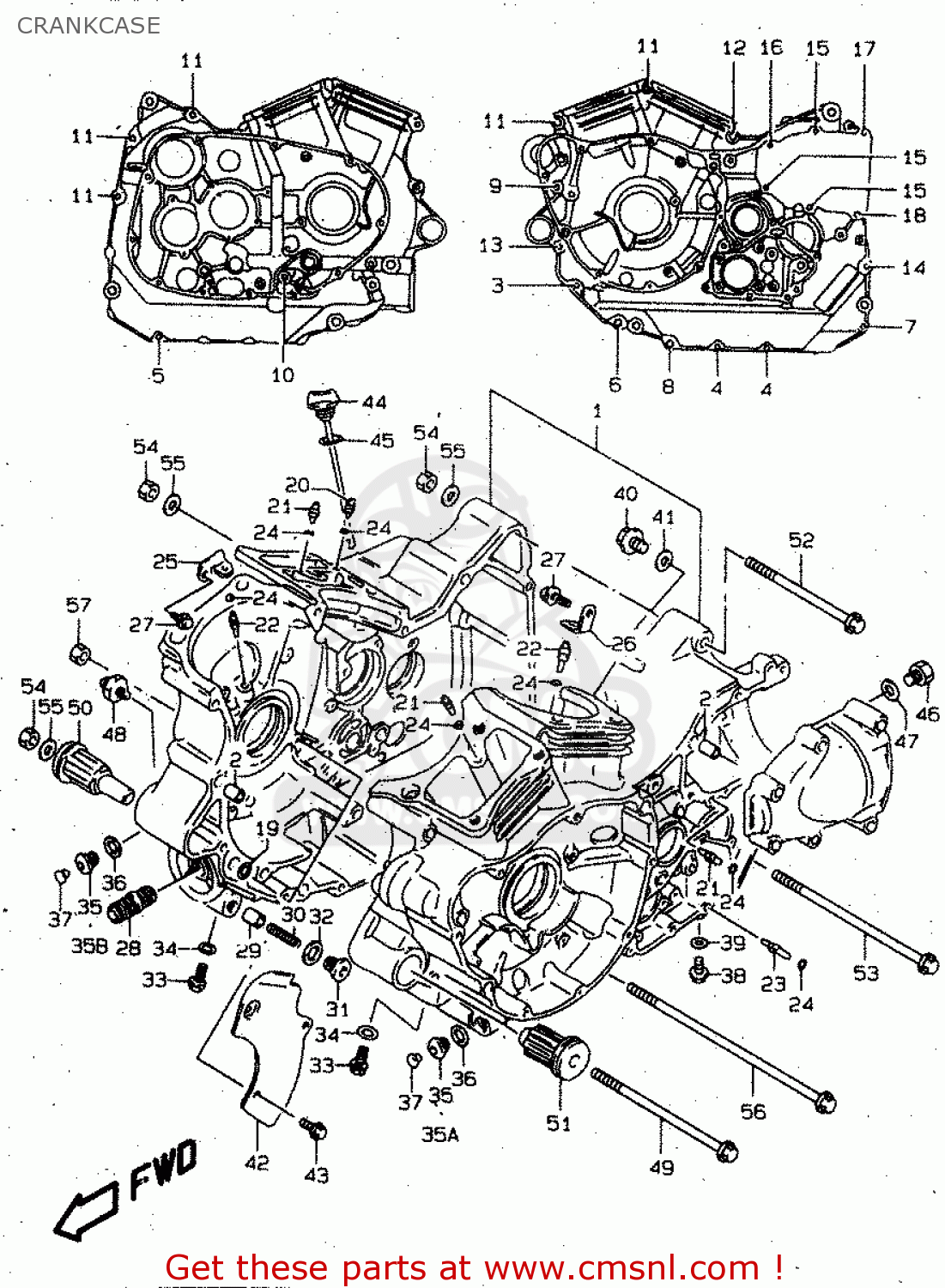

Crankcase diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CRANKCASE VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CRANKCASE VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CRANKCASE VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
1130138815
ref: 1
MODEL T/V
CRANKCASE SET
€ 3,421.50
1
1130138815
ref: 1
MODEL W, ~E.NO.17156
CRANKCASE SET
€ 3,421.50
1
1130138816
ref: 1
MODEL W, E.NO.171566
CRANKCASE SET
€ 3,421.50
1
1130138840
ref: 1
MODEL X
CRANKCASE SET
€ 2,516.00
2
0920611017
ref: 2
PIN(8.4X11X20)
0920611017
€ 6.50
3
0155006557
ref: 3
BOLT
0155006557
€ 2.50
4
0155006657
ref: 4
BOLT
0155006657
€ 3.00
5
0155006857
ref: 5
BOLT
0155006857
€ 3.50
6
0155008557
ref: 6
BOLT
0155008557
€ 3.00
7
0155008657
ref: 7
BOLT
€ 3.00
8
0910308215
ref: 8
BOLT(8X70)
€ 3.50
9
0155008907
ref: 9
BOLT
0155008907
€ 3.50
10
0910308098
ref: 10
BOLT(8X115)
0910308098
€ 3.00
11
0910308164
ref: 11
BOLT(8X95)
0910308164
€ 3.50
12
0910308214
ref: 12
BOLT(8X50)
€ 4.50
13
0910308215
ref: 13
BOLT(8X70)
€ 3.50
14
0910308216
ref: 14
BOLT(8X80)
€ 4.50
15
0155008407
ref: 15
BOLT
0155008407
€ 3.50
16
0155008507
ref: 16
BOLT
0155008507
€ 3.50
17
0155008557
ref: 17
BOLT
0155008557
€ 3.00
18
0155008657
ref: 18
BOLT
€ 3.00
19
0928012009
ref: 19
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
20
0949344002
ref: 20
JET(2.2)
€ 12.00
21
0949328010
ref: 21
JET,AIR(14)
0949328010
€ 10.50
22
0949380009
ref: 22
JET,PISTON COOLING(0.8)
€ 14.00
23
0949324011
ref: 23
JET,MISSION OIL(1.4)
€ 9.00
24
0928004004
ref: 24
O RING(D:1.2,ID:4)
0928004004
€ 2.00
25
1643838B00
ref: 25
PLATE,PISTON JET FR
€ 1.50
26
1643938B00
ref: 26
PLATE,PISTON JET RR
€ 2.00
27
0155006103
ref: 27
MODEL T/V/W
BOLT
0155006103
€ 2.50
27
0910606075
ref: 27
MODEL X
BOLT(6X12)
0910606075
€ 2.50
28
1659106B00
ref: 28
UNION,OIL STAND
1659106B00
€ 6.00
29
1644234301
ref: 29
PLUNGER,OIL CONTROLL
1644234301
€ 16.00
30
0944009030
ref: 30
SPRING
€ 3.00
31
0924816008
ref: 31
MODEL T/V
PLUG
0924816008
€ 4.00
31
0924816010
ref: 31
MODEL W/X
PLUG
0924816010
€ 4.50
32
0916816002
ref: 32
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
33
0155008127
ref: 33
BOLT
0155008127
€ 3.50
34
0916808015
ref: 34
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
35
0924814005
ref: 35
~E.NO.171565
PLUG,14X12
0924814005
€ 5.00
35A
0924814005
ref: 35A
E.NO.171566~
PLUG,14X12
0924814005
€ 5.00
35B
0924714027
ref: 35B
E.NO.171566~
PLUG(14X11.5)
€ 2.00
36
0916814002
ref: 36
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
37
0925008014
ref: 37
~E.NO.162132
CAP(OD:12)
0925008014
€ 3.50
38
0155006103
ref: 38
BOLT
0155006103
€ 2.50
39
0916806024
ref: 39
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
40
0924712006
ref: 40
PLUG(12X10)
0924712006
€ 2.50
41
0916812002
ref: 41
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
42
1152138B01
ref: 42
PLATE,OIL SEPARATOR
€ 4.00
43
0154706123
ref: 43
BOLT
0154706123
€ 2.00
44
1197038B01
ref: 44
MODEL T/V/W
GAUGE,OIL LEVEL
1197038B01
€ 17.50
44
1197038B10
ref: 44
MODEL X
GAUGE,OIL LEVEL
1197038B10
€ 20.50
45
0928017003
ref: 45
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
46
0155012203
ref: 46
~E.NO.171959
BOLT
€ 3.00
46
0924712106
ref: 46
E.NO.171960~
PLUG,12X20
0924712106
€ 2.50
47
0916812002
ref: 47
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
48
3782033D00
ref: 48
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
49
0910310169
ref: 49
BOLT(10X155)
0910310169
€ 16.00
50
1166038B00
ref: 50
BUSH,ENGINE MOUNTING,R
1166038B00
€ 33.00
51
1166038A00
ref: 51
BUSH,ENGINE MOUNTING
1166038A00
€ 29.00
52
0910310168
ref: 52
BOLT(10X135)
€ 10.50
53
0910310170
ref: 53
BOLT(10X180)
0910310170
€ 13.00
54
0915910064
ref: 54
NUT
0915910064
€ 8.50
55
0832201107
ref: 55
MODEL T
WASHER
0832201107
€ 2.50
55
0832201103
ref: 55
MODEL V/W/X
WASHER
0832201103
€ 2.50
56
0910310205
ref: 56
BOLT(10X225)
0910310205
€ 9.50
57
0915910047
ref: 57
NUT
0915910047
€ 7.50
