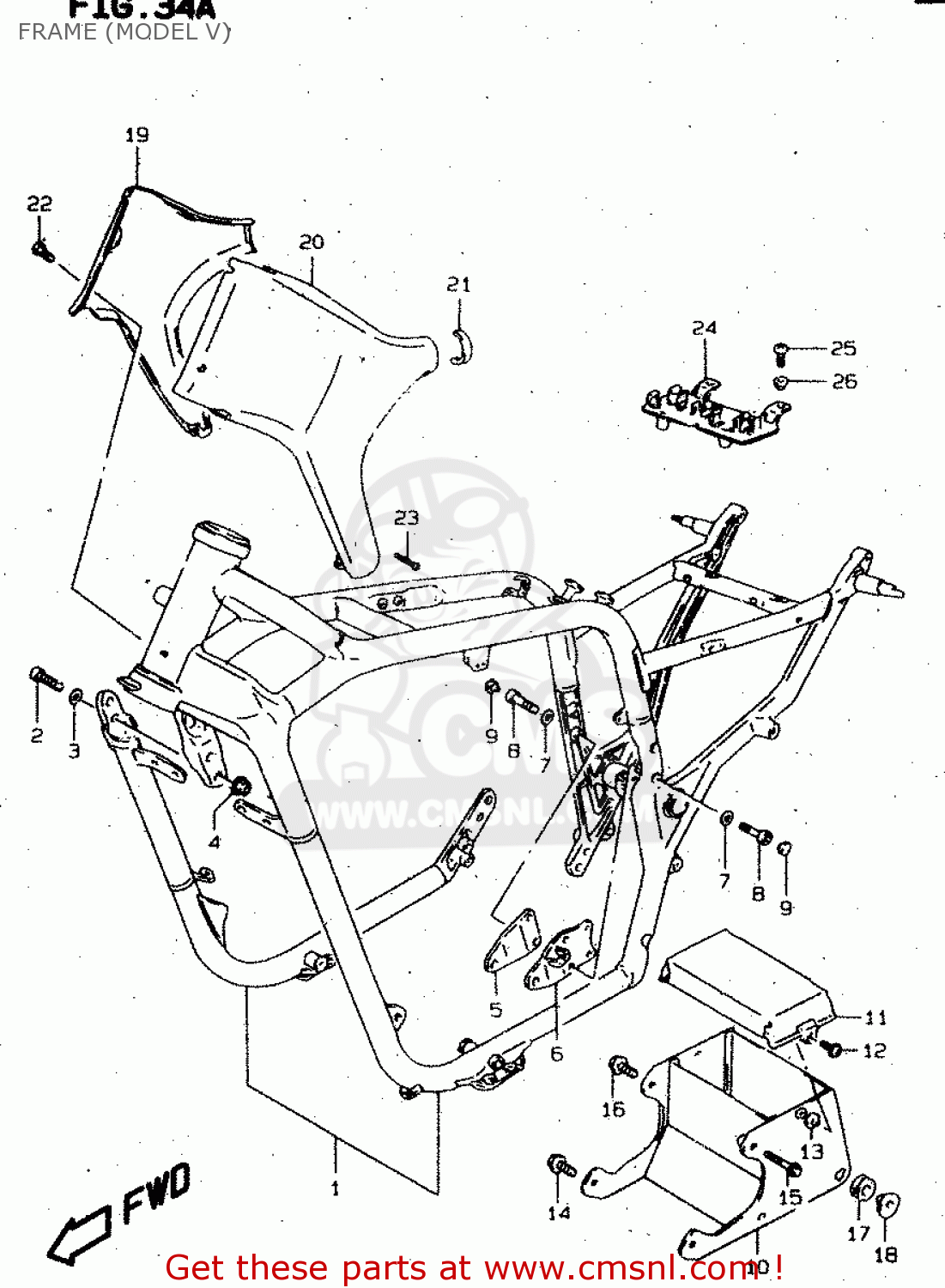

FRAME (MODEL V)

ref

part #

description

quantity

1

411013882233J
ref: 1
FOR G2E

FRAME SET

€ 1,654.00

1

411013882220F
ref: 1
FOR E6L

FRAME SET(MAROON)

€ 1,045.50

1

4110138822Y0N
ref: 1
FOR G2F

FRAME SET(BLUE)

€ 2,238.00

2

0910610019
ref: 2

BOLT(10X33)

€ 4.00

3

0916410010
ref: 3

WASHER

€ 6.50

4

0831931105
ref: 4

NUT 10MM

€ 3.00

5

4195138B0033J
ref: 5
FOR G2E

PLATE,ENG MTG NO.4,R

€ 9.50

5

4195138B0020F
ref: 5
FOR E6L

PLATE,ENG MTG NO.4,R

€ 15.00

5

4195138B00Y0N
ref: 5
FOR G2F

PLATE,ENGINE MOUNTING

€ 13.50

6

4196038B0033J
ref: 6
FOR G2E

PLATE,ENGINE MOUNT NO.4,L

€ 23.00

6

4196038B0020F
ref: 6
FOR E6L

PLATE,ENGINE MOUNT NO.4,L

€ 28.50

6

4196038B00Y0N
ref: 6
FOR G2F

PLATE COMP,ENGINE MOUNTING

€ 19.50

7

0916408015
ref: 7

WASHER

€ 3.00

8

0910608072
ref: 8

BOLT(8X32)

€ 5.00

9

0925006004
ref: 9

CAP(OD:14.5)

€ 1.50

10

4154038B01
ref: 10

HOLDER,BATTERY

€ 97.00

11

3365838B00
ref: 11

COVER,BATTERY

€ 12.00

12

0913805012
ref: 12

SCREW(5X12)

€ 2.50

13

0916905014
ref: 13

WASHER

€ 10.00

14

0155006163
ref: 14

BOLT

€ 2.50

15

0155008203
ref: 15

BOLT

€ 3.00

16

0910308222
ref: 16

BOLT(8X40)

€ 3.00

17

0932012042
ref: 17

CUSHION

€ 4.00

18

0930108009
ref: 18

BUSH

€ 6.50

19

4735038B0133J
ref: 19
FOR G2E

COVER,FRAME HEAD,R(BLACK)

€ 137.00

19

4735038B0120F
ref: 19
FOR E6L

COVER COMP,FRAME HEAD

€ 139.50

19

4735038B01Y0N
ref: 19
FOR G2F

COVER,FRAME HEAD,R(BULUE)

€ 123.50

20

4736038B1133J
ref: 20
FOR G2E

COVER,FRM.HD.,

€ 119.00

20

4736038B1120F
ref: 20
FOR E6L

COVER,FRAME HEAD,L(MAROON)

€ 109.50

20

4736038B11Y0N
ref: 20
FOR G2F

COVER COMP,FRAME HEAD

€ 116.50

21

4735938B00
ref: 21

PROTECTOR,FRAME HEAD COVER

€ 2.00

22

0214206103
ref: 22

SCREW 6X10

€ 2.00

23

0211204253
ref: 23

SCREW

€ 2.00

24

4741138B02
ref: 24

HOLDER,COUPLER

€ 11.50

25

0214206163
ref: 25

SCREW

€ 2.50

26

0916906010
ref: 26

WASHER

€ 3.00

all assemblies
