REAR SWINGING ARM

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

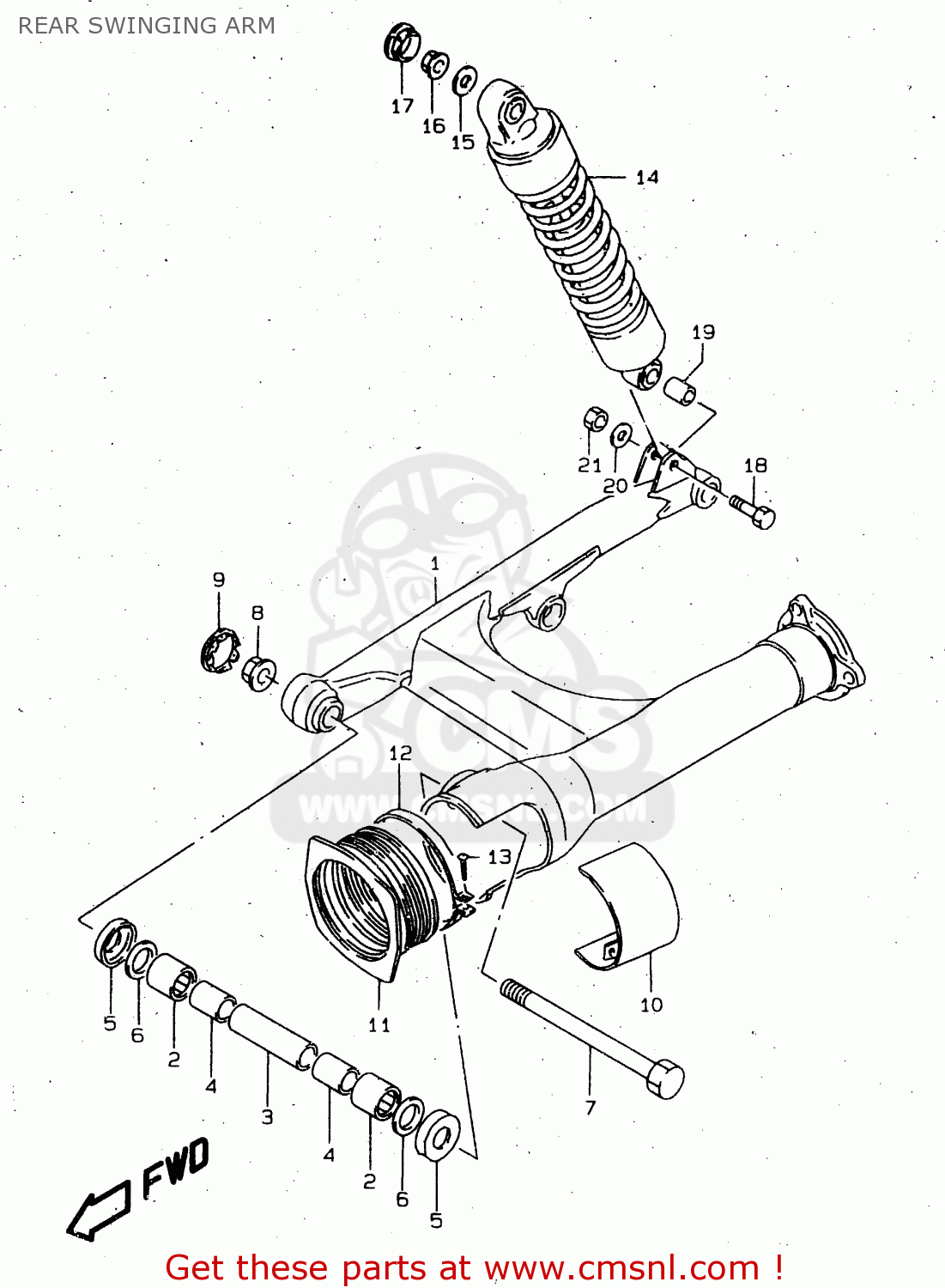

Rear swinging arm diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

REAR SWINGING ARM VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
REAR SWINGING ARM VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
REAR SWINGING ARM VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
6110038B0133J
ref: 1
MODEL T FOR E6L, E6M
SWINGINGARM,RR
€ 597.50
1
6110038B011ZV
ref: 1
MODEL T FOR E6N
SWING ARM,REAR (GREEN)
€ 597.50
1
6110038B0120F
ref: 1
MODEL V FOR E6L
SWINGINGARM,RR
€ 592.00
1
6110038B01Y0N
ref: 1
MODEL V FOR G2F
SWING ARM COMP,REAR
€ 526.00
1
6110038B01Y2D
ref: 1
MODEL W FOR J4U
SWING ARM COMP,REAR
€ 597.50
1
6110038B0122U
ref: 1
MODEL W/X FOR G2P
SWINGINGARM,RR
€ 616.50
1
6110038B0133J
ref: 1
MODEL X FOR E88
SWINGINGARM,RR
€ 597.50
1
6110038B01Y7F
ref: 1
MODEL X FOR M0J
SWING ARM COMP,REAR
€ 597.50
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
6128238B00
ref: 3
SPACER,RR SWGARM PIVOT CTR
6128238B00
€ 10.00
4
6125138B00
ref: 4
SPACER,RR SWGARM PIVOT
6125138B00
€ 14.00
5
6126214A00
ref: 5
SEAL,RR SWGARM PIVOT DUST
6126214A00
€ 7.50
6
0821116341
ref: 6
WASHER
0821116341
€ 2.00
7
6121138B00
ref: 7
SHAFT,RR SWINGINGARM PIVOT
6121138B00
€ 38.50
8
0831931148
ref: 8
NUT
0831931148
€ 9.00
9
6122238A01
ref: 9
RH
CAP,RR SWINGING ARM PIVOT,R
6122238A01
€ 6.50
10
6123038B0033J
ref: 10
MODEL T FOR E6L, E6M
COVER,RR SWGARM PIVOT,L
6123038B0033J
€ 65.00
10
6123038B001ZV
ref: 10
MODEL T FOR E6N
COVER,REAR SWING ARM PIVOT
€ 17.00
10
6123038B0020F
ref: 10
MODEL V FOR E6L
COVER,RR SWGARM PIVOT,L
6123038B0020F
€ 22.50
10
6123038B00Y0N
ref: 10
MODEL V FOR G2F
COVER COMP,REAR SWING ARM PIVOT
€ 22.50
10
6123038B00Y2D
ref: 10
MODEL W FOR J4U
COVER,REAR SWING ARM PIVOT
€ 65.00
10
6123038B0022U
ref: 10
MODEL W/X FOR G2P
COVER,RR SWGARM PIVOT,L
€ 23.50
10
6123038B0033J
ref: 10
MODEL X FOR E88
COVER,RR SWGARM PIVOT,L
6123038B0033J
€ 65.00
10
6123038B00Y7F
ref: 10
MODEL X FOR M0J
COVER COMP,REAR SWING ARM PIVOT
€ 65.00
11
6137238B00
ref: 11
BOOT,PROPELLER SHAFT
6137238B00
€ 16.50
12
0940292306
ref: 12
CLAMP
0940292306
€ 8.50
13
0321104253
ref: 13
SCREW
0321104253
€ 2.00
14
6210038B01
ref: 14
MODEL T/V
ABSORBER ASSEMBLY,REAR SHOCK
€ 436.00
14
6210038B10
ref: 14
MODEL W/X
ABSORBER ASSY,RR SHOCK
6210038B10
€ 436.00
15
0916010123
ref: 15
WASHER(10.5X20X2.3)
0916010123
€ 2.00
16
0831610103
ref: 16
NUT
0831610103
€ 2.00
17
9567224A00
ref: 17
CAP,FRAME HANDLE GRIP
9567224A00
€ 5.00
18
0910010247
ref: 18
BOLT(10X39)
0910010247
€ 4.00
19
0918010139
ref: 19
SPACER(10.2X14X20.7)
0918010139
€ 6.00
20
0916010127
ref: 20
WASHER (10.5X24X2.3)
0916010127
€ 2.00
21
0831310107
ref: 21
NUT
0831310107
€ 2.50
