CAM CHAIN

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

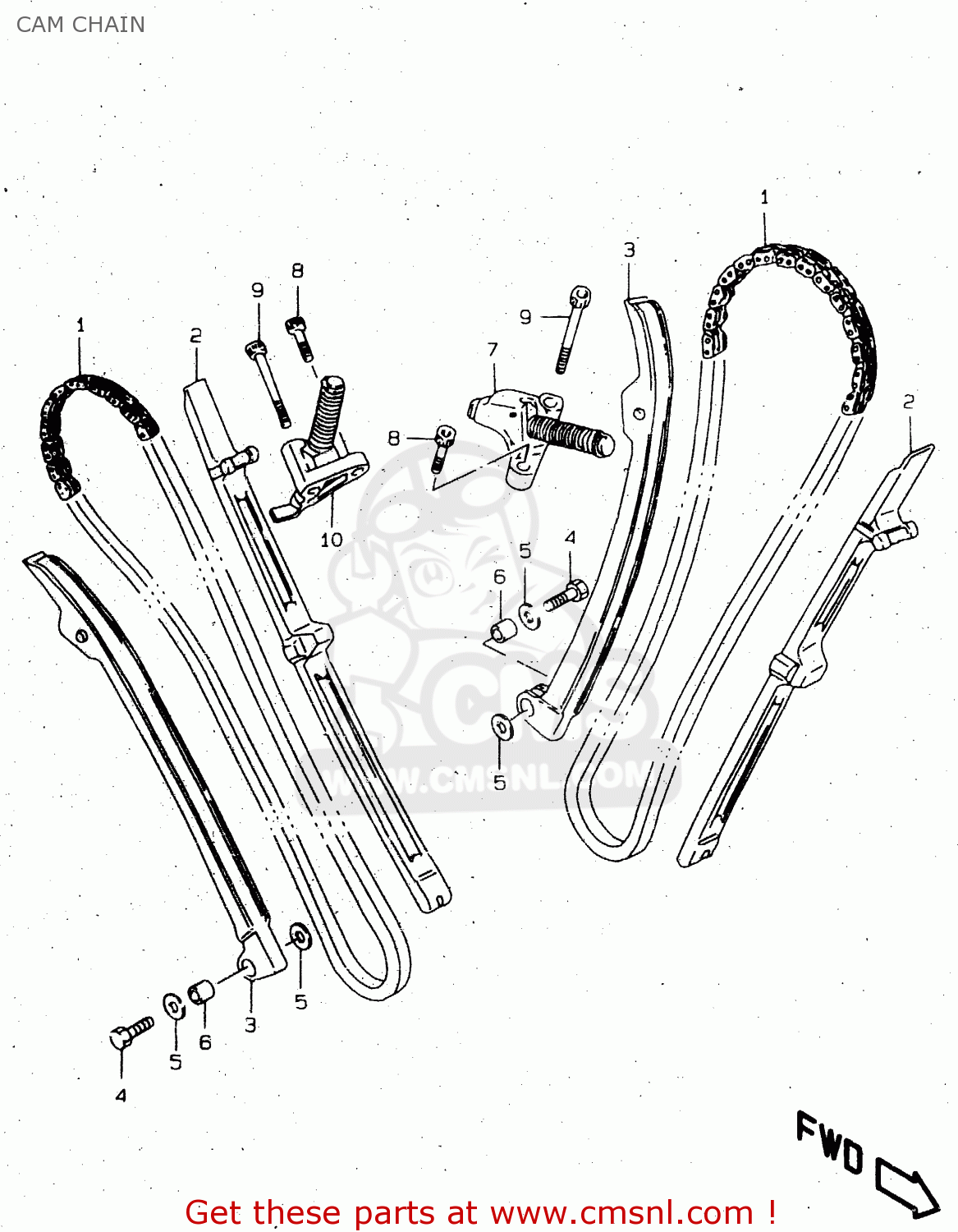

Cam chain diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CAM CHAIN VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CAM CHAIN VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1276038B00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 109.50

2

1277138B00
ref: 2

GUIDE,CAM CHAIN

€ 44.50

3

1281138B00
ref: 3

TENSIONER,CAM CHAIN

€ 43.00

4

0910006129
ref: 4

BOLT(6X26)

€ 2.00

5

0821106182
ref: 5

WASHER

€ 2.00

6

0918006184
ref: 6

SPACER(6X11X9)

€ 5.00

7

1283138A00
ref: 7

ADJUSTER ASSEMBLY,FRONT TENSIONER

€ 70.50

8

0713006203
ref: 8

BOLT,CRKCASE,R

€ 3.00

9

0713006453
ref: 9

BOLT

€ 2.50

10

1283238A00
ref: 10

ADJUSTER ASSEMBLY,REAR TENSIONER

€ 99.00
