AIR CLEANER (REAR)
VX800 1996 (T) (E04 E18 E21 E22 E25)

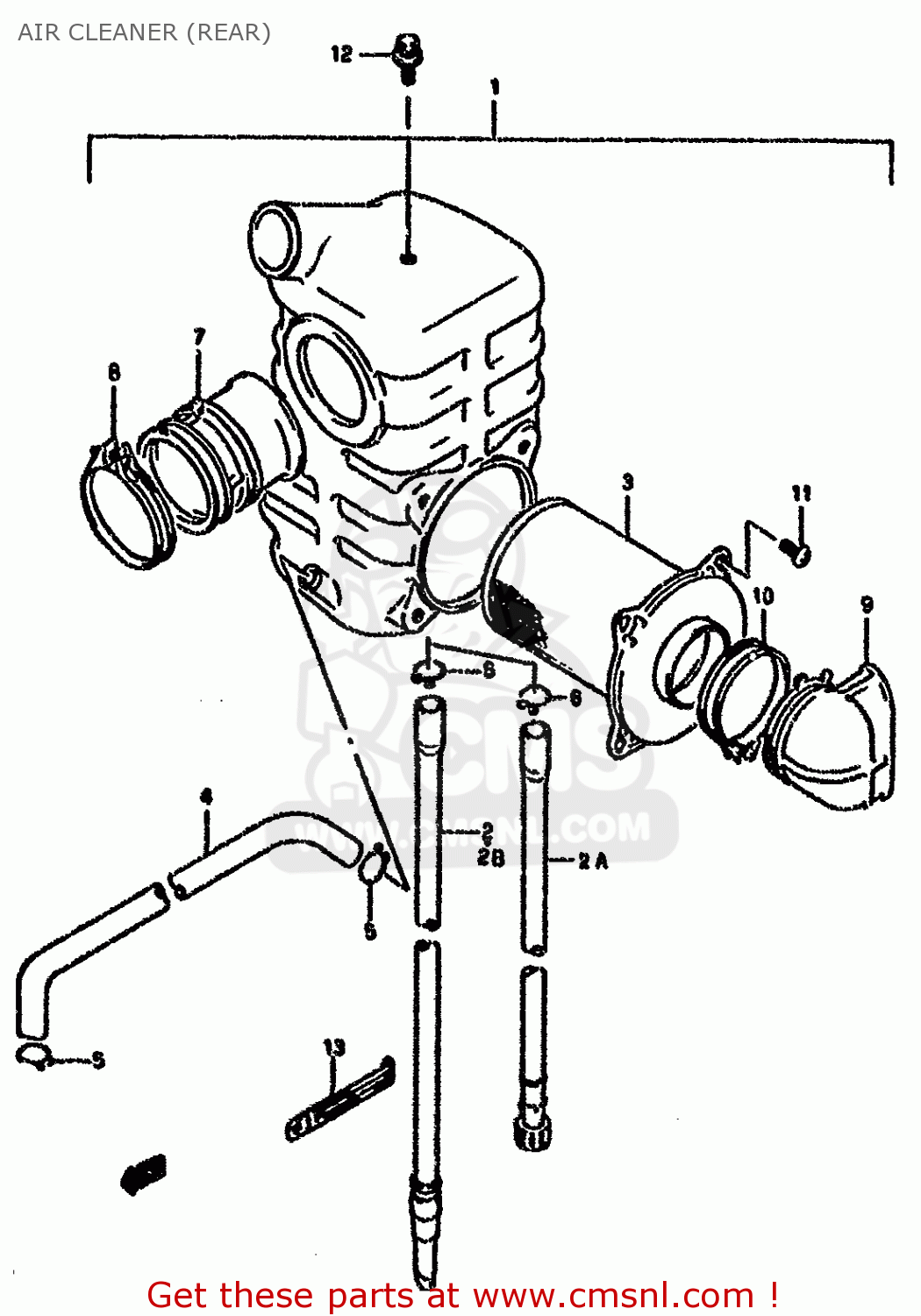

Air cleaner (rear) diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
AIR CLEANER (REAR) VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370045C50
ref: 1-1
E1,MODEL L E16
CLEANER ASSEMBLY,AIR
€ 139.50
1-2
1370045C60
ref: 1-2
E2,E4,E15,E17,E18,E2
CLEANER ASSEMBLY,AIR,REAR
€ 139.50
1-3
1370045C90
ref: 1-3
MODEL T
CLEANER ASSY,AIR REAR
€ 156.00
1-4
1370045C61
ref: 1-4
MODEL T E18
CLEANER ASSEMBLY,AIR,REAR
€ 139.50
2
1387011458
ref: 2
MODEL L/M/N/P/R
TUBE,DRAIN
€ 13.50
2A
1387011308
ref: 2A
MODEL T
TUBE,DRAIN
€ 14.00
2B
1387011458
ref: 2B
MODEL T E18
TUBE,DRAIN
€ 13.50
3-1
1378045C00
ref: 3-1
MODEL L/M/N/P/R MODE
FILTER ASSY,AIR
€ 42.00
3-2
1378045C10
ref: 3-2
MODEL L/M/N/P/R E2,E
FILTER ASSY,AIR
€ 42.00
3-3
1378045C40
ref: 3-3
MODEL T
FILTER ASSY,CLEANER
€ 43.50
3-4
1378045C10
ref: 3-4
MODEL T E18
FILTER ASSY,AIR
€ 42.00
4
1385345C50
ref: 4
TUBE,BREATHER
€ 13.00
5
0940114301
ref: 5
CLIP
€ 2.00
6
0940113409
ref: 6
-13824-00A00
CLIP
€ 2.50
7
1388145C50
ref: 7
TUBE,OUTLET
€ 20.50
8
0940258208
ref: 8
CLAMP
€ 5.50
9
1389145C01
ref: 9
-13891-45C00
TUBE,INLET
€ 21.00
10
0940256208
ref: 10
CLAMP
€ 3.50
11
0214205087
ref: 11
SCREW
€ 2.00
12-1
0117706125
ref: 12-1
MODEL L/M/N/P
BOLT
€ 2.00
12-2
0158006123
ref: 12-2
MODEL R
BOLT
€ 2.00
12-3
0155006123
ref: 12-3
MODEL T
BOLT
€ 2.50
13-1
0940410404
ref: 13-1
MODEL L/M/N/P/R
CLAMP
€ 2.50
13-2
0940410417
ref: 13-2
MODEL T
CLAMP(L:97)
€ 2.50
