CYLINDER HEAD (FRONT)

VX800 1996 (T) (E04 E18 E21 E22 E25)

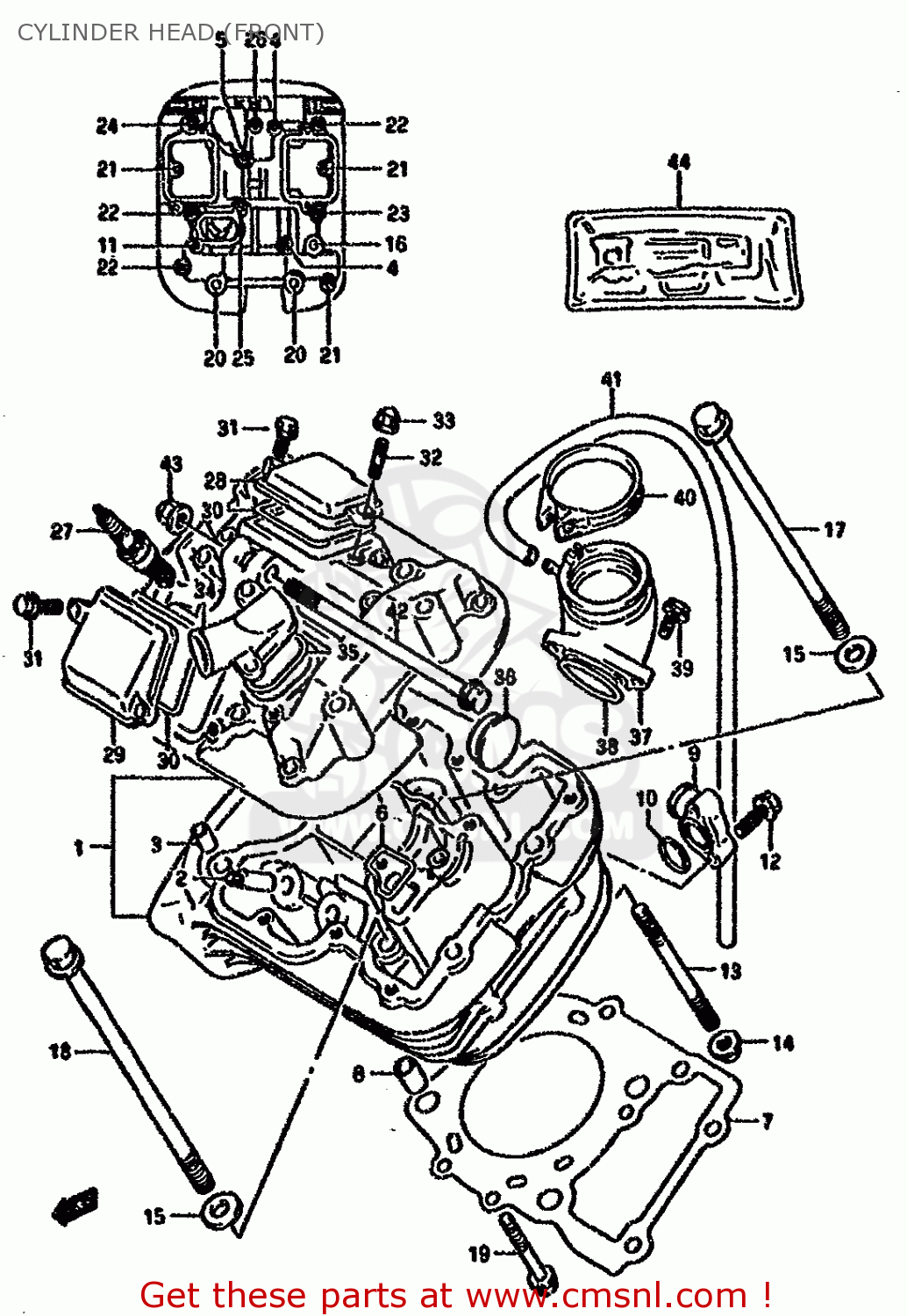

Cylinder head (front) diagram VX800 1996 (T) (E04 E18 E21 E22 E25)

CYLINDER HEAD (FRONT) VX800 1996 (T) (E04 E18 E21 E22 E25)
CYLINDER HEAD (FRONT) VX800 1996 (T) (E04 E18 E21 E22 E25)
CYLINDER HEAD (FRONT) VX800 1996 (T) (E04 E18 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
1110145C00
ref: 1-1
MODEL L/M/N/P
HEAD ASSY,CYLINDER FRONT
€ 748.00
1-2
1110145C21
ref: 1-2
MODEL R/T
HEAD ASSY,CYLINDER FRONT
€ 912.50
2
1111538A71
ref: 2
GUIDE,VALVE
1111538A71
€ 18.50
3
0920611011
ref: 3
PIN(11X14)
0920611011
€ 6.00
4-1
0910306101
ref: 4-1
MODEL L/M/N/P
BOLT(6X50)
0910306101
€ 2.00
4-2
0910306502
ref: 4-2
MODEL R/T
BOLT (6X50)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
0910306102
€ 2.50
6
1112338A00
ref: 6
GASKET,CYLINDER HEAD WATER (NAS)
1112338A00
€ 2.50
7
1114145C00
ref: 7
GASKET,CYLINDER HEAD FR (NAS)
1114145C00
€ 51.50
8
0421113189
ref: 8
PIN
0421113189
€ 2.50
9
1116945C10
ref: 9
-11169-45C00
UNION,CYLINDER HEAD WATER
€ 28.50
10
0928018004
ref: 10
O RING(D:2.4,ID:17.8)
0928018004
€ 5.50
11-1
0155006207
ref: 11-1
MODEL L/M/N/P
BOLT
0155006207
€ 2.50
11-2
0155006203
ref: 11-2
MODEL R/T
BOLT
0155006203
€ 2.50
12-1
0154706257
ref: 12-1
MODEL L/M/N/P
BOLT
0154706257
€ 2.50
12-2
0154706253
ref: 12-2
MODEL R/T
SCREW
0154706253
€ 2.50
13
0910808144
ref: 13
BOLT,STUD
0910808144
€ 4.50
14-1
0831610087
ref: 14-1
MODEL L/M/N/P
NUT
0831610087
€ 2.50
14-2
0831610083
ref: 14-2
MODEL R/T
NUT
0831610083
€ 3.00
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
0916010039
€ 2.50
16-1
0910308040
ref: 16-1
MODEL L/M/N/P
BOLT(8X140)
0910308040
€ 4.00
16-2
0910308502
ref: 16-2
MODEL R/T
BOLT (8X140)
€ 3.00
17
0910310133
ref: 17
BOLT(10X155)
0910310133
€ 7.50
18
0910310134
ref: 18
BOLT(10X165)
0910310134
€ 7.50
19-1
0155006407
ref: 19-1
MODEL L/M/N/P
BOLT
0155006407
€ 2.50
19-2
0155006403
ref: 19-2
MODEL R/T
BOLT
0155006403
€ 2.00
20
0910308501
ref: 20
BOLT 8X235
€ 9.00
21-1
0155006257
ref: 21-1
MODEL L/M/N/P
BOLT
0155006257
€ 2.50
21-2
0155006253
ref: 21-2
MODEL R/T
BOLT
0155006253
€ 2.50
22-1
0155006307
ref: 22-1
MODEL L/M/N/P
BOLT
0155006307
€ 2.00
22-2
0155006303
ref: 22-2
MODEL R/T
BOLT
0155006303
€ 2.50
23-1
0712006307
ref: 23-1
MODEL L/M/N/P
BOLT
0712006307
€ 2.50
23-2
0712006303
ref: 23-2
MODEL R/T
BOLT
0712006303
€ 3.00
24-1
0155006407
ref: 24-1
MODEL L/M/N/P
BOLT
0155006407
€ 2.50
24-2
0155006403
ref: 24-2
MODEL R/T
BOLT
0155006403
€ 2.00
25
0910306102
ref: 25
BOLT(6X55)
0910306102
€ 2.50
26-1
0910306101
ref: 26-1
MODEL L/M/N/P
BOLT(6X50)
0910306101
€ 2.00
26-2
0910306502
ref: 26-2
MODEL R/T
BOLT (6X50)
€ 2.00
27-1
0948200334
ref: 27-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
27-2
0948200335111
ref: 27-2
SPARK PLUG X24EPR-U9
€ 4.00
27-3
0948200354
ref: 27-3
OPT
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
27-4
0948200355111
ref: 27-4
OPT
SPARK PLUG X22EPR-U9
€ 4.00
27-5
0948200330
ref: 27-5
OPT
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
27-6
0948200331111
ref: 27-6
OPT
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
28-1
1117545C00
ref: 28-1
MODEL L/M/N
CAP,INSPECTION,INTAKE
€ 10.00
28-2
1117538A10
ref: 28-2
MODEL P/R/T
CAP,INSP.INT
1117538A10
€ 14.50
29-1
1117645C00
ref: 29-1
MODEL L/M/N
CAP,INSPECTION,EXHAUST
€ 14.50
29-2
1117638A10
ref: 29-2
MODEL P/R/T
CAP,INSPECTION,EXHAUST
€ 14.50
30
1117738A00
ref: 30
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
31-1
0154706207
ref: 31-1
MODEL L/M/N/P
BOLT
0154706207
€ 2.50
31-2
0154706203
ref: 31-2
MODEL R/T
SCREW
0154706203
€ 2.50
32
0142106168
ref: 32
STUD 6X16
0142106168
€ 2.00
33-1
0831320067
ref: 33-1
MODEL L/M/N/P
NUT
0831320067
€ 2.00
33-2
0831320063
ref: 33-2
MODEL R/T
NUT
0831320063
€ 2.00
34-1
1118145C00
ref: 34-1
MODEL L/M/N
UNION,WATER OUTLET
€ 33.00
34-2
1118145C10
ref: 34-2
MODEL P/R/T
UNION,WATER OUTLET
1118145C10
€ 33.00
35
1118238A00
ref: 35
GASKET,WATER OUTLET UNION (NAS)
1118238A00
€ 2.00
36
0924130004
ref: 36
PLUG(OD:30)
0924130004
€ 6.50
37-1
1311045C00
ref: 37-1
MODEL L/M/N/P/R
PIPE,INTAKE
1311045C00
€ 98.00
37-2
1311045C01
ref: 37-2
MODEL T
PIPE COMP,INTAKE,FRONT
€ 98.00
38
0928040003
ref: 38
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
39
0155006163
ref: 39
BOLT
0155006163
€ 2.50
40
0940252501
ref: 40
-13170-05A00
CLAMP
0940252501
€ 9.00
41
093525090300B
ref: 41
L:2000-730
HOSE(5X9X2000)
€ 28.50
42
0910308268
ref: 42
BOLT,ENGINE MOUNTING (8X150)
0910308268
€ 4.50
43-1
0915908064
ref: 43-1
MODEL L/M/N/P
NUT (8MM)
€ 7.00
43-2
0915908074
ref: 43-2
MODEL R/T
NUT
0915908074
€ 7.00
44-1
1140245814
ref: 44-1
GASKET SET (NAS)
€ 272.50
44-2
1140245823
ref: 44-2
E18
GASKET SET
€ 203.50
