HEADLAMP HOUSING (MODEL R/T)

VX800 1996 (T) (E04 E18 E21 E22 E25)

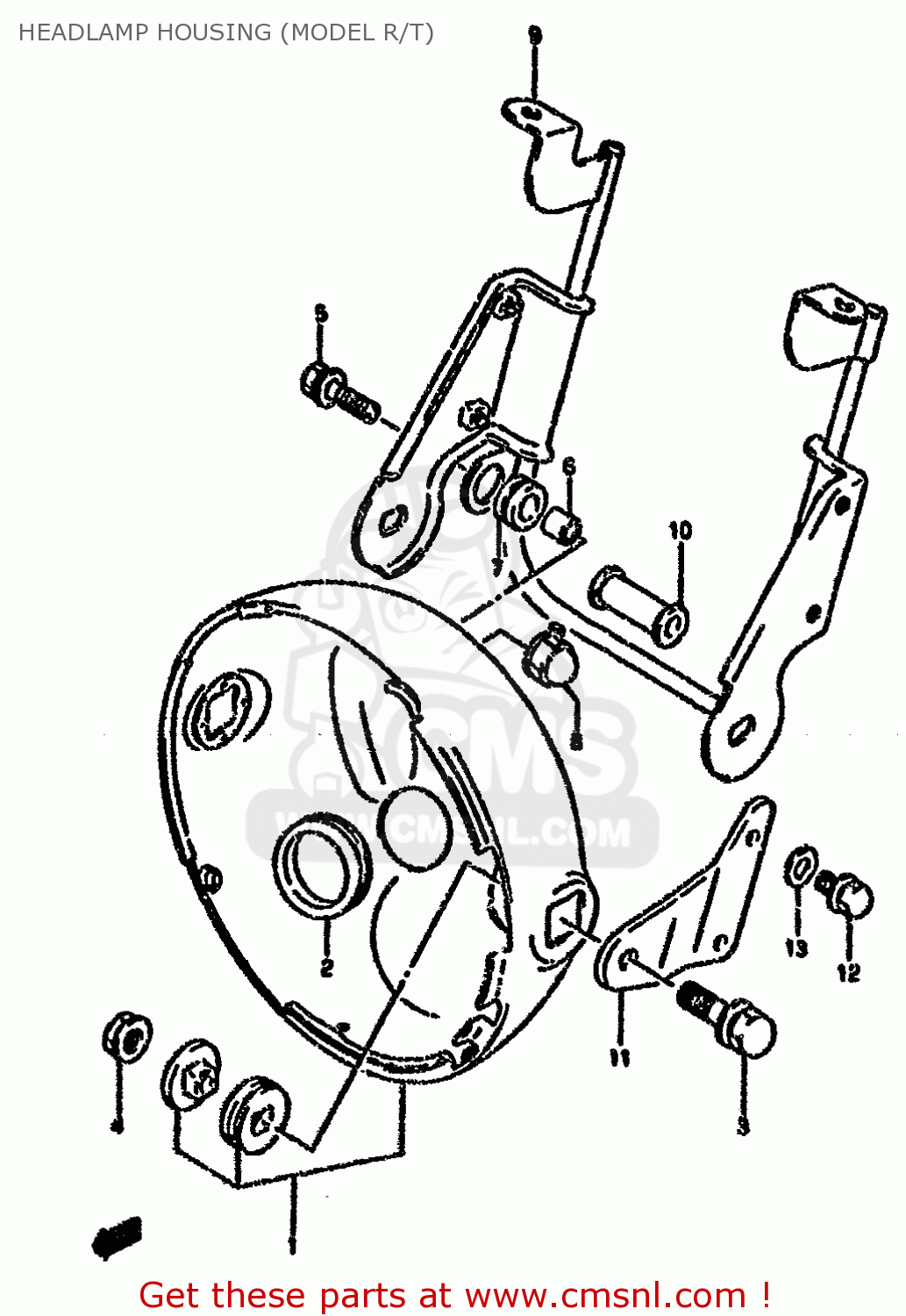

Headlamp housing (model r/t) diagram VX800 1996 (T) (E04 E18 E21 E22 E25)

HEADLAMP HOUSING (MODEL R/T) VX800 1996 (T) (E04 E18 E21 E22 E25)
HEADLAMP HOUSING (MODEL R/T) VX800 1996 (T) (E04 E18 E21 E22 E25)
HEADLAMP HOUSING (MODEL R/T) VX800 1996 (T) (E04 E18 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
5181001D11
ref: 1
HOUSING,HEADLAMP
5181001D11
€ 124.00
2
5181701D00
ref: 2
GROMMET
5181701D00
€ 4.50
3
0124408307
ref: 3
BOLT
0124408307
€ 4.00
4
0831610083
ref: 4
NUT
0831610083
€ 3.00
5
0911806007
ref: 5
BOLT
0911806007
€ 3.00
6
0918007004
ref: 6
SPACER(6.5X10.5X12)
0918007004
€ 2.50
7
0932010015
ref: 7
CUSHION
0932010015
€ 2.50
8
5181506C00
ref: 8
PLATE,HEADLAMP
5181506C00
€ 5.00
9
5158045C00
ref: 9
BRACKET,HEADLAMP
5158045C00
€ 66.00
10
0932008022
ref: 10
CUSHION
0932008022
€ 3.50
11-1
5185101D11
ref: 11-1
STAY,HEADLAMP HOUSING,R
5185101D11
€ 29.00
11-2
5186101D11
ref: 11-2
STAY,HEADLAMP HOUSING,L
5186101D11
€ 29.00
12
0154706127
ref: 12
BOLT
0154706127
€ 2.00
13
0832201067
ref: 13
WASHER
0832201067
€ 2.00
10
0832201067
ref: 10
WASHER
0832201067
€ 2.00
11
0123406258
ref: 11
BOLT
0123406258
€ 1.50
12
0916006006
ref: 12
WASHER
0916006006
€ 2.00
13
0918007004
ref: 13
SPACER(6.5X10.5X12)
0918007004
€ 2.50
14
0932010015
ref: 14
CUSHION
0932010015
€ 2.50
15
5181506C00
ref: 15
PLATE,HEADLAMP
5181506C00
€ 5.00
