MUFFLER
VX800 1996 (T) (E04 E18 E21 E22 E25)

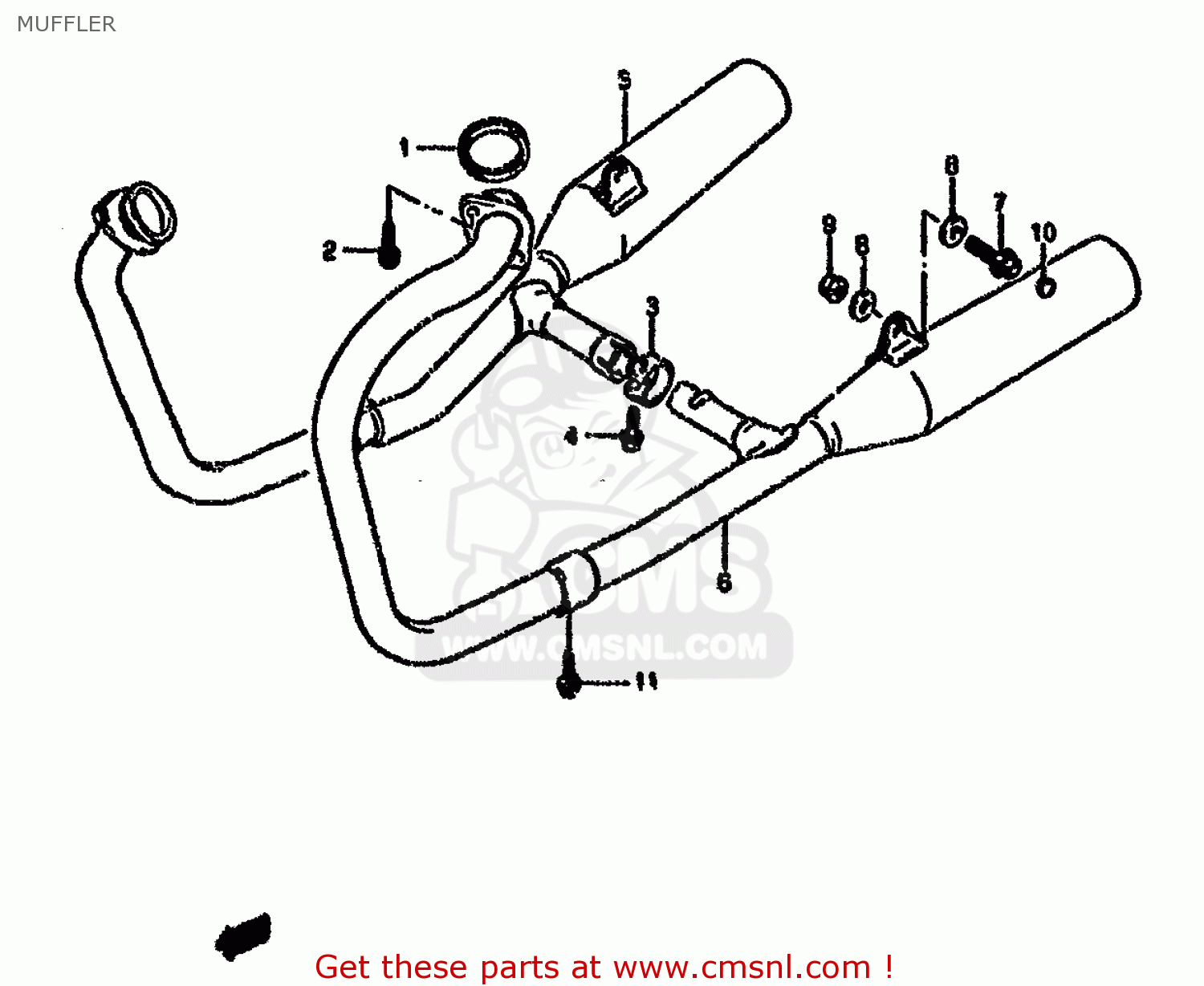

Muffler diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
MUFFLER VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1
1418145C00
ref: 1
-14181-38A00-14181-3
GASKET,EXHAUST PIPE (NAS)
€ 6.50
2-1
0910608104
ref: 2-1
MODEL L/M/N
BOLT
€ 5.00
2-2
0713008257
ref: 2-2
MODEL P/R/T
BOLT
€ 3.50
3
1445945C00
ref: 3
CLAMP,MUFFLER JOINT
€ 17.00
4-1
0151708357
ref: 4-1
MODEL L/M/N/P
BOLT
€ 3.50
4-2
0155008353
ref: 4-2
MODEL R/T
BOLT
€ 3.50
5-1
1430545C00
ref: 5-1
-14305-45C51
MUFFLER,RH
€ 722.00
5-2
1430545C10
ref: 5-2
E2,E4,E15,E18,E21,E2
MUFFLER,RH
€ 582.00
5-3
1430545C61
ref: 5-3
MODEL P/R
MUFFLER,RH
€ 582.00
5-4
1430545C71
ref: 5-4
MODEL T
MUFFLER,RH
€ 543.50
6-1
1430645C00
ref: 6-1
MODEL L/M,-14306-45C
MUFFLER,LH
€ 0.00
6-2
1430645C51H01
ref: 6-2
MODEL N,-14306-45C50
MUFFLER,LH
€ 0.00
6-3
1430645C10
ref: 6-3
MODEL L/M E2,E4,E15,
MUFFLER,LH
€ 613.50
6-4
1430645C60
ref: 6-4
MODEL N E2,E4,E15,E1
MUFFLER,LH
€ 613.50
6-5
1430645C60
ref: 6-5
MODEL P/R
MUFFLER,LH
€ 613.50
6-6
1430645C70
ref: 6-6
MODEL T
MUFFLER,LH
€ 578.50
7
0712010407
ref: 7
BOLT
€ 4.50
8
0916010101
ref: 8
WASHER
€ 2.00
9
0831620103
ref: 9
NUT
€ 3.50
10
0925008012
ref: 10
MODEL L/M/N/P/R
CAP(OD:12)
€ 2.00
11
0154706107
ref: 11
MODEL T
BOLT
€ 1.50
