GEAR SHIFTING
VX800 1996 (T) (E04 E18 E21 E22 E25)

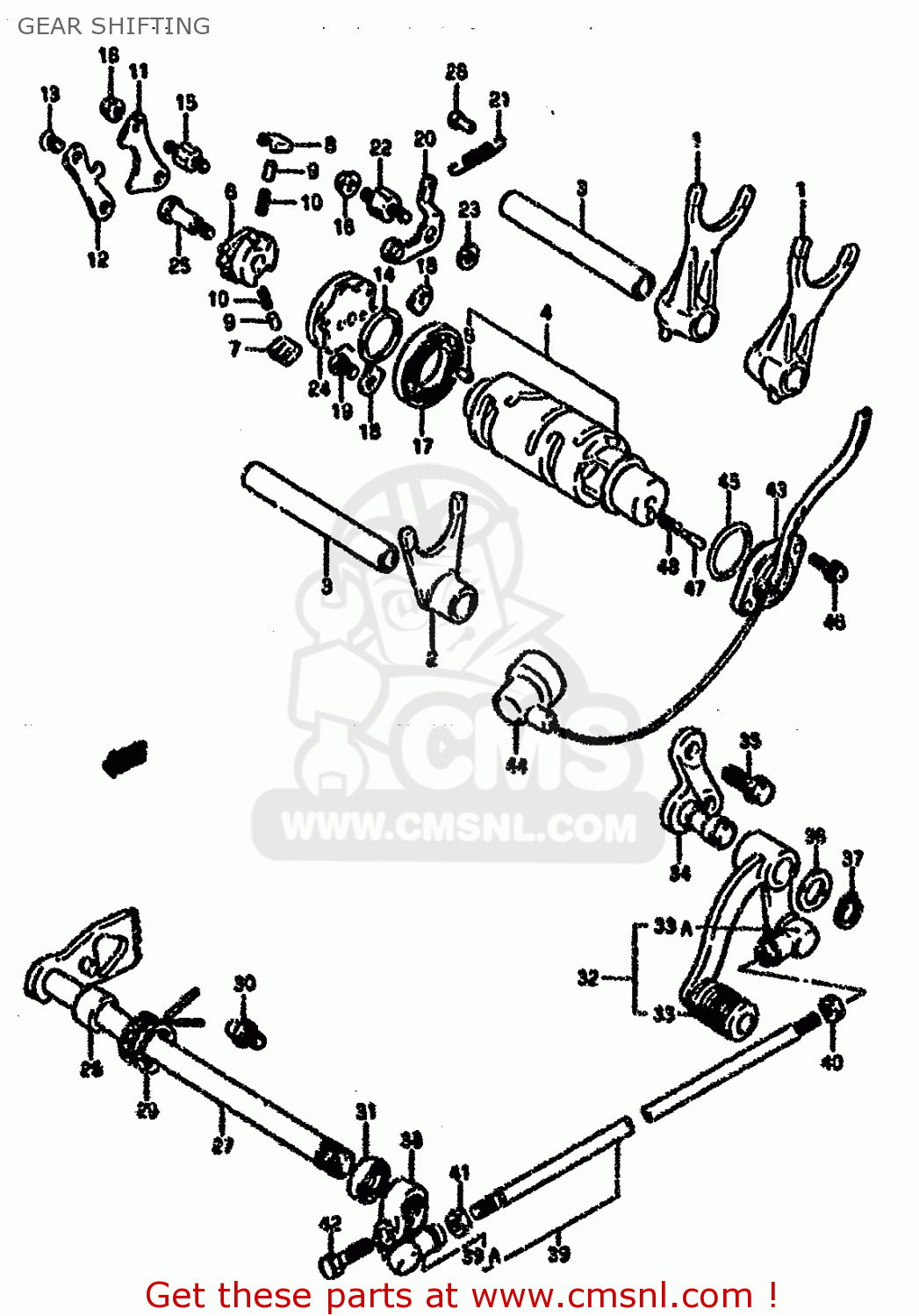

Gear shifting diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
GEAR SHIFTING VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1
2521138A02
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
2
2522138A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 79.00
3
2541138A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:115)
€ 17.00
4
2531038A03
ref: 4
CAM,GEAR SHIFT
€ 146.00
5
0422104089
ref: 5
PIN
€ 1.50
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533138A00
ref: 11
LIFTER,GEAR SHIFT POLE
€ 4.50
12
2534138A00
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
0212206123
ref: 13
SCREW
€ 3.00
14
0916025059
ref: 14
WASHER(25X32X3)
€ 5.00
15
2533238A00
ref: 15
BOSS,SHIFT PAWL LIFTER
€ 3.50
16-1
0915906017
ref: 16-1
MODEL L/M/N/P
NUT
€ 2.50
16-2
0831610063
ref: 16-2
MODEL R/T
NUT
€ 2.50
17-1
0926225002
ref: 17-1
MODEL L/M/N/P
BEARING
€ 24.00
17-2
0926225006
ref: 17-2
MODEL R/T
BEARING(25X47X8)
€ 24.00
18
2474121A00
ref: 18
-24741-20A10
RETAINER
€ 2.00
19
0211206123
ref: 19
SCREW
€ 1.50
20
2535038A00
ref: 20
STOPPER,GEAR SHIFT CAM
€ 9.00
21
0944308051
ref: 21
SPRING,SHIFT CAM STOPPER
€ 2.50
22
2535538A00
ref: 22
SUPPORT,CAM STOPPER ARM
€ 5.50
23
0821106141
ref: 23
WASHER
€ 2.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
€ 15.00
25
2531238A00
ref: 25
PIN,SHIFT CAM DRIVEN GEAR
€ 4.00
26
0922304001
ref: 26
RIVET
€ 1.50
27
2551038A00
ref: 27
SHAFT,GEAR SHIFT
€ 66.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
€ 3.00
29
0944426013
ref: 29
-09444-26012
SPRING
€ 3.50
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0928512002
ref: 31
OIL SEAL
€ 7.00
32
2560045C03
ref: 32
-25600-45C02
LEVER ASSY,GEAR SHIFT
€ 124.50
33
2565220C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 8.00
33A
2552647000
ref: 33A
COVER,DUST
€ 3.50
34
2568045C01
ref: 34
BRACKET,GEAR SHIFT LEVER
€ 62.50
35-1
0155008203
ref: 35-1
MODEL L/M/N
BOLT
€ 3.00
35-2
0180708185
ref: 35-2
MODEL P
BOLT
€ 3.00
35-3
0181008203
ref: 35-3
MODEL R
BOLT
€ 3.00
35-4
0155008203
ref: 35-4
MODEL T
BOLT
€ 3.00
36
0916012011
ref: 36
WASHER(12.5X20X1)
€ 1.50
37
0833131126
ref: 37
CIRCLIP,12 MM
€ 2.00
38
2552045C00
ref: 38
ARM,GEAR SHIFT LINK
€ 52.50
39-1
2552545C00
ref: 39-1
MODEL L/M/N/P/R
ROD,GEAR SHIFT LINK
€ 25.50
39-2
2552545C10
ref: 39-2
MODEL T
ROD,GEAR SHIFT LINK
€ 25.50
39A
2552647000
ref: 39A
COVER,DUST
€ 3.50
40
0914006011
ref: 40
NUT
€ 1.50
41
0831000067
ref: 41
NUT
€ 2.50
42
0150006203
ref: 42
BOLT
€ 2.00
43-1
3772045C00
ref: 43-1
MODEL L/M/N/P/R
BASE ASSY,NEUTRAL SW
€ 49.00
43-2
3772045C10
ref: 43-2
MODEL T
BODY,SWITCH
€ 58.00
43-3
3772045C00
ref: 43-3
MODEL T E18
BASE ASSY,NEUTRAL SW
€ 49.00
44
3661843410
ref: 44
CAP,OIL PRESSURE SWITCH
€ 2.50
45
0928026005
ref: 45
O RING(D:2.4,ID:26.2)
€ 2.50
46-1
0211275163
ref: 46-1
SCREW
€ 2.50
46-2
0211275203
ref: 46-2
MODEL T E4,E21,E22,E
SCREW
€ 3.00
47
0920905011
ref: 47
PIN(5X15.5)
€ 2.00
48
0944004010
ref: 48
SPRING
€ 1.50
