VX800 1996 (T) (E04 E18 E21 E22 E25)

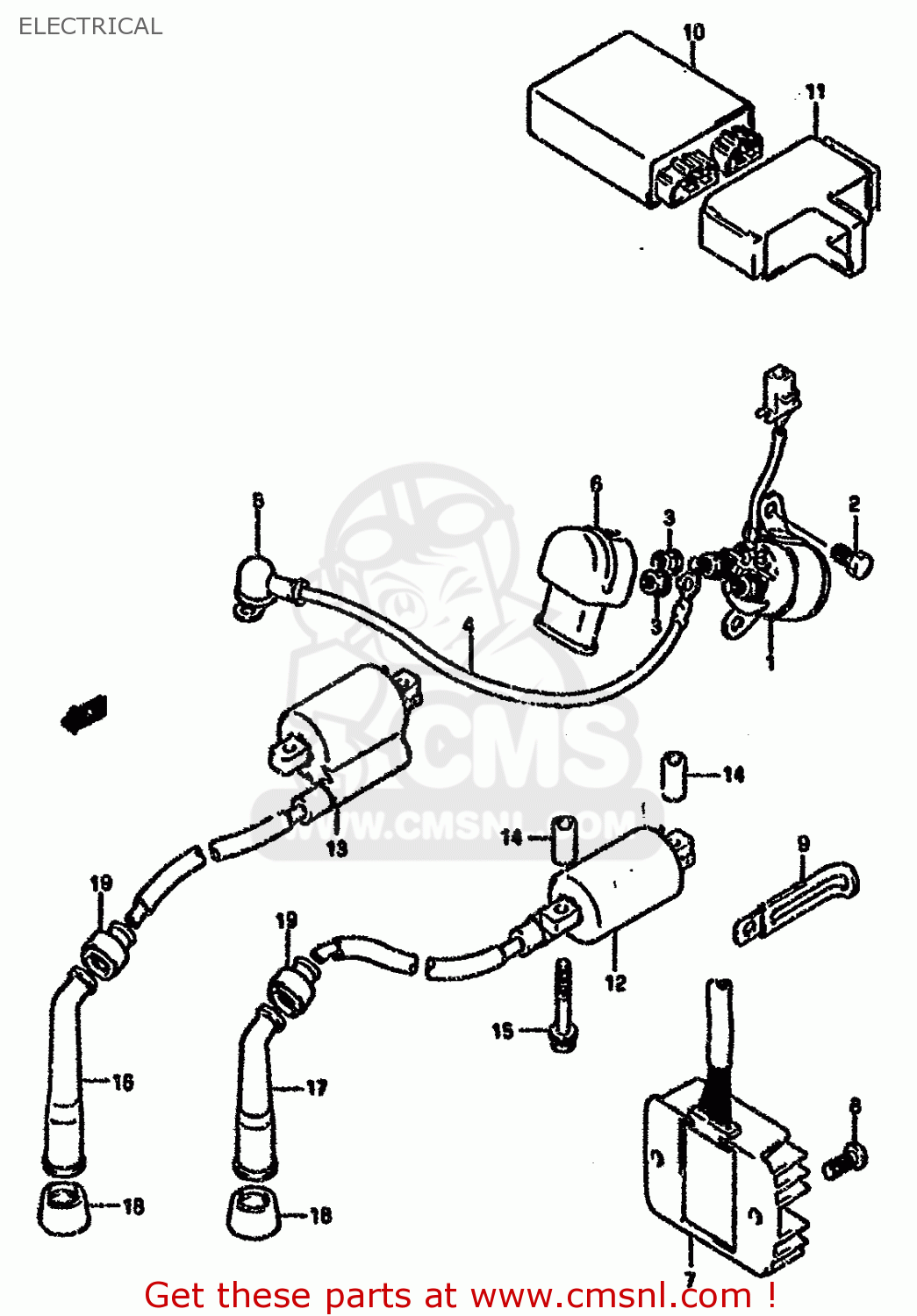

Electrical diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
ELECTRICAL VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
3180015500
ref: 1-1
MODEL L/M
RELAY ASSEMBLY,STARTING MOTOR
€ 78.00
1-2
3180015501
ref: 1-2
MODEL N/P/R/T
RELAY ASSY,STARTING MOTOR
€ 78.00
2-1
0110406086
ref: 2-1
MODEL L/M/N/P
BOLT
€ 2.50
2-2
0910006157
ref: 2-2
MODEL R/T
BOLT(6X8)
€ 2.50
3
0836135068
ref: 3
NUT
€ 2.00
4
3385045C00
ref: 4
WIRE,STARTER MOTOR LEAD
€ 26.00
5
3186148B10
ref: 5
-31861-05300
CAP,STARTER MOTOR LEAD
€ 4.50
6
3362400A10
ref: 6
CAP,STARTER RELAY TERMINAL
€ 3.50
7-1
3280045C00
ref: 7-1
MODEL L/M/N/P/R
RECTIFIER ASSEMBLY
€ 268.50
7-2
3280045C01
ref: 7-2
MODEL T
RECTIFIER ASSY
€ 268.50
8-1
0211206164
ref: 8-1
MODEL L/M/N/P
SCREW
€ 2.00
8-2
0211206163
ref: 8-2
MODEL R/T
SCREW 6X16
€ 2.00
9-1
0940406415
ref: 9-1
MODEL L/M/N/P/R-0940
CLAMP
€ 3.00
9-2
0940406431
ref: 9-2
MODEL T
CLAMP(L:65)
€ 2.50
10-1
3290045C00
ref: 10-1
MODEL L/M/N/P/R
IGNITOR ASSY
€ 618.00
10-2
3290045C40
ref: 10-2
MODEL T
IGNITER UNIT
€ 567.00
10-3
3290045C10
ref: 10-3
MODEL L/M/N/P/R
IGNITOR ASSY
€ 798.00
10-4
3290045C50
ref: 10-4
MODEL T E18
IGNITER UNIT
€ 0.00
11-1
3298040C00
ref: 11-1
MODEL L/M/N/P
CUSHION,IGNITER
€ 9.50
11-2
3298040C01
ref: 11-2
MODEL R/T
CUSHION,IGNITOR
€ 9.50
12-1
3341045C00
ref: 12-1
MODEL L/M/N/P
COIL ASSEMBLY,IGNITION
€ 106.50
12-2
3341045C01
ref: 12-2
MODEL R/T
COIL ASSEMBLY,IGNITION
€ 106.50
13-1
3342045C00
ref: 13-1
MODEL L/M/N/P
COIL ASSEMBLY,IGNITION,FRONT
€ 101.00
13-2
3342045C01
ref: 13-2
MODEL R/T
COIL ASSEMBLY,IGNITION
€ 101.00
14
0918006144
ref: 14
SPACER(6.4X10X19)
€ 5.00
15-1
0117405406
ref: 15-1
MODEL L/M/N/P
BOLT
€ 0.00
15-2
0158005403
ref: 15-2
MODEL R/T
BOLT
€ 0.00
16
3351011410
ref: 16
FR
CAP,SPARK PLUG
€ 24.50
17
3351045010
ref: 17
RR
CAP ASSY,SPARK PLUG
€ 23.00
18
3354124510
ref: 18
SEAL,SPARK PLUG CAP
€ 7.00
19
3354238B00
ref: 19
SEAL,HIGH TENSION CORD
€ 4.50
