CARBURETOR (FRONT)
VX800 1996 (T) (E04 E18 E21 E22 E25)

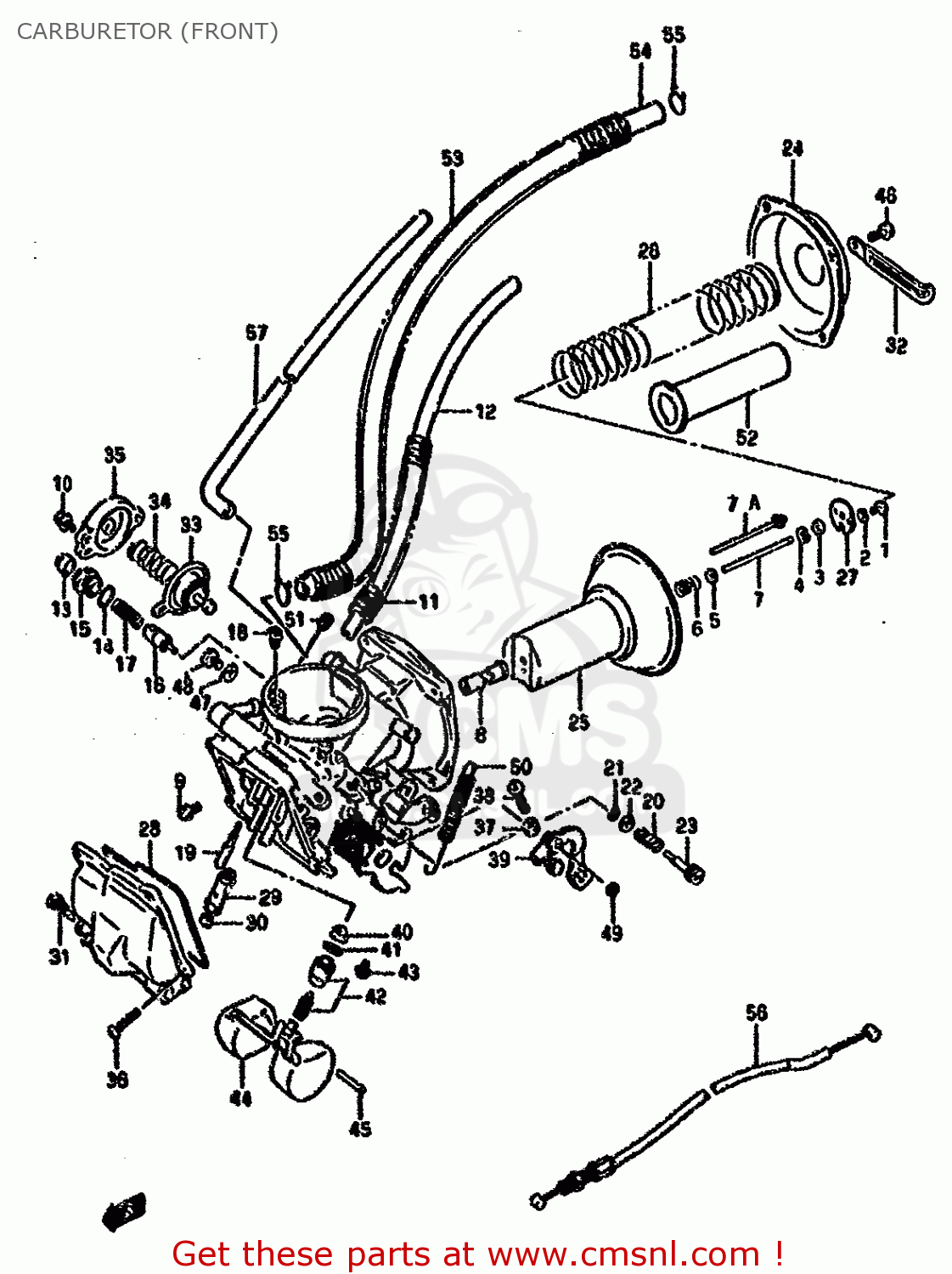

Carburetor (front) diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
CARBURETOR (FRONT) VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
0
1321045C40
ref: 0
E1,MODEL L E16
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045C00
ref: 0
E2,E4,E21,E25,E34 MO
CARBURETOR ASSY,FRONT
€ 554.00
0
1321045CB0
ref: 0
MODEL T
CARBURETOR ASSY,FR
€ 741.50
0
1321045C70
ref: 0
E17
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045C30
ref: 0
E18
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045C50
ref: 0
E24,E39 MODEL M/N E1
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045CC0
ref: 0
MODEL T E22
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045C60
ref: 0
VX800UL/UM/UN/UP E22
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045CA0
ref: 0
VX800UR E22
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045CD0
ref: 0
VX800UT E22
CARBURETOR ASSY,FRONT
€ 0.00
1
0211203063
ref: 1
SCREW
€ 2.00
2
0832121033
ref: 2
WASHER,LOCK
€ 1.50
3-1
1338747010
ref: 3-1
RING
€ 7.50
3-2
1338745C00
ref: 3-2
VX800UR E22
RING
€ 6.00
4
1339410010
ref: 4
EXCEPT VX800UR/UT E2
CLIP
€ 4.50
5
1338244030
ref: 5
WASHER
€ 3.50
6
1338844030
ref: 6
SPRING
€ 6.00
7-1
1338345C00
ref: 7-1
NEEDLE,JET (5D64)
€ 13.50
7-2
1338345C50
ref: 7-2
E18
NEEDLE, JET (5D48-3)
€ 0.00
7A-1
1338345C70
ref: 7A-1
VX800UR E22
NEEDLE,JET (5D64)
€ 9.00
7A-2
1338345C00
ref: 7A-2
VX800UT E22
NEEDLE,JET (5D64)
€ 13.50
8-1
0949400592
ref: 8-1
-09494-00686
JET,NEEDLE(P-4)
€ 32.50
8-2
0949400688
ref: 8-2
E17
JET,NEEDLE (P-6)
€ 26.00
8-3
0949400588
ref: 8-3
E18
JET,NEEDLE(P-2)
€ 26.50
8-4
0949400688
ref: 8-4
VX800UL/UM/UN/UP/UR
JET,NEEDLE (P-6)
€ 26.00
9
1360538B00
ref: 9
SCREW
€ 7.50
10
1360219B50
ref: 10
SCREW
€ 3.00
11
1368419C00
ref: 11
HOSE
€ 8.00
12
0935250823600
ref: 12
HOSE(5X8.2X600)
€ 13.00
13
1368104010
ref: 13
CAP
€ 3.00
14
1327847090
ref: 14
O RING
€ 2.00
15
1341843410
ref: 15
HOLDER,GUIDE
€ 6.50
16
1341101400
ref: 16
PLUNGER,STARTER
€ 11.50
17
1341722010
ref: 17
SPRING
€ 3.00
18
0949265005
ref: 18
JET,AIR(65)
€ 7.50
19
0949240021
ref: 19
JET,PILOT(40)
€ 17.50
20
1326847070
ref: 20
EXCEPT E18
SPRING
€ 5.00
21
1329529900
ref: 21
EXCEPT E18
O RING,PILOT AIR SCREW
€ 4.00
22
1329129900
ref: 22
EXCEPT E18
WASHER
€ 2.00
23-1
1327947070
ref: 23-1
EXCEPT E18
SCREW,PILOT
€ 11.50
23-2
1327947070
ref: 23-2
E17 MODEL T E22
SCREW,PILOT
€ 11.50
23-3
1327947070
ref: 23-3
E24,E39 MODEL M/N E1
SCREW,PILOT
€ 11.50
23-4
1327947070
ref: 23-4
VX800UR E22
SCREW,PILOT
€ 11.50
24-1
1350245C10
ref: 24-1
COVER
€ 34.00
24-2
1350245CD0
ref: 24-2
VX800UT E22
COVER
€ 19.00
25-1
1350005A10
ref: 25-1
DIAPHRAGM,CARBURETOR
€ 178.00
25-2
1350045C00
ref: 25-2
E18
DIAPHRAGM ASSY
€ 211.00
25-3
1350045C20
ref: 25-3
VX800UR/UT E22
DIAPHRAGM SET
€ 131.00
26
1350338B00
ref: 26
SPRING,DIAPHRAGM
€ 12.00
27
1338937400
ref: 27
PLATE
€ 5.50
28
1325138A00
ref: 28
O RING,FLOAT CHAMBER
€ 6.50
29
1338505A11
ref: 29
HOLDER,MAIN JET
€ 14.00
30-1
0949124015
ref: 30-1
E1,E2,E4,E16,E17,E21
JET,MAIN
€ 14.00
30-2
0949125014
ref: 30-2
E18
JET,MAIN(125)
€ 11.50
30-3
0949124012
ref: 30-3
E24,E39 MODEL M/N E1
JET,MAIN (120)
€ 14.00
30-4
0949120019
ref: 30-4
MODEL T E22
JET,MAIN(100)
€ 7.50
30-5
0949120011
ref: 30-5
VX800UT E22
JET,MAIN (102.5)
€ 9.50
31
1324713A00
ref: 31
-13247-38B00 MODEL L
SCREW,DRAIN
€ 5.50
32-1
0940406415
ref: 32-1
-13671-05A20
CLAMP
€ 3.00
32-2
0940406431
ref: 32-2
MODEL T
CLAMP(L:65)
€ 2.50
33
1348005A10
ref: 33
DIAPHRAGM ASSY
€ 54.50
34-1
1348145C10
ref: 34-1
SPRING
€ 5.50
34-2
1348137300
ref: 34-2
E18
SPRING
€ 0.00
35
1348445C00
ref: 35
COVER
€ 15.50
36
1360104148
ref: 36
SCREW
€ 2.50
37
0831000047
ref: 37
NUT
€ 2.00
38
0211204307
ref: 38
SCREW
€ 0.00
39
1355445C00
ref: 39
-13554-38B10
LEVER ASSEMBLY
€ 38.50
40
1337684110
ref: 40
FILTER
€ 6.50
41
1337444080
ref: 41
O-RING,NEEDLE VALVE
€ 6.00
42-1
1337038B00
ref: 42-1
VALVE ASSY,NEEDLE
€ 64.50
42-2
1337039A00
ref: 42-2
MODEL T E22 VX800UR/
VALVE ASSY,NEEDLE
€ 67.50
43
1360205A10
ref: 43
SCREW
€ 4.00
44
1325038B00
ref: 44
FLOAT
€ 32.00
45
1325420010
ref: 45
PIN,FLOAT
€ 3.00
46
0211205127
ref: 46
SCREW
€ 2.50
47
1352346110
ref: 47
EXCEPT E18
GASKET,DRAIN PLUG (NAS)
€ 3.00
48
0211205067
ref: 48
EXCEPT E18
SCREW
€ 4.00
49
1341538300
ref: 49
E RING
€ 2.00
50
1357338B30
ref: 50
SPRING
€ 7.50
51-1
0949324007
ref: 51-1
JET,AIR(1.2)
€ 13.50
51-2
0949326004
ref: 51-2
E18
JET,AIR(1.3)
€ 14.50
52
1348545C00
ref: 52
E17,E18 VX800UL/UM/U
RING
€ 19.00
53
1368438B00
ref: 53
HOSE
€ 21.50
54
0935465113600
ref: 54
L:600-450
HOSE(6.5X11.5X600)
€ 26.00
55
0940111402
ref: 55
-13671-38B00
CLAMP
€ 3.00
56
1364138B02
ref: 56
-13641-38B00
CABLE,IDLE SYNCRO
€ 17.50
57
1321845C00
ref: 57
E18
HOSE ASSY
€ 0.00
