WIRING HARNESS
VX800 1996 (T) (E04 E18 E21 E22 E25)

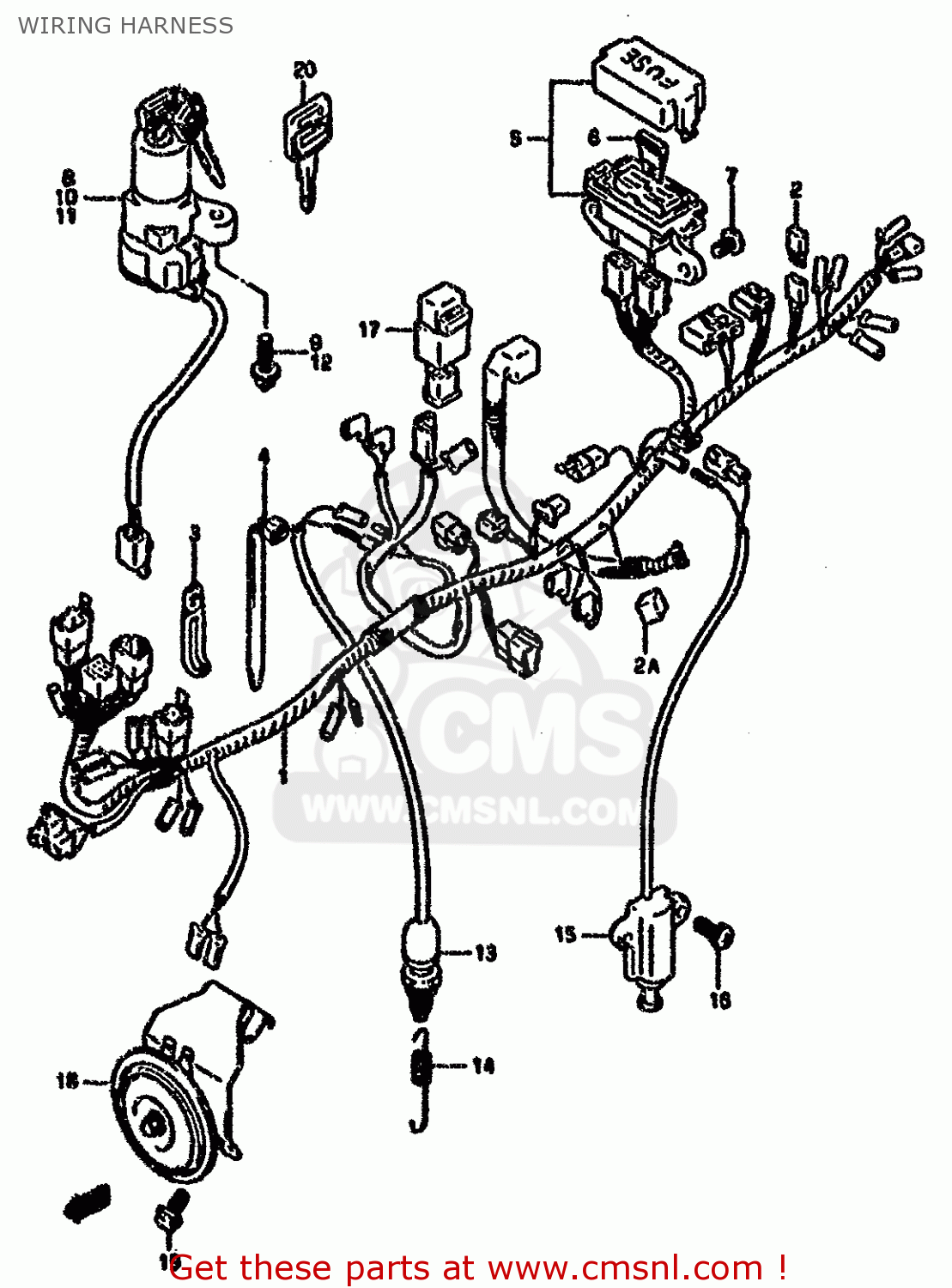

Wiring harness diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
WIRING HARNESS VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661045C10
ref: 1-1
MODEL L/M/N-36610-45
HARNESS,WIRING
€ 268.00
1-2
3661045C00
ref: 1-2
MODEL L/M/N E22
HARNESS,WIRING
€ 268.00
1-3
3661045C50
ref: 1-3
MODEL P/R
HARNESS,WIRING
€ 275.00
1-4
3661045C70
ref: 1-4
MODEL T
HARNESS,WIRING
€ 309.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
2A
3362443500
ref: 2A
-33624-27A00
CAP,BATTERY PLUS TERMINAL
€ 3.50
3-1
0940406206
ref: 3-1
CLAMP(L:45)
€ 2.50
3-2
0940406426
ref: 3-2
CLAMP
€ 3.00
3-3
0940406429
ref: 3-3
CLAMP(L:45)
€ 2.50
3-4
0940406435
ref: 3-4
CLAMP(L:135)
€ 2.50
3-5
0940408420
ref: 3-5
CLAMP(L:120 T:1.0)
€ 3.50
3-6
0940408418
ref: 3-6
CLAMP(L:65)
€ 3.50
4-1
0940710404
ref: 4-1
CLAMP(L:100)
€ 4.00
4-2
0940714403
ref: 4-2
CLAMP(L:125)
€ 2.50
4-3
0940712402
ref: 4-3
CLAMP(L:120)
€ 3.00
4-4
0940718403
ref: 4-4
CLAMP L:165
€ 2.50
5-1
3674034C01
ref: 5-1
MODEL L/M/N/P
BOX ASSEMBLY,FUSE
€ 58.50
5-2
3674010D10
ref: 5-2
MODEL R/T
BOX ASSY,FUSE
€ 58.50
6-1
0948110101
ref: 6-1
FUSE(10A)
€ 2.50
6-2
0948125101
ref: 6-2
FUSE (25A)
€ 2.50
7
0214206123
ref: 7
SCREW 6X12
€ 2.00
8
3710017C00
ref: 8
MODEL L
LOCK ASSEMBLY,STEERING
€ 134.00
9
0913906026
ref: 9
MODEL L
SCREW(6X18)
€ 2.50
10
3710017C01
ref: 10
MODEL M
LOCK ASSEMBLY,STEERING
€ 134.00
11-1
3710017C02
ref: 11-1
MODEL N
LOCK ASSEMBLY,STEERING
€ 134.00
11-2
3710033D00
ref: 11-2
MODEL P
LOCK ASSEMBLY,STEERING
€ 134.00
11-3
3710026D02
ref: 11-3
MODEL R/T
LOCK ASSEMBLY,STEERING
€ 134.00
12
0913906026
ref: 12
MODEL M/N/P/R/T
SCREW(6X18)
€ 2.50
13-1
3774004A10
ref: 13-1
MODEL L/M/N
SWITCH ASSY,STOP LAMP
€ 22.00
13-2
3774031D00
ref: 13-2
MODEL P/R/T
SWITCH ASSY,STOP LAMP
€ 20.50
14
0944306073
ref: 14
SPRING
€ 3.00
15
3784044X50
ref: 15
-37840-20A11
SWITCH ASSY,SIDE STAND
€ 75.50
16-1
0211276203
ref: 16-1
MODEL L/M/N/P
SCREW
€ 2.50
16-2
0155006203
ref: 16-2
MODEL R/T
BOLT
€ 2.50
17
3874024X50
ref: 17
-38740-24B10
RELAY ASSY
€ 37.50
18
3850045C00
ref: 18
HORN ASSEMBLY
€ 68.50
19-1
0155006127
ref: 19-1
MODEL L/M/N
BOLT
€ 2.50
19-2
0113406125
ref: 19-2
MODEL P
BOLT ,6X12
€ 1.50
19-3
0157006123
ref: 19-3
MODEL R/T
BOLT
€ 1.50
20
3714626D10
ref: 20
OPT
KEY,BLANK
€ 41.50
