CAM CHAIN

VX800 1996 (T) (E04 E18 E21 E22 E25)

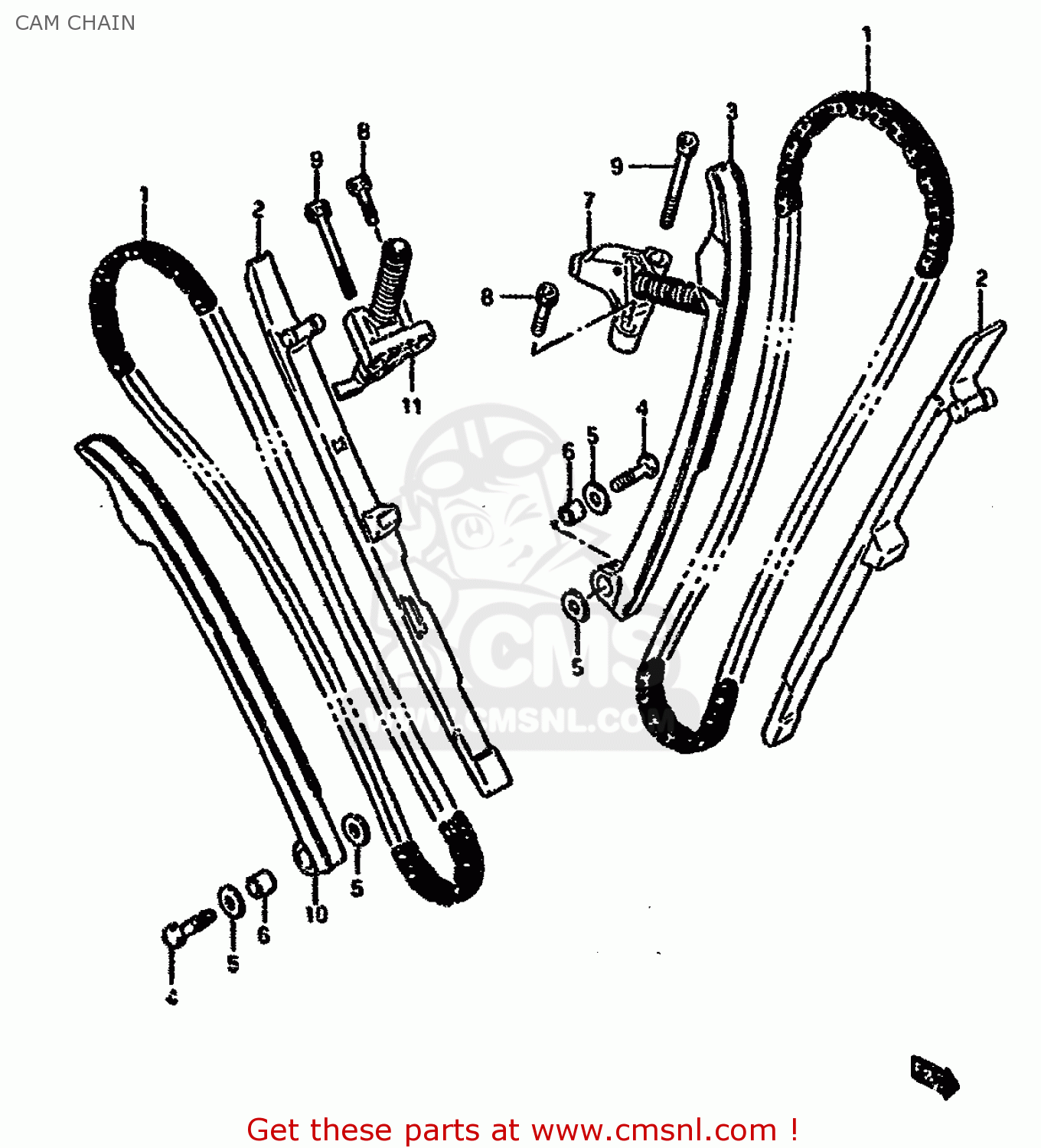

Cam chain diagram VX800 1996 (T) (E04 E18 E21 E22 E25)

CAM CHAIN VX800 1996 (T) (E04 E18 E21 E22 E25)

CAM CHAIN VX800 1996 (T) (E04 E18 E21 E22 E25)

prices are in EUR

ref

part #

description

quantity

1

1276038A10
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 155.00

2

1277138A02
ref: 2

GUIDE,CAM CHAIN

€ 39.00

3

1281138A01
ref: 3

TENSIONER,FR CAM CHAIN

€ 39.00

4

0910006129
ref: 4

BOLT(6X26)

€ 2.00

5

0821106182
ref: 5

WASHER

€ 2.00

6

0918006148
ref: 6

SPACER(6X11X11)

€ 3.50

7

1283138A00
ref: 7

ADJUSTER ASSEMBLY,FRONT TENSIONER

€ 70.50

8-1

0713006205
ref: 8-1
MODEL L/M/N/P

BOLT

€ 3.00

8-2

0713006203
ref: 8-2
MODEL R/T

BOLT,CRKCASE,R

€ 3.00

9

0713006453
ref: 9

BOLT

€ 2.50

10

1281638A01
ref: 10

TENSIONER,RR CAM CHAIN

€ 28.00

11

1283238A00
ref: 11

ADJUSTER ASSEMBLY,REAR TENSIONER

€ 99.00

all assemblies
