HANDLE LEVER
VX800 1996 (T) (E04 E18 E21 E22 E25)

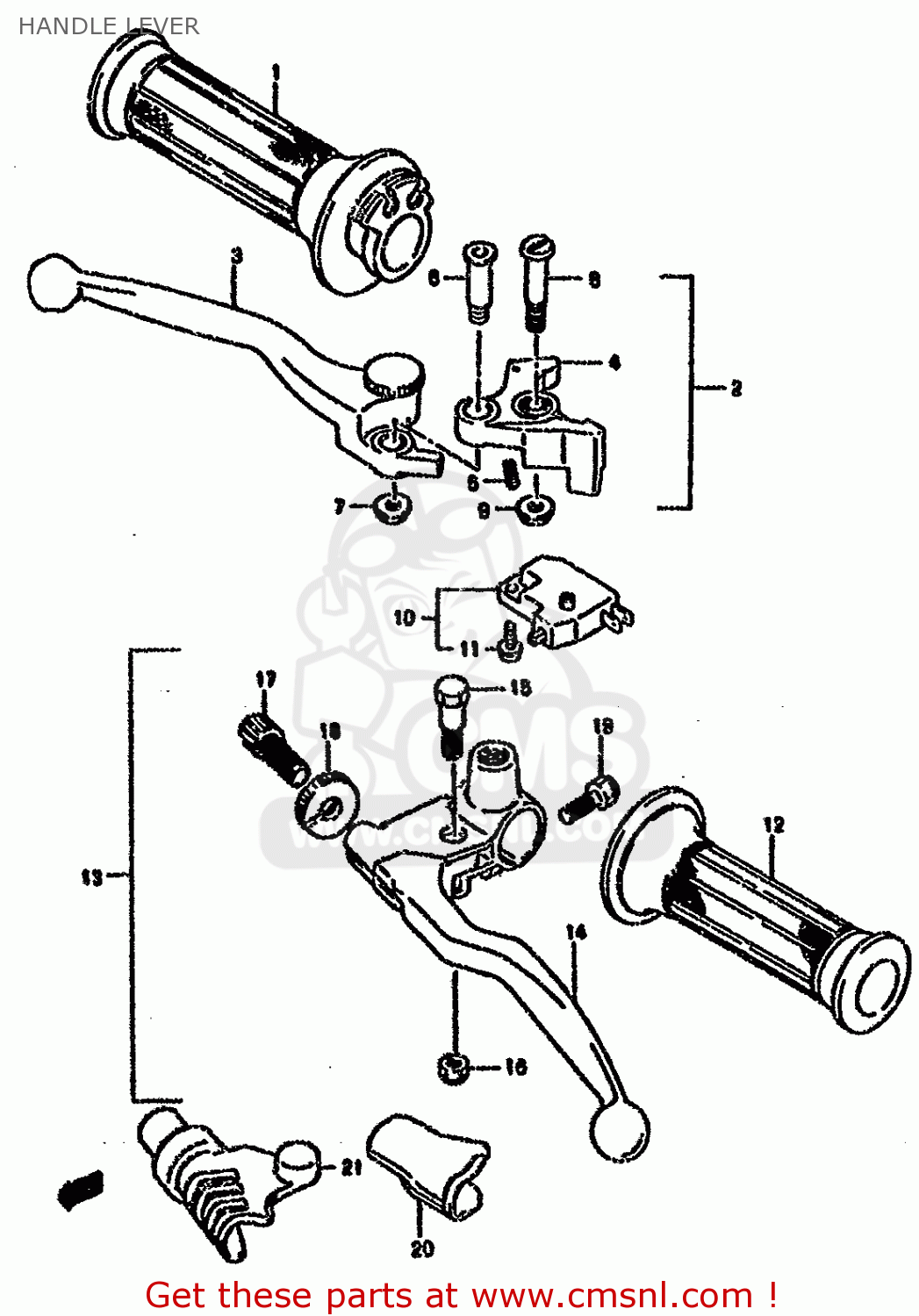

Handle lever diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
HANDLE LEVER VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1
5711049501
ref: 1
GRIP,THROTTLE
€ 26.00
2-1
5730040C01
ref: 2-1
MODEL L/M/N/P/R
LEVER ASSEMBLY,BRAKE
€ 75.00
2-2
5730032C01
ref: 2-2
MODEL T
LEVER ASSEMBLY,BRAKE
€ 88.00
3
5742032C00
ref: 3
LEVER,ADJUST
€ 39.50
4-1
5743040C00
ref: 4-1
MODEL L/M/N/P/R
KNOCKER
€ 51.00
4-2
5743032C00
ref: 4-2
MODEL T
KNOCKER
€ 45.50
5
5743832C00
ref: 5
SPRING
€ 4.00
6-1
5743732C00
ref: 6-1
MODEL L/M/N/P/R
BOLT,LEVER
€ 6.50
6-2
5743732C01
ref: 6-2
MODEL T
BOLT,LEVER
€ 6.50
7
0831931065
ref: 7
NUT
€ 2.50
8
5743117C00
ref: 8
BOLT,LEVER PIVOT
€ 8.00
9
0831616064
ref: 9
NUT 6MM
€ 2.50
10
5746017C00
ref: 10
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12
5721149500
ref: 12
GRIP,L
€ 9.00
13-1
5750045C00
ref: 13-1
MODEL L
LEVER,CLUTCH
€ 53.00
13-2
5750045C20
ref: 13-2
MODEL M/N/P/R/T
LEVER ASSY,CLUTCH
€ 53.00
14
5762045C00
ref: 14
LEVER,CLUTCH
€ 35.00
15
5743145C00
ref: 15
BOLT,LEVER SET
€ 10.50
16
0831921065
ref: 16
NUT
€ 2.50
17
5744145C00
ref: 17
ADJUSTER,WIRE
€ 8.50
18
5744245C00
ref: 18
NUT,LOCK
€ 7.50
19
0154706205
ref: 19
BOLT 6X20
€ 2.50
20
5766131000
ref: 20
MODEL L
COVER,CLUTCH LEVER
€ 5.50
21
5766145C00
ref: 21
MODEL M/N/P/R/T
COVER,CLUTCH LEVER
€ 13.00
