REAR WHEEL
VX800 1996 (T) (E04 E18 E21 E22 E25)

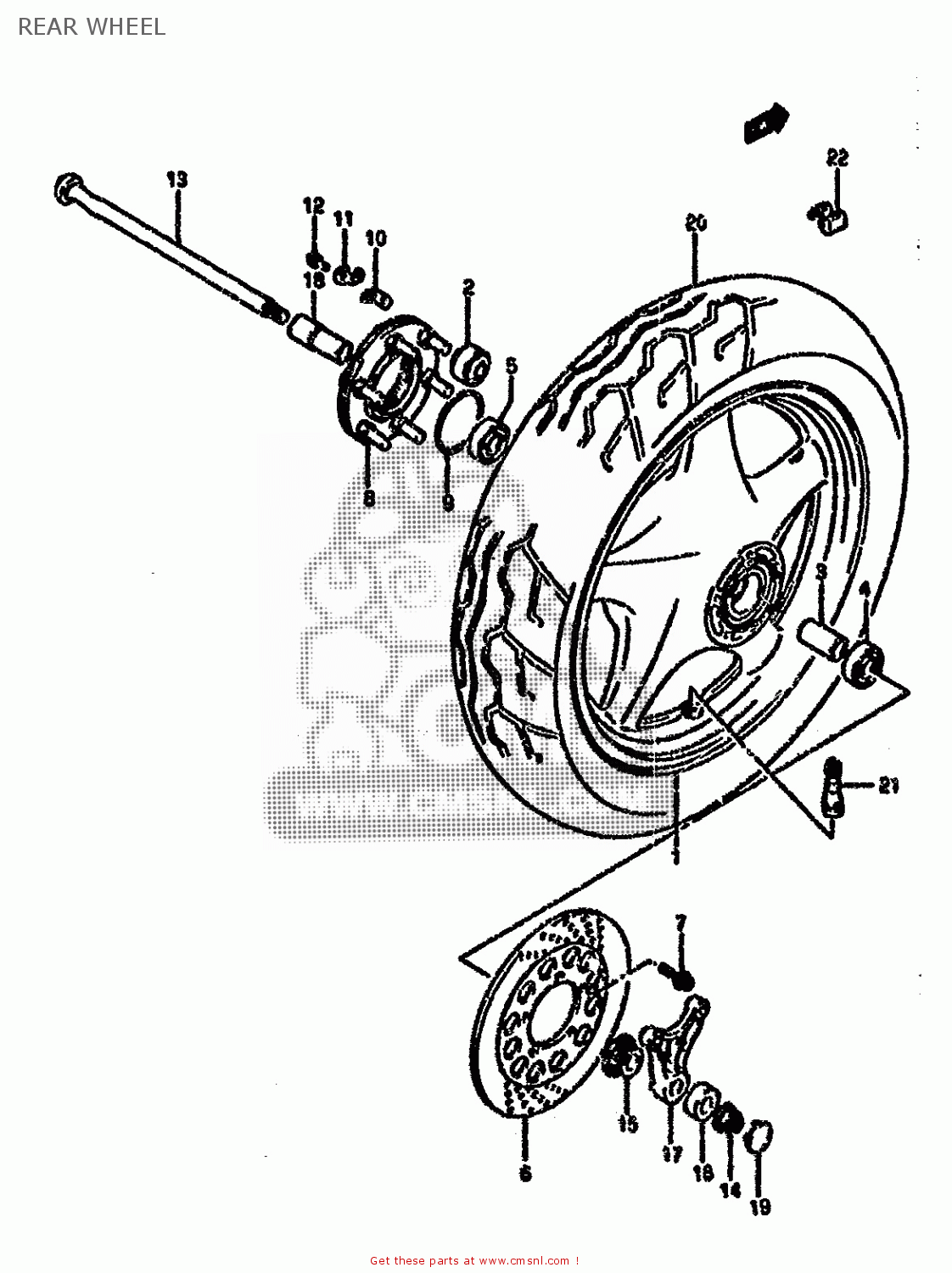

Rear wheel diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
REAR WHEEL VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
641004583012Z
ref: 1-1
MODEL L/R/T
WHEEL SET,REAR (MT3.50X17)
€ 449.50
1-2
641004583023W
ref: 1-2
MODEL M/N/P
WHEEL SET,REAR (17XMT3)
€ 449.50
2
0931912019
ref: 2
BUSH
€ 10.50
3
0918017099
ref: 3
SPACER,REAR HUB BEARING
€ 14.50
4
0812363037
ref: 4
BEARING
€ 16.00
5
0814363037
ref: 5
BEARING
€ 23.00
6-1
6921145C00
ref: 6-1
MODEL L
DISC,REAR BRAKE
€ 237.00
6-2
6921145C10
ref: 6-2
MODEL M/N/P/R/T
DISC,RR BRAKE
€ 237.00
7-1
0712008308
ref: 7-1
MODEL L/M/N/P
BOLT, REAR
€ 3.50
7-2
0910608131
ref: 7-2
MODEL R/T
BOLT(8X30)
€ 3.50
8-1
6468007A01
ref: 8-1
-64680-45113
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
8-2
6468045113
ref: 8-2
JOINT ASSY,RR HUB DRIVEN
€ 181.50
9
0928065003
ref: 9
O RING(D:2.1,ID:65)
€ 2.50
10
6467745110
ref: 10
WASHER,THRUST(T:1.6)
€ 2.50
11
0916906030
ref: 11
WASHER
€ 2.00
12
0911906049
ref: 12
BOLT(6X16)
€ 1.50
13-1
6471145C01
ref: 13-1
MODEL L/M/N
AXLE,REAR
€ 64.50
13-2
6471145C02
ref: 13-2
MODEL P/R/T
AXLE,REAR
€ 64.50
14
0831931148
ref: 14
NUT
€ 9.00
15-1
6474031301
ref: 15-1
-64740-38B00
SPACER,REAR AXLE,RIGHT
€ 23.00
15-2
6474038B00
ref: 15-2
SPACER,RR AXLE,R
€ 23.00
16
6474145C02
ref: 16
SPACER,RR AXLE,R
€ 6.00
17
6972143400
ref: 17
BRACKET,RR,CALIPER
€ 51.50
18
6477234201
ref: 18
SPACER,RR AXLE,L
€ 14.50
19
6479138B00
ref: 19
CAP,RR AXLE,R
€ 83.50
20
6511045C10
ref: 20
EXECUTED LOCALLY
TIRE 150/70 817 69H,ME
€ 0.00
21-1
4313024A00
ref: 21-1
-43130-24A11
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
21-2
4313024A11
ref: 21-2
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
22-1
5541100A00
ref: 22-1
BALANCER,WHEEL (10G)
€ 6.50
22-2
5541200A01
ref: 22-2
BALANCER,WHEEL (20G)
€ 7.00
22-3
5541300A01
ref: 22-3
BALANCER,WHEEL
€ 4.00
