FUEL COCK
VX800 1996 (T) (E04 E18 E21 E22 E25)

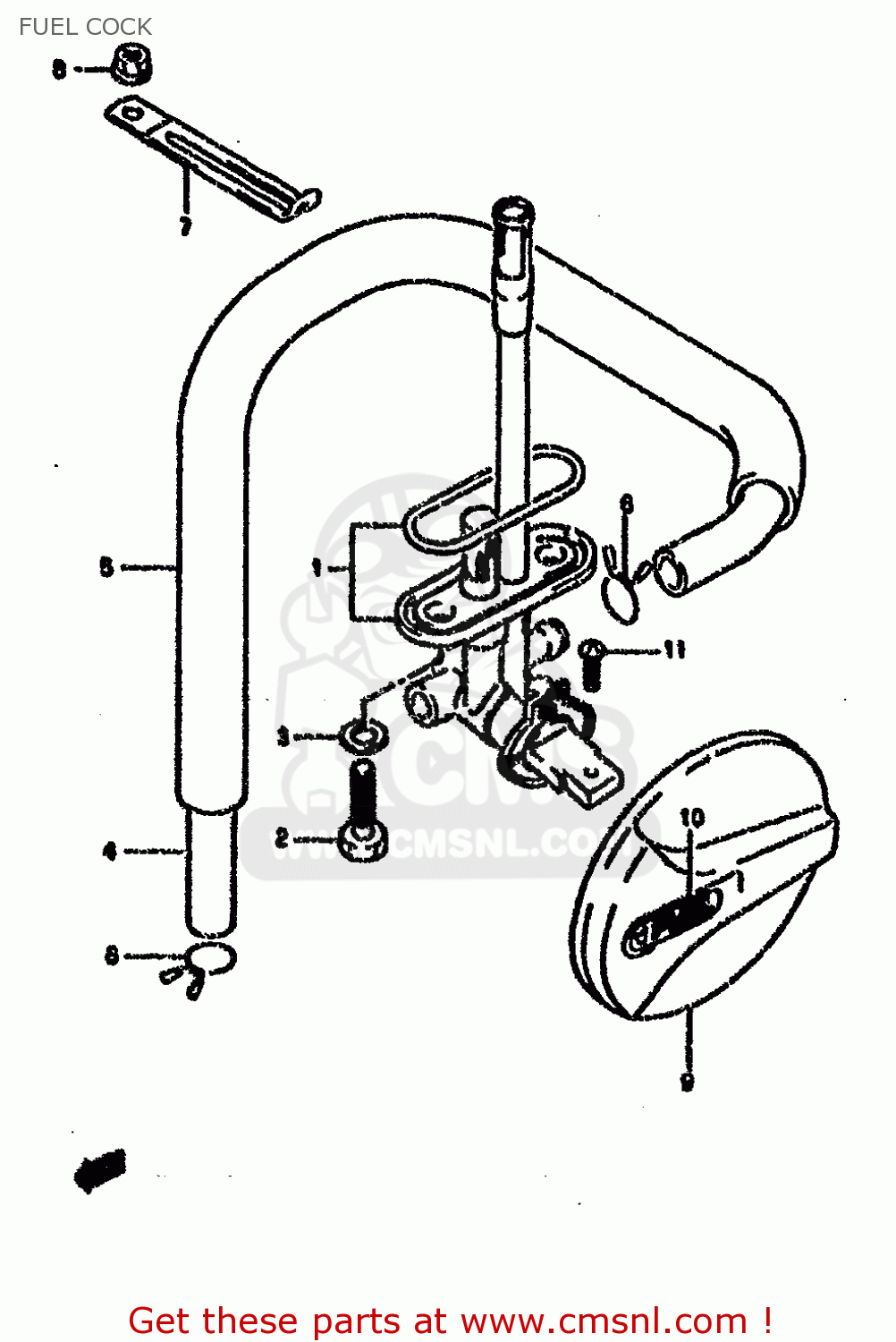

Fuel cock diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
FUEL COCK VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
4430045810
ref: 1-1
MODEL L/M
COCK SET,FUEL
€ 169.50
1-2
4430045C10
ref: 1-2
MODEL N/P/R/T
COCK ASSY,FUEL
€ 169.50
2
0912806057
ref: 2
BOLT(6X20)
€ 2.00
3
0916806026
ref: 3
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
0935470113600
ref: 4
HOSE(7X11X600)
€ 17.50
5-1
4446145C00
ref: 5-1
MODEL L/M/N
PROTECTOR,FUEL HOSE
€ 8.50
5-2
4446145C01
ref: 5-2
MODEL P/R/T
PROTECTOR,FUEL HOSE
€ 8.50
6-1
0940112403
ref: 6-1
MODEL L/M/N
CLIP
€ 2.00
6-2
0940110409
ref: 6-2
MODEL P/R/T
CLIP
€ 2.50
7
0940406426
ref: 7
CLAMP
€ 3.00
8-1
0915906017
ref: 8-1
MODEL L/M/N/P
NUT
€ 2.50
8-2
0831320063
ref: 8-2
MODEL R/T
NUT
€ 2.00
9-1
584814930224D
ref: 9-1
MODEL L/N
LEVER,FUEL COCK
€ 43.00
9-2
584814930224V
ref: 9-2
MODEL L
LEVER,FUEL COCK
€ 43.00
9-3
584814930233J
ref: 9-3
LEVER,FUEL COCK
€ 43.00
9-4
58481493020FP
ref: 9-4
MODEL M
LEVER,FUEL COCK
€ 61.00
9-5
584814930219A
ref: 9-5
MODEL M
LEVER,FUEL COCK
€ 61.00
9-6
58481493021HU
ref: 9-6
MODEL N
LEVER,FUEL COCK
€ 43.00
9-7
58481493021TU
ref: 9-7
MODEL R/T
LEVER,FUEL COCK
€ 43.00
9-8
584814930222U
ref: 9-8
MODEL P/R/T
LEVER,FUEL COCK
€ 43.00
10
4439545C00
ref: 10
LABEL,FUEL COCK LEVER
€ 3.00
11
0211233128
ref: 11
MODEL L/M/N/P/R
SCREW
€ 1.50
11-2
0211203123
ref: 11-2
MODEL T
SCREW
€ 2.50
