STARTING MOTOR
VX800 1996 (T) (E04 E18 E21 E22 E25)

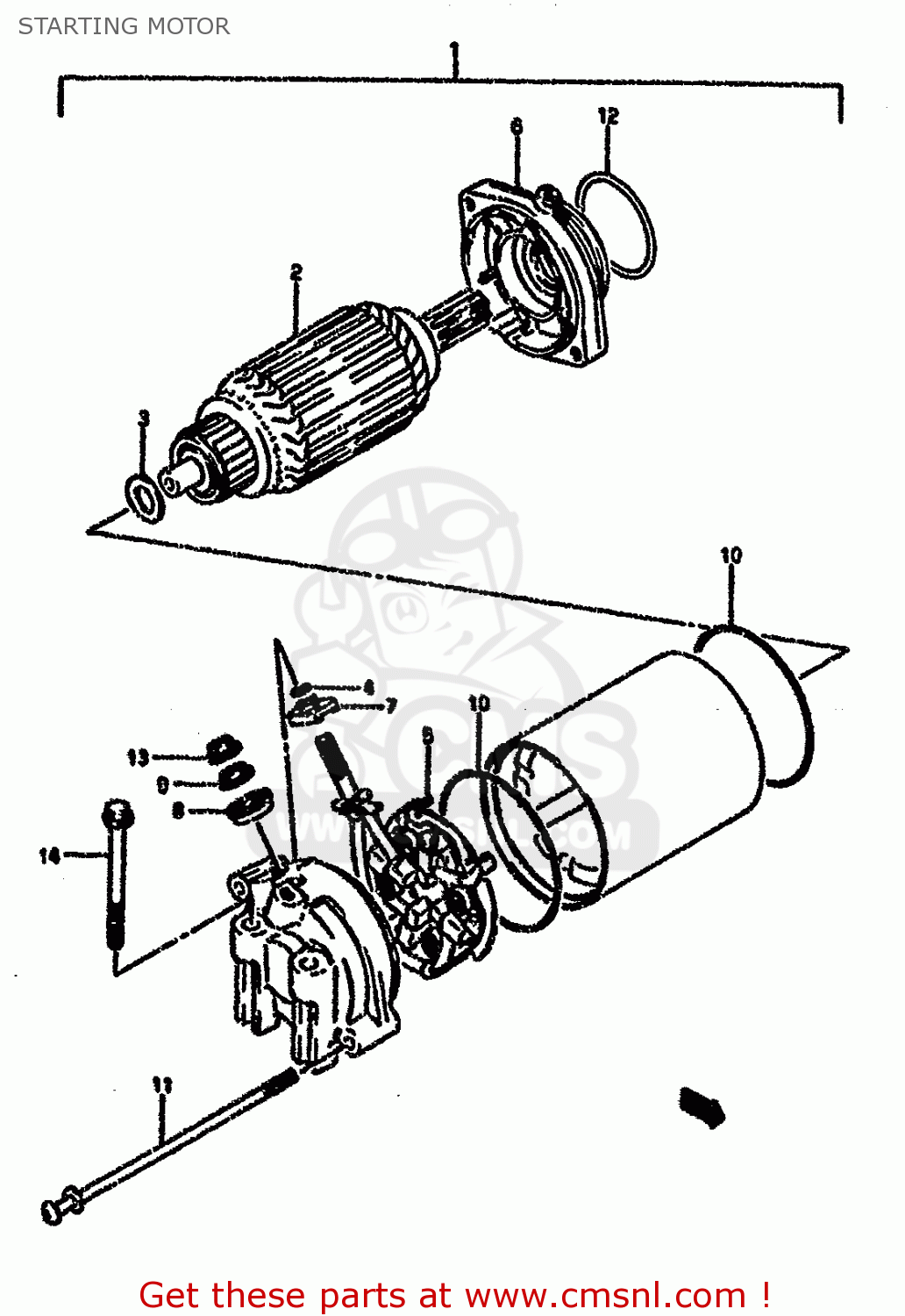

Starting motor diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
STARTING MOTOR VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110045C00
ref: 1-1
MODEL L/M/N/P/R
MOTOR ASSEMBLY,STARTING
€ 472.00
1-2
3110045C01
ref: 1-2
MODEL T
MOTOR ASSY,STARTING
€ 472.00
2
3131045C00
ref: 2
ARMATURE
€ 127.00
3
3117043400
ref: 3
-31361-47010
SHIM SET,STARTING MOTOR
€ 3.50
4
3114338300
ref: 4
O RING
€ 3.50
5
3113245C00
ref: 5
HOLDER SET,BRUSH
€ 46.00
6
3115038A00
ref: 6
BRACKET SET
€ 79.50
7
3117238300
ref: 7
BUSHING
€ 4.00
8
3117388C00
ref: 8
BUSHING
€ 6.00
9
0831000067
ref: 9
NUT
€ 2.50
10
3126444110
ref: 10
O RING
€ 8.00
11-1
3128131D00
ref: 11-1
MODEL L/M/N/P/R-3128
BOLT
€ 5.00
11-2
3128124B10
ref: 11-2
MODEL T
BOLT
€ 5.00
12
3115638A00
ref: 12
O RING
€ 8.00
13
0836135068
ref: 13
NUT
€ 2.00
14
0154706603
ref: 14
BOLT
€ 3.50
