CYLINDER
VX800 1996 (T) (E04 E18 E21 E22 E25)

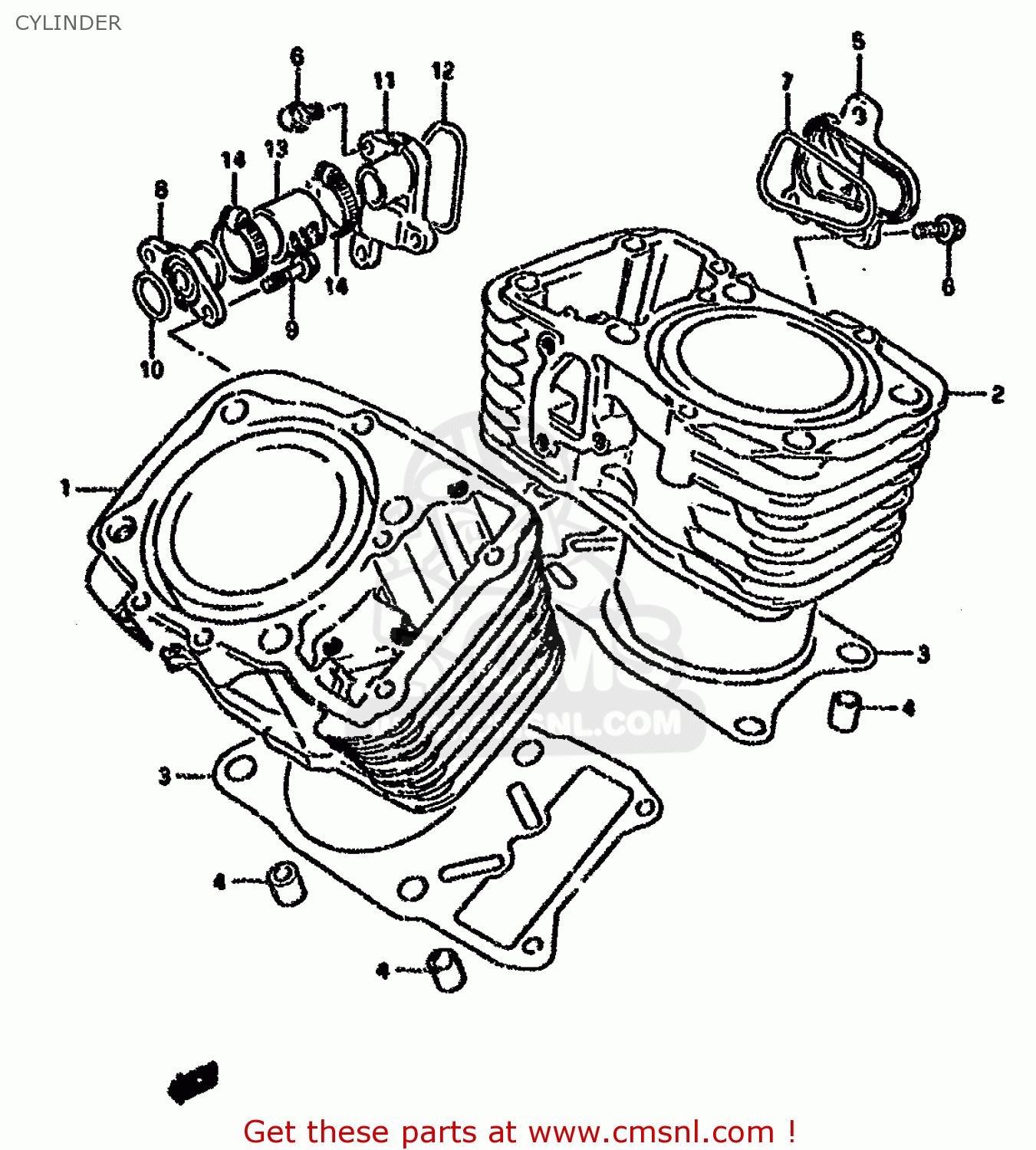

Cylinder diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
CYLINDER VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121045C01
ref: 1-1
MODEL L/M/N/P
CYLINDER,FRONT
€ 481.00
1-2
1121045C20
ref: 1-2
MODEL R/T
CYLINDER COMP,FRONT
€ 481.00
2-1
1122045C01
ref: 2-1
MODEL L/M/N/P
CYLINDER,REAR
€ 486.50
2-2
1122045C20
ref: 2-2
MODEL R/T
CYLINDER,RR
€ 486.50
3-1
1124145C20
ref: 3-1
GASKET,CYLINDER (NAS)
€ 16.50
3-2
1124145C10
ref: 3-2
E18
GASKET,CYLINDER
€ 21.50
4
0421113189
ref: 4
PIN
€ 2.50
5
1123745C10
ref: 5
CHAMBER,WATER,INLET
€ 28.00
6-1
0154706207
ref: 6-1
MODEL L/M/N/P
BOLT
€ 2.50
6-2
0154706203
ref: 6-2
MODEL R/T
SCREW
€ 2.50
7
1124738A00
ref: 7
O RING,INLET WATER CHAMBER
€ 3.00
8
1123545C10
ref: 8
UNION,WATER INLET
€ 16.00
9-1
0154706167
ref: 9-1
MODEL L/M/N/P
BOLT
€ 2.00
9-2
0154706163
ref: 9-2
MODEL R/T
BOLT
€ 2.50
10
0928016005
ref: 10
O RING(D:2.4,ID:15.8)
€ 1.50
11
1123645C10
ref: 11
CHAMBER,WATER OUTLET
€ 26.50
12
1124638A00
ref: 12
O RING,OUTLET WATER CHAMBER
€ 4.50
13
1785328C20
ref: 13
HOSE,RADIATOR JOINT NO.1
€ 17.50
14
0940228511
ref: 14
CLAMP
€ 8.50
