VX800 1996 (T) (E04 E18 E21 E22 E25)

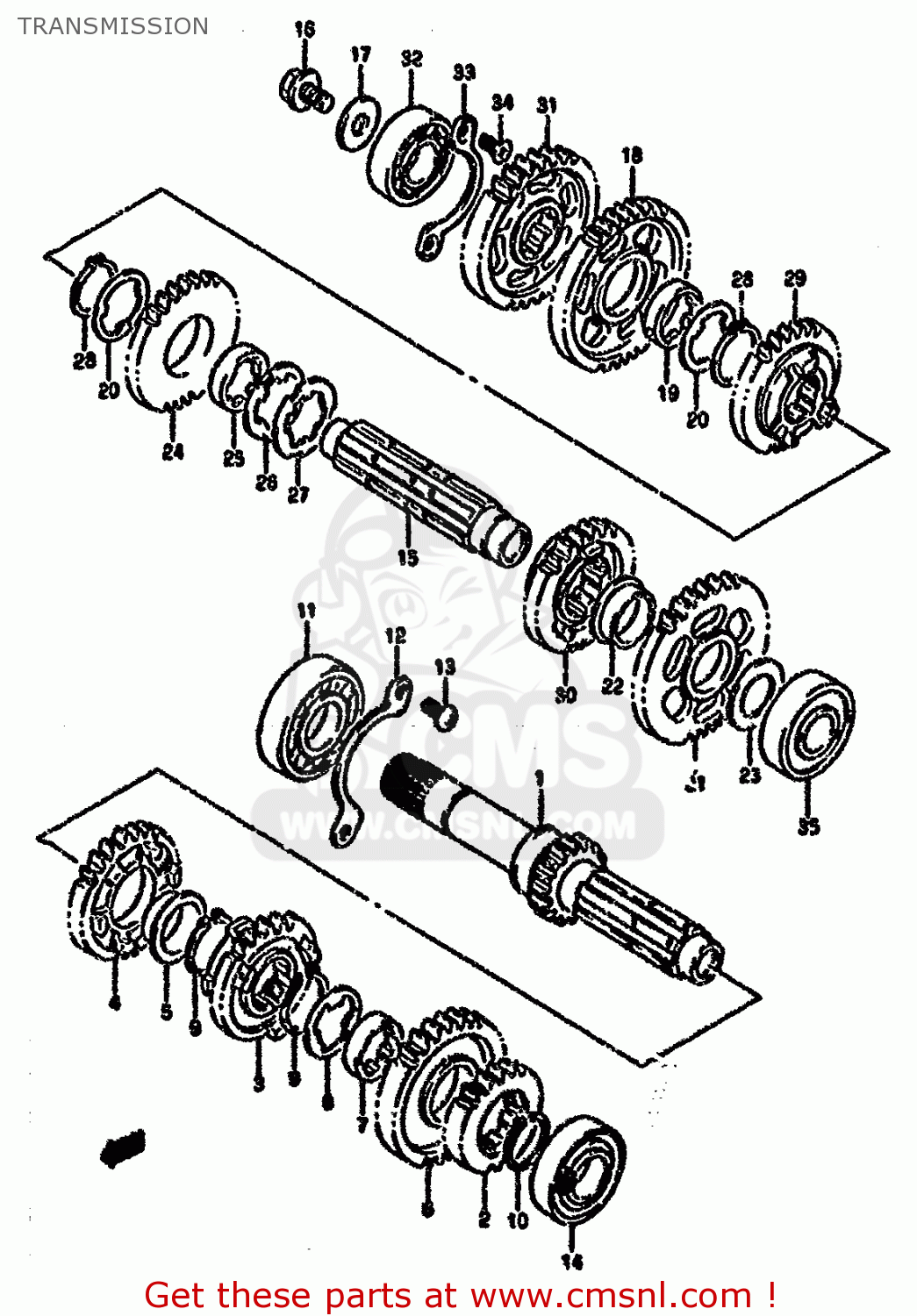

Transmission diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
TRANSMISSION VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1
2412045C10
ref: 1
-24120-45C02
SHAFT COMP,COUNTER
€ 159.50
2-1
2422138A01
ref: 2-1
MODEL L/M/N
GEAR,2ND DRIVE(NT:19)
€ 91.50
2-2
2422138A20
ref: 2-2
MODEL P/R
GEAR,SECOND DRIVE
€ 91.50
2-3
2422138A01
ref: 2-3
MODEL T
GEAR,2ND DRIVE(NT:19)
€ 91.50
3
2423145C00
ref: 3
GEAR,3RD DRIVE(NT:22)
€ 97.00
4
2424138A00
ref: 4
GEAR,4TH DRIVE(NT:25)
€ 101.00
5
0930125001
ref: 5
BUSHING
€ 12.50
6
2425138A00
ref: 6
GEAR,FIFTH DRIVE (NT:27)
€ 93.50
7
2425238A00
ref: 7
BUSHING
€ 10.50
8
0916725016
ref: 8
WASHER,LOCK
€ 3.00
9
0938025003
ref: 9
RING,SNAP
€ 3.00
10
0938025010
ref: 10
CIRCLIP
€ 3.00
11
0926225080
ref: 11
BEARING(25X62X17)
€ 21.50
12
2474138A00
ref: 12
RETAINER,CNTR SHAFT BEARING
€ 4.00
13
0211206123
ref: 13
SCREW
€ 1.50
14
0926220081
ref: 14
BEARING 20X47X14
€ 27.50
15
2413138A03
ref: 15
SHAFT,DRIVE
€ 106.50
16
2413538A02
ref: 16
NOZZLE,DRIVE SHAFT
€ 5.00
17
0821110305
ref: 17
WASHER
€ 3.00
18-1
2431138A01
ref: 18-1
MODEL L/M/N
GEAR,FIRST DRIVEN (NT:32)
€ 97.50
18-2
2431138A20
ref: 18-2
MODEL P/R/T
GEAR,1ST DRIVEN(NT:32)
€ 105.00
19
2433207A00
ref: 19
BUSH
€ 9.50
20
0916728001
ref: 20
WASHER,LOCK
€ 3.00
21-1
2432138A00
ref: 21-1
MODEL L/M/N
GEAR,2ND DRIVEN(NT:31)
€ 86.00
21-2
2432138A20
ref: 21-2
MODEL P/R-24321-38A0
GEAR,SECOND DRIVEN
€ 86.00
21-3
2432138A00
ref: 21-3
MODEL T
GEAR,2ND DRIVEN(NT:31)
€ 86.00
22
0930122002
ref: 22
BUSH
€ 7.50
23
0821120341
ref: 23
WASHER
€ 2.00
24
2433138A02
ref: 24
GEAR,3RD DRIVEN(NT:27)
€ 86.00
25
2433207A00
ref: 25
BUSH
€ 9.50
26
0916928001
ref: 26
WASHER
€ 3.00
27
0916728002
ref: 27
WASHER,LOCK
€ 3.00
28
0833131286
ref: 28
CIRCLIP
€ 2.50
29
2434145C00
ref: 29
GEAR,4TH DRIVEN(NT:25)
€ 106.50
30
2435145C20
ref: 30
GEAR,FIFTH DRIVEN (NT:23)
€ 81.00
31
2462145C00
ref: 31
GEAR,OVER DRIVING DRIVE
€ 81.50
32
0926220073
ref: 32
BEARING(20X52X15)
€ 19.00
33
2475138A00
ref: 33
RETAINER,DRIVE SHAFT BEARING
€ 4.00
34
0212206123
ref: 34
SCREW
€ 3.00
35
0926220080
ref: 35
BEARING(20X52X15)
€ 21.50
