SEAT
VX800 1996 (T) (E04 E18 E21 E22 E25)

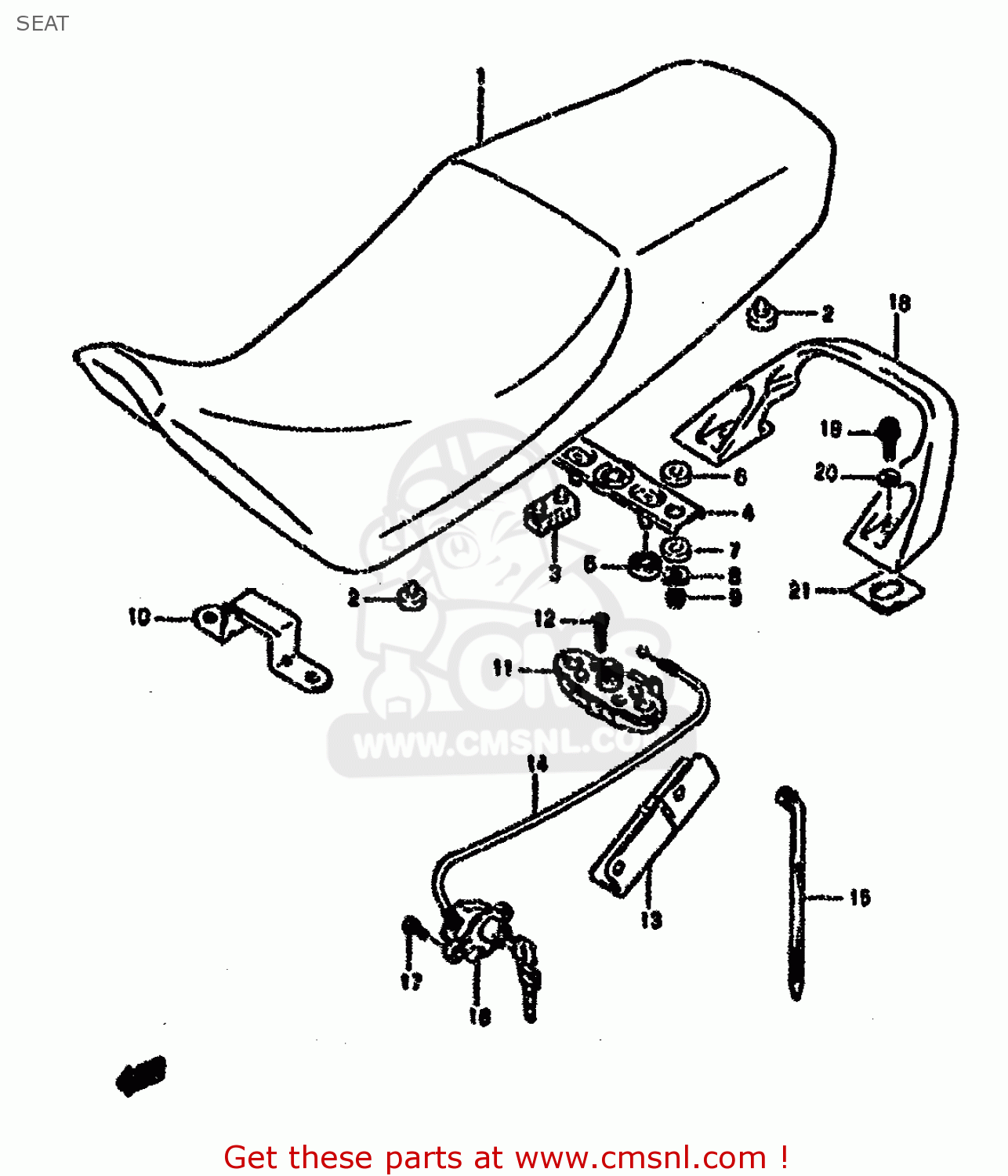

Seat diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
SEAT VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510045C0058R
ref: 1-1
E2,E4,E15,E16,E17,E2
SEAT SET
€ 271.50
1-2
4510045C1058R
ref: 1-2
E1,E18,E39
SEAT SET (BLACK)
€ 341.50
2
0932110012
ref: 2
CUSHION
€ 3.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
€ 2.00
4
4521522A00
ref: 4
STRIKER,SEAT LOCK
€ 20.50
5
4521313601
ref: 5
CUSHION,SEAT LOCK(10X22X6)
€ 1.50
6
4512641B00
ref: 6
CUSHION,UPR
€ 2.00
7
4512741B00
ref: 7
CUSHION,LWR
€ 2.00
8
0821206201
ref: 8
WASHER
€ 1.50
9
0831620063
ref: 9
NUT
€ 2.00
10
4511945C00
ref: 10
PLATE,SEAT FR HOOK
€ 10.00
11-1
4522020A00
ref: 11-1
MODEL L/M/N
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
11-2
4522020A01
ref: 11-2
MODEL P/R/T
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
12
0212206303
ref: 12
SCREW
€ 2.00
13
4528845C00
ref: 13
PLATE,SEAT LOCK CABLE
€ 6.00
14
4528045C00
ref: 14
CABLE,SEAT LOCK
€ 16.00
15
0940718403
ref: 15
CLAMP L:165
€ 2.50
16
4570019840
ref: 16
LOCK SET,SEAT
€ 59.50
17-1
0910606055
ref: 17-1
MODEL L/M/N/P
BOLT
€ 2.50
17-2
0713006123
ref: 17-2
MODEL R/T
BOLT,STRANGER
€ 2.50
18-1
4621145C0124D
ref: 18-1
MODEL L/N
HANDLE,PILLION RIDER
€ 133.00
18-2
4621145C0124V
ref: 18-2
MODEL L
HANDLE,PILLION RIDER
€ 133.00
18-3
4621145C0133J
ref: 18-3
MODEL L/M/N/P/R/T
HANDLE,PILLION RIDER
€ 133.00
18-4
4621145C010FP
ref: 18-4
MODEL M
HANDLE,PILLION RIDER
€ 133.00
18-5
4621145C0119A
ref: 18-5
MODEL M
HANDLE,PILLION RIDER
€ 133.00
18-6
4621145C011HU
ref: 18-6
MODEL N
HANDLE,PILLION RIDER (PURPLE)
€ 133.00
18-7
4621145C0122U
ref: 18-7
MODEL P/R/T
HANDLE,PILLION RIDER
€ 133.00
18-8
4621145C011TU
ref: 18-8
MODEL R/T
HANDLE,PILLION
€ 133.00
19-1
0712010255
ref: 19-1
MODEL L/M/N
BOLT
€ 2.50
19-2
0713010307
ref: 19-2
MODEL P/R
BOLT
€ 4.50
19-3
0713010303
ref: 19-3
MODEL T
BOLT
€ 3.50
20-1
0832211104
ref: 20-1
MODEL L/M/N/P
WASHER 10MM
€ 2.50
20-2
0832201103
ref: 20-2
MODEL R/T
WASHER
€ 2.50
21
4716145C00
ref: 21
CUSHION,FRAME COVER
€ 15.00
