WATER PUMP
VX800 1996 (T) (E04 E18 E21 E22 E25)

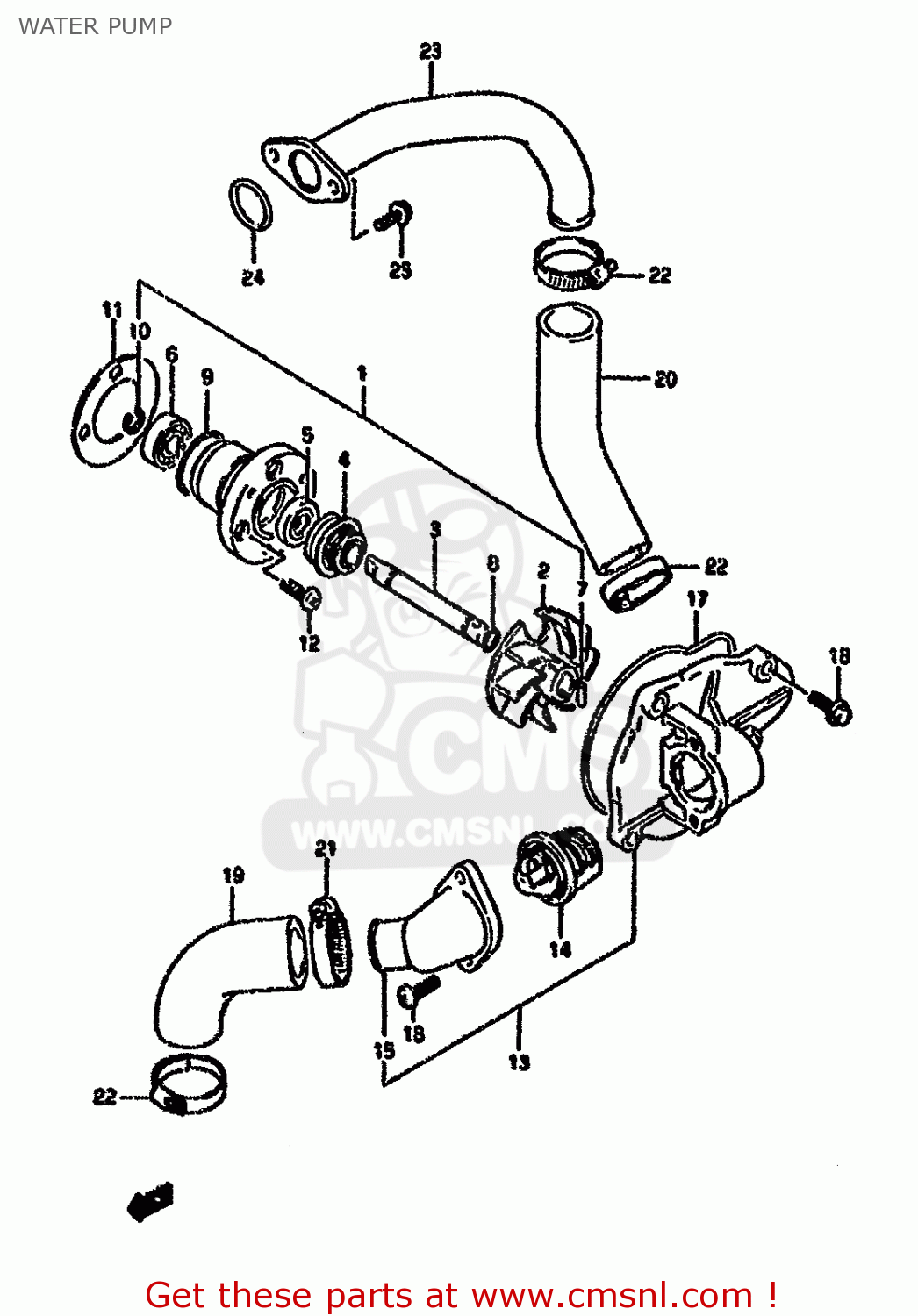

Water pump diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
WATER PUMP VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1
1740038A02
ref: 1
PUMP ASSEMBLY,WATER
€ 133.50
2
1749138A00
ref: 2
IMPELLER
€ 12.50
3
1751138A00
ref: 3
SHAFT
€ 30.50
4
1747046A00
ref: 4
SEAL,MECHANICAL
€ 21.50
5-1
1746138A00
ref: 5-1
MODEL L/M/N/P/R
OILSEAL
€ 4.50
5-2
0928310004
ref: 5-2
MODEL T
SEAL,OIL(10X21X5)
€ 4.50
6-1
1745138A00
ref: 6-1
MODEL L/M/N/P/R
BEARING,10X26X8
€ 13.00
6-2
0926210004
ref: 6-2
MODEL T
BEARING(10X22X6)
€ 20.50
7
1751638A00
ref: 7
PIN
€ 4.00
8
1751538A00
ref: 8
O RING
€ 1.50
9
1741738A00
ref: 9
O RING
€ 2.50
10
0833211086
ref: 10
E RING
€ 2.00
11
1743138A10
ref: 11
-17431-38A00-17431-3
GASKET,WATER PUMP (NAS)
€ 5.00
12
0211206123
ref: 12
SCREW
€ 1.50
13
1741045C00
ref: 13
CAP ASSY,WATER PUMP
€ 117.00
14
1767033410
ref: 14
THERMOSTAT,WATER
€ 37.00
15
1741245C00
ref: 15
CONNECTOR
€ 47.00
16
0211206167
ref: 16
SCREW
€ 2.50
17
1743538A00
ref: 17
O RING,WATER PUMP CAP
€ 5.00
18-1
0154706207
ref: 18-1
MODEL L/M/N/P
BOLT
€ 2.50
18-2
0154706203
ref: 18-2
MODEL R/T
SCREW
€ 2.50
19
1785738A02
ref: 19
HOSE,WATER PUMP IN
€ 16.50
20
1785838A01
ref: 20
HOSE,WATER
€ 16.50
21-1
0940230502
ref: 21-1
MODEL L/M/N/P/R
CLAMP
€ 11.50
21-2
0940232511
ref: 21-2
MODEL T
CLAMP
€ 11.50
22-1
0940230502
ref: 22-1
MODEL L/M/N/P/R
CLAMP
€ 11.50
22-2
0940232511
ref: 22-2
MODEL T
CLAMP
€ 11.50
23
1789038A00
ref: 23
PIPE,CYLINDER INLET
€ 45.50
24
0928024007
ref: 24
O RING(D:2.3,ID:24.4)
€ 2.00
25-1
0154706167
ref: 25-1
MODEL L/M/N/P
BOLT
€ 2.00
25-2
0154706163
ref: 25-2
MODEL R/T
BOLT
€ 2.50
up
all assemblies
