STEERING STEM
VX800 1996 (T) (E04 E18 E21 E22 E25)

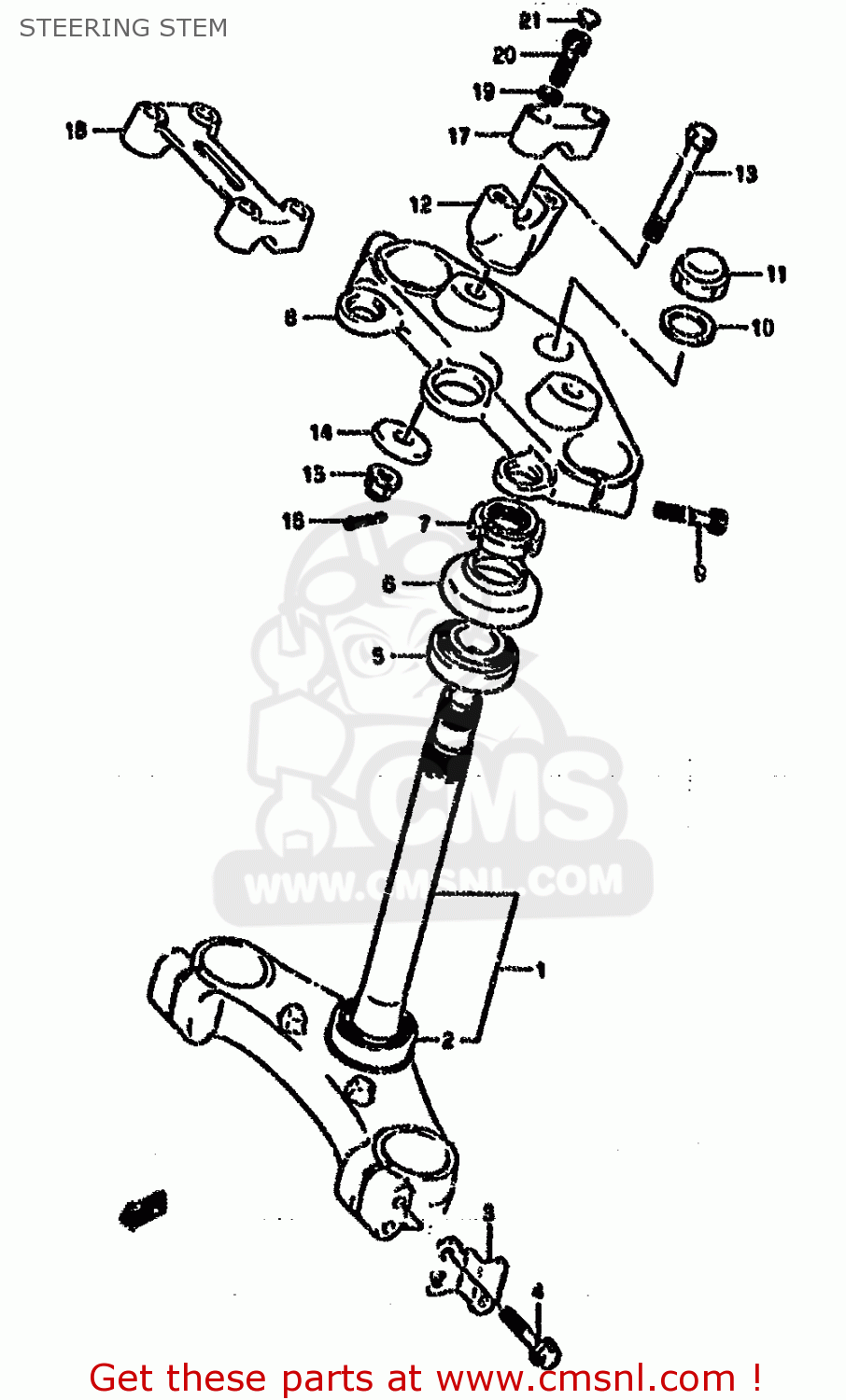

Steering stem diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
STEERING STEM VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
5141045C00
ref: 1-1
MODEL L
STEM,STEERING
€ 458.00
1-2
5141045C0023W
ref: 1-2
MODEL M/N/P
STEM,STEERING(SILVER)
€ 458.00
1-3
5141045C0020H
ref: 1-3
MODEL R/T
STEM,STEERING (SILVER)
€ 245.50
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3-1
3595645C01
ref: 3-1
E18,E39
BRACKET,SIDE REFLECTOR
€ 0.00
3-2
3595745C01
ref: 3-2
E18,E39
BRACKET,SIDE REFLECTOR
€ 0.00
4
5132827C20
ref: 4
BOLT,STEM HEAD(8X40)
€ 4.50
5
0926525008
ref: 5
TAPER,ROLLER BEARING
€ 48.50
6-1
5164349001
ref: 6-1
MODEL L/M/N/P
DUST SEAL,STEERING,UPPER
€ 7.50
6-2
5164349002
ref: 6-2
MODEL R/T
SEAL,STEERING UPR DUST
€ 7.50
7
5163128000
ref: 7
NUT,STEERING STEM(25X44X10)
€ 12.50
8-1
5131145C00
ref: 8-1
MODEL L
HEAD,STEERING STEM
€ 289.50
8-2
5131145C0023W
ref: 8-2
MODEL M/N/P
HEAD,STEERING STEM(SILVER)
€ 289.50
8-3
5131145C0020H
ref: 8-3
MODEL R/T
HEAD,STEERING STEM (SILVER)
€ 195.00
9
0713008307
ref: 9
BOLT
€ 4.50
10
5135624B01
ref: 10
WASHER(22.5X32X1.6)
€ 3.00
11
5135324B00
ref: 11
NUT,CAP
€ 21.50
12
5622145C00
ref: 12
HOLDER,HANDLE LWR
€ 30.50
13
5632128C00
ref: 13
BOLT
€ 6.50
14
5135627510
ref: 14
WASHER,FRONT FORK
€ 3.50
15
0831931107
ref: 15
NUT
€ 3.00
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
5621145C00
ref: 17
MODEL L/M
HOLDER,HANDLEBAR
€ 16.00
18
5621145C60
ref: 18
MODEL N/P/R/T
HOLDER,HANDLE UPR
€ 41.00
19
0916408015
ref: 19
WASHER
€ 3.00
20
0713008307
ref: 20
BOLT
€ 4.50
21
0925006004
ref: 21
CAP(OD:14.5)
€ 1.50
