COWLING (OPTIONAL)
VX800 1996 (T) (E04 E18 E21 E22 E25)

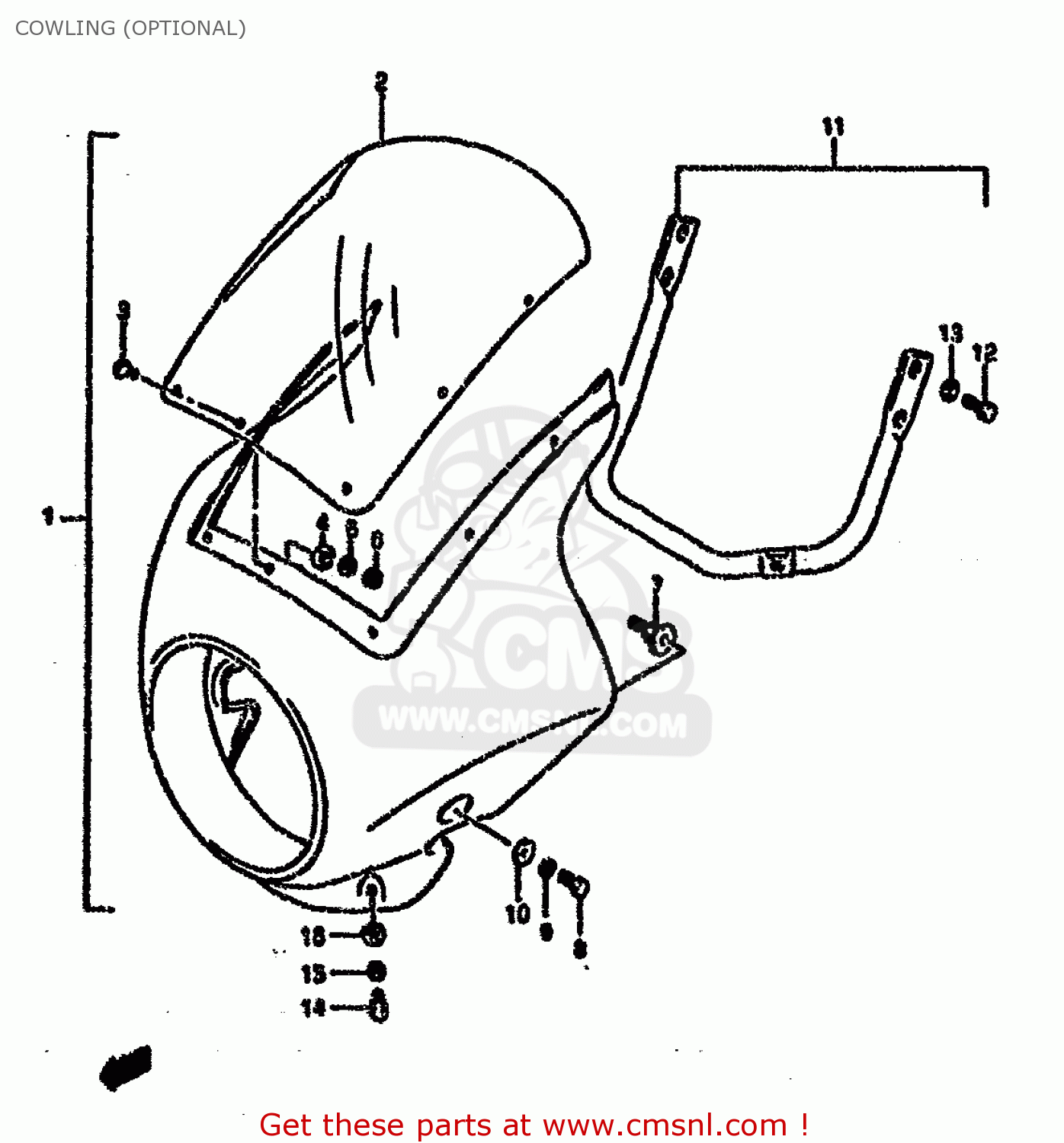

Cowling (optional) diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
COWLING (OPTIONAL) VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440245C5024D
ref: 1-1
MODEL L/N
UPPER COWLING SET (MAROON)
€ 628.50
1-2
9440245C5024V
ref: 1-2
MODEL L
UPPER COWLING SET (BLUE)
€ 628.50
1-3
9440245C500FP
ref: 1-3
MODEL M
UPPER COWLING SET
€ 509.00
1-4
9440245C5019A
ref: 1-4
MODEL M
UPPER COWLING SET,ANTA
€ 509.00
1-5
9440245C5033J
ref: 1-5
MODEL L/M/N/P/R/T
UPPER COWLING SET (BLACK)
€ 509.00
1-6
9440245C501HU
ref: 1-6
MODEL N
COVER SET,UPPER COWLING (P
€ 602.50
1-7
9440245C5022U
ref: 1-7
MODEL P/R/T
UPPER COWLING SET,MAROON
€ 628.50
1-8
9440245C501TU
ref: 1-8
MODEL R/T
COWLING ASSY (PURPLE)
€ 1,062.00
2
9443245C50
ref: 2
SCREEN,COWLING
€ 214.00
3
0214204103
ref: 3
SCREW
€ 1.50
4
0832201043
ref: 4
WASHER
€ 5.00
5
0832101043
ref: 5
WASHER,LOCK
€ 2.00
6
0831000043
ref: 6
NUT
€ 2.00
7
9474101D50
ref: 7
BOLT,COWLING HEADLAMP
€ 10.50
8-1
0120406167
ref: 8-1
MODEL L/M/N/P/R
BOLT
€ 2.00
8-2
0157006167
ref: 8-2
MODEL T
BOLT
€ 2.50
9
0832101067
ref: 9
MODEL L/M/N/P/R
WASHER,LOCK
€ 2.50
10
0916006084
ref: 10
WASHER(6.5X18X1.6)
€ 2.00
11
9451001D50
ref: 11
BRACE,UPPER COWLING
€ 151.00
12-1
0120406167
ref: 12-1
MODEL L/M/N/P/R
BOLT
€ 2.00
12-2
0155006167
ref: 12-2
MODEL T
BOLT
€ 1.50
13
0832201067
ref: 13
MODEL L/M/N/P/R
WASHER
€ 2.00
14-1
0120406127
ref: 14-1
MODEL L/M/N/P/R
BOLT
€ 1.50
14-2
0157006127
ref: 14-2
MODEL T
BOLT
€ 2.50
15
0832101067
ref: 15
MODEL L/M/N/P/R
WASHER,LOCK
€ 2.50
16
0832201067
ref: 16
WASHER
€ 2.00
