HEADLAMP (MODEL T)
VX800 1996 (T) (E04 E18 E21 E22 E25)

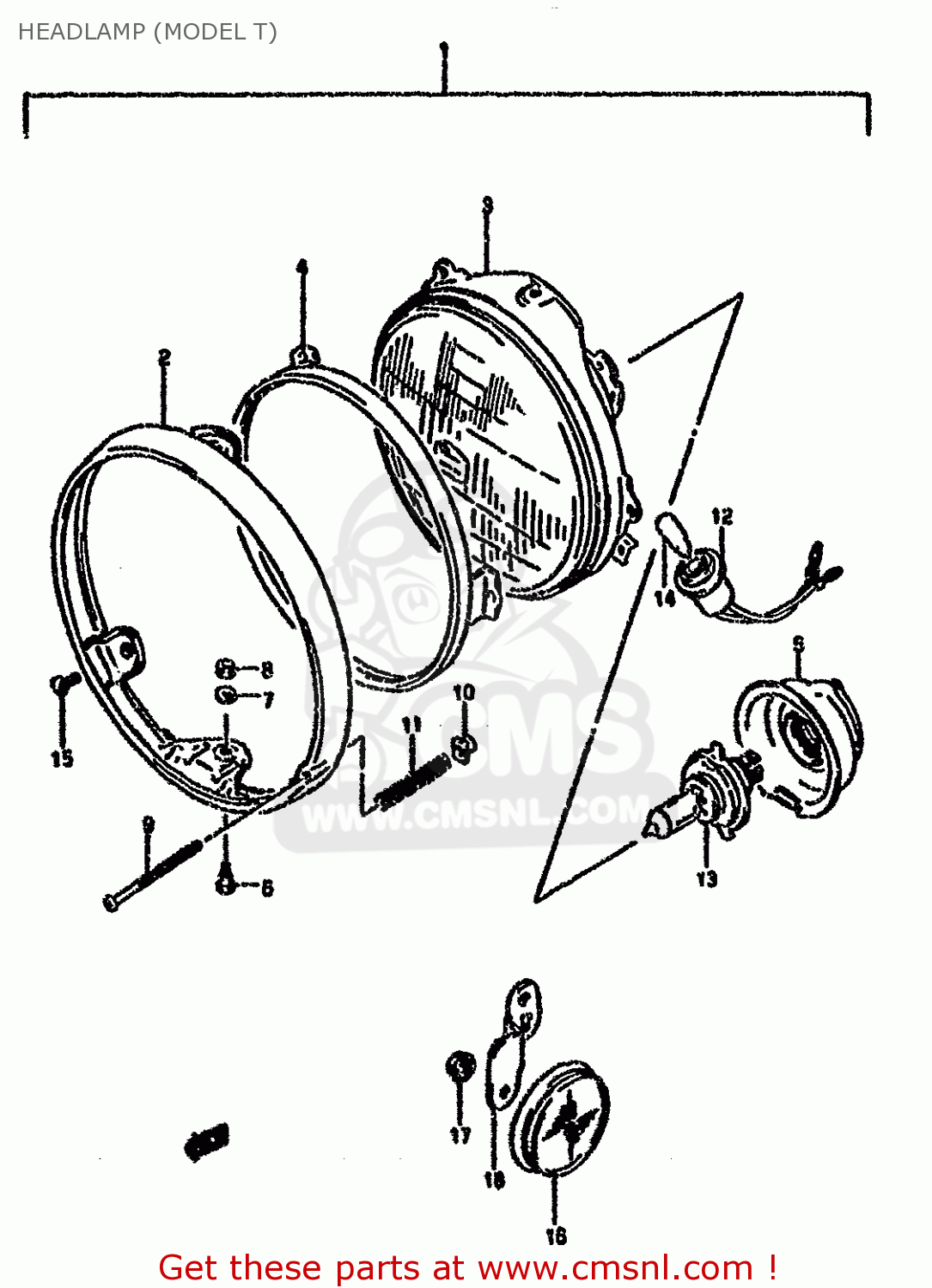

Headlamp (model t) diagram VX800 1996 (T) (E04 E18 E21 E22 E25)
HEADLAMP (MODEL T) VX800 1996 (T) (E04 E18 E21 E22 E25)
×
prices are in EUR
ref
part #
description
quantity
1
3510026D50999
ref: 1
HEADLAMP ASSY
€ 272.00
2
3511101D20
ref: 2
RIM,HEADLAMP
€ 55.50
3
3512110D40
ref: 3
LAMP UNIT
€ 147.00
4
3512710D20
ref: 4
RING
€ 22.00
5
3517320A01
ref: 5
COVER,SOCKET
€ 14.50
6
3518115611
ref: 6
H/LAMP LENS UNIT FITING SCRE
€ 3.00
7
0832101057
ref: 7
WASHER,LOCK
€ 2.00
8
0831000053
ref: 8
NUT
€ 2.50
9
3515145900
ref: 9
SCREW
€ 4.00
10
3515215611
ref: 10
NUT
€ 3.50
11
3515431900
ref: 11
SPRING,ADJUSTING
€ 3.50
12
3611826D50
ref: 12
SOCKET,PARKING LAMP
€ 19.00
13
0947112060
ref: 13
BULB(12V60/55W,H4)
€ 8.00
14
0947112063
ref: 14
BULB(12V4W)
€ 6.00
15
0212205127
ref: 15
SCREW
€ 2.50
16
3595014A00
ref: 16
E18
REFLECTOR,REFLEX FR
€ 15.00
17
0831000053
ref: 17
E18
NUT
€ 2.50
18-1
3595645C01
ref: 18-1
E18
BRACKET,SIDE REFLECTOR
€ 0.00
18-2
3595745C01
ref: 18-2
E18
BRACKET,SIDE REFLECTOR
€ 0.00
17-2
0831000053
ref: 17-2
MODEL R E18
NUT
€ 2.50
18-1
3595645C01
ref: 18-1
E18
BRACKET,SIDE REFLECTOR
€ 0.00
18-2
3595745C01
ref: 18-2
E18
BRACKET,SIDE REFLECTOR
€ 0.00
22
0212205127
ref: 22
SCREW
€ 2.50
23
3595014A00
ref: 23
E39
REFLECTOR,REFLEX FR
€ 15.00
24
0831620053
ref: 24
E39
NUT
€ 2.00
25-1
3595645C00
ref: 25-1
E39
BRACKET,FRONT SIDE,REAR
€ 0.00
25-2
3595745C00
ref: 25-2
E39
BRACKET,FRONT SIDE,REAR
€ 0.00
