BALANCER CHAIN

DR500S 1984 (E)

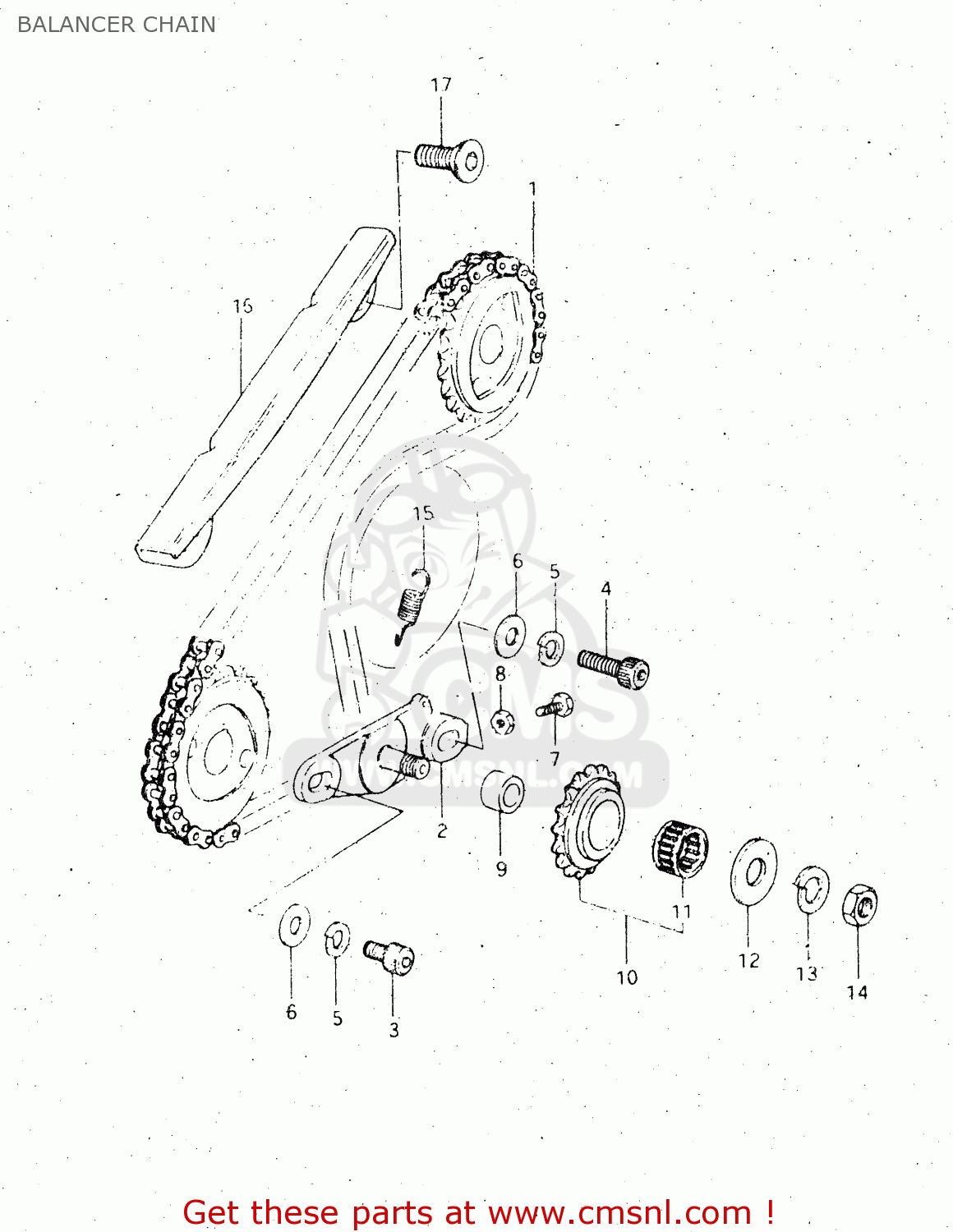

Balancer chain diagram DR500S 1984 (E)

BALANCER CHAIN DR500S 1984 (E)

BALANCER CHAIN DR500S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

1267037440
ref: 1

GOVERNOR ASSEMBLY,EXHAUST

€ 111.50

2

1268137401
ref: 2

BRACKET,BALANCER CHAIN TENSIONER

€ 0.00

3

0910608005
ref: 3

BOLT(8X22)

€ 2.00

4

0711008305
ref: 4
FROM 09106-08013

BOLT, REAR (8X30)

€ 3.00

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

0832221088
ref: 6

WASHER

€ 2.00

7

0910005006
ref: 7

BOLT 5X20

€ 1.50

8

0831022058
ref: 8

NUT

€ 2.50

9

1268437400
ref: 9

SPACER,TENSIONER SPROCKET

€ 8.50

10

1268537452
ref: 10

ROD,EXHAUST VALVE

€ 75.00

11

0926317007
ref: 11

BEARING(17X23X12)

€ 13.00

12

0821112303
ref: 12

WASHER

€ 2.50

13

0832121128
ref: 13

WASHER,LOCK 12

€ 2.50

14

0914012021
ref: 14

NUT

€ 2.50

15

0944310022
ref: 15

SPRING

€ 4.00

16

1269537451
ref: 16

GUIDE,BALANCER CHAIN

€ 17.50

17

0912008005
ref: 17

SCREW

€ 1.50
