REAR WHEEL
DR500S 1984 (E)

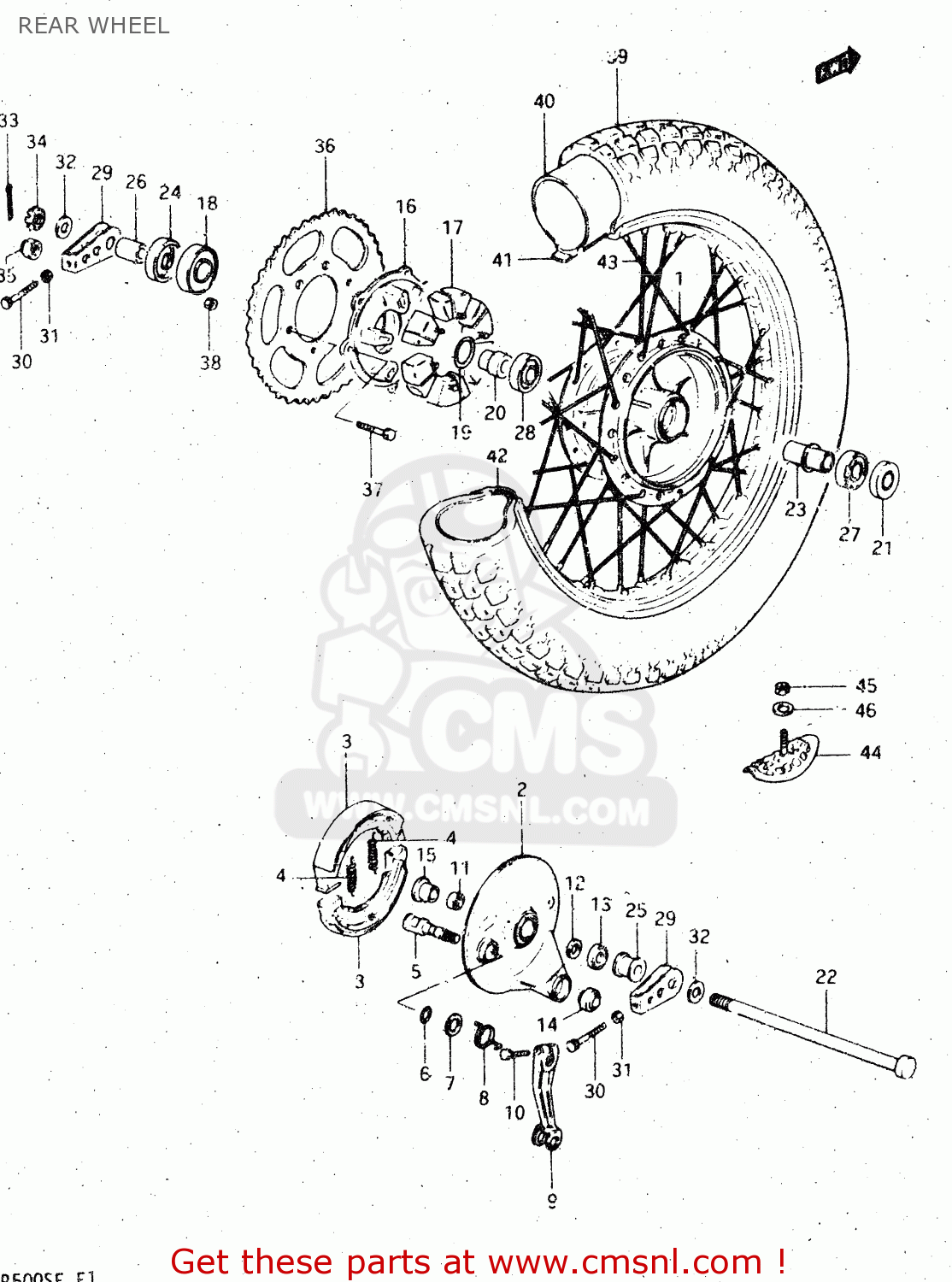

Rear wheel diagram DR500S 1984 (E)
REAR WHEEL DR500S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
6411037200
ref: 1
DRUM,REAR HUB
€ 234.00
2
6421037200
ref: 2
PANEL,REAR HUB
€ 129.50
3
5441032400
ref: 3
SHOE,BRAKE (MCA)
€ 35.00
4
5542041100
ref: 4
SPRING
€ 5.50
5
5444008003
ref: 5
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
€ 2.50
8
0944833006
ref: 8
SPRING
€ 11.00
9
6445137400
ref: 9
LEVER,REAR BRAKE CAM
€ 13.50
10
0110706258
ref: 10
BOLT
€ 2.00
11
0926324013
ref: 11
BEARING(24X31X28)
€ 25.00
12
0821117361
ref: 12
WASHER
€ 2.00
13
6484537200
ref: 13
CVR,RR BRAKE AHR PNL DUST SEAL
€ 12.00
14
6435240401
ref: 14
SPHERICAL BRNG,TORQUE LINK
€ 69.50
15
6421337200
ref: 15
SPACER,REAR HUB PANEL
€ 25.00
16
6461137400
ref: 16
DRUM,REAR SPROCKET MOUNT
€ 94.00
17
6465137200
ref: 17
ABSORBER,RR HUB SHOCK
€ 10.00
18
0811362057
ref: 18
BEARING
€ 18.00
19
0928058001
ref: 19
O-RING
€ 3.00
20
6473337200
ref: 20
SPACER,REAR SPROCKET DRUM
€ 13.00
21
0928555002
ref: 21
OIL SEAL
€ 9.00
22
6471133000
ref: 22
AXLE,REAR
€ 33.50
23
6473037200
ref: 23
SPACER,REAR HUB BEARING
€ 13.00
24
0928530001
ref: 24
SEAL,OIL(30.5X52X8)
€ 20.00
25
6474137200
ref: 25
SPACER,REAR AXLE,RIGHT
€ 17.00
26
0918017055
ref: 26
SPACER(17X30.5X16.3)
€ 8.00
27
0814362037
ref: 27
BEARING
€ 18.50
28
0814363037
ref: 28
BEARING
€ 23.00
29
6141037200
ref: 29
ADJUSTER,CHAIN
€ 7.50
30
0910408006
ref: 30
BOLT
€ 3.00
31
0831012088
ref: 31
NUT
€ 2.00
32
0916017013
ref: 32
WASHER (17X30X3.2)
€ 2.00
33
0411140308
ref: 33
PIN,COTTER
€ 1.50
34
0914116001
ref: 34
NUT
€ 6.50
35
0915916002
ref: 35
E22
NUT
€ 5.00
36
6451137320
ref: 36
SPROCKET,RR(NT:45)
€ 47.50
37
0910010162
ref: 37
BOLT
€ 2.00
38
0831931108
ref: 38
NUT
€ 3.00
39
6510037411
ref: 39
IRC
TIRE
€ 0.00
40
6520049015
ref: 40
TUBE,INNER
€ 39.00
41
6526115010
ref: 41
PROTECTOR,WHEEL,INNER
€ 3.50
42
6531137220
ref: 42
RIM,REAR WHEEL
€ 133.00
43
6532037201
ref: 43
SPOKE ASSY,RR WHEEL
€ 79.00
44
6527014200
ref: 44
STOPPER,BEAD
€ 38.00
45
0831012088
ref: 45
NUT
€ 2.00
46
0832211088
ref: 46
WASHER
€ 2.00
