HEADLAMP HOUSING

DR500S 1984 (E)

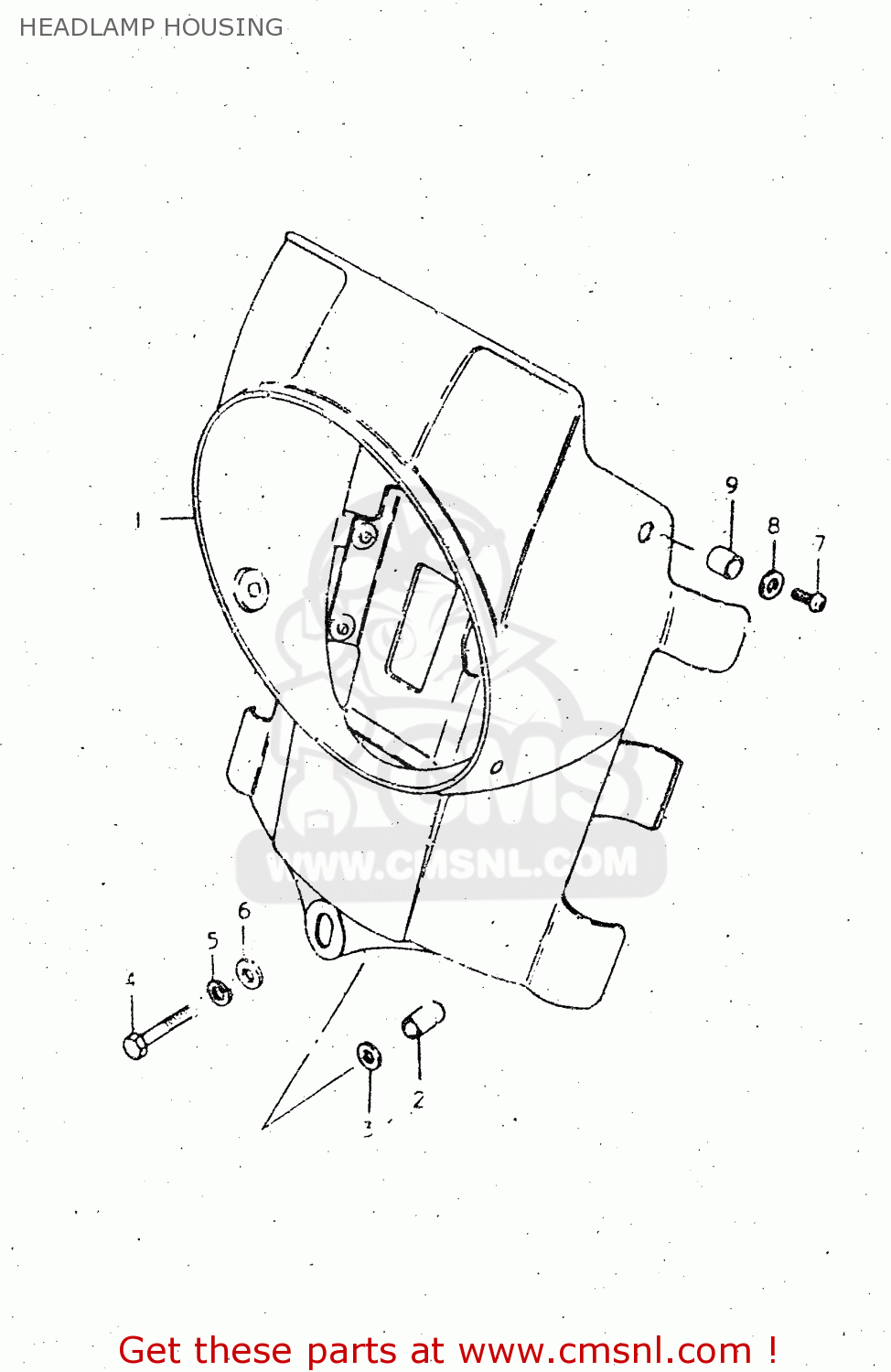

Headlamp housing diagram DR500S 1984 (E)

HEADLAMP HOUSING DR500S 1984 (E)

HEADLAMP HOUSING DR500S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1-1

5181048505019
ref: 1-1

HOUSING, HEADLAMP (BLACK)

€ 68.00

1-2

518104850505K
ref: 1-2

HOUSING, HEADLAMP (BLUE)

€ 71.50

1-3

518104850510V
ref: 1-3

HOUSING, HEADLAMP (WHITE)

€ 71.50

1-4

5181048505163
ref: 1-4

HOUSING, HEADLAMP (YELLOW)

€ 71.50

1-5

518104850507P
ref: 1-5
MODEL D

HOUSING, HEADLAMP (RED)

€ 62.00

1-6

518104850514C
ref: 1-6
MODEL E

HOUSING, HEADLAMP (RED)

€ 71.50

2

0918006046
ref: 2

SPACER (6.5X10.5X13.5)

€ 3.50

3

0916006007
ref: 3

WASHER

€ 2.00

4

0110706308
ref: 4

BOLT

€ 2.50

5

0832121068
ref: 5

LOCK WASHER

€ 2.50

6

0916006027
ref: 6

WASHER (6.5X20X1.2)

€ 2.00

7

0211205128
ref: 7

SCREW

€ 2.50

8

0916005006
ref: 8

WASHER (5.5X18X1.6)

€ 4.00

9

0918005015
ref: 9

SPACER (5.5X8X4)

€ 3.00
