REAR COMBINATION LAMP (E18)
DR500S 1984 (E)

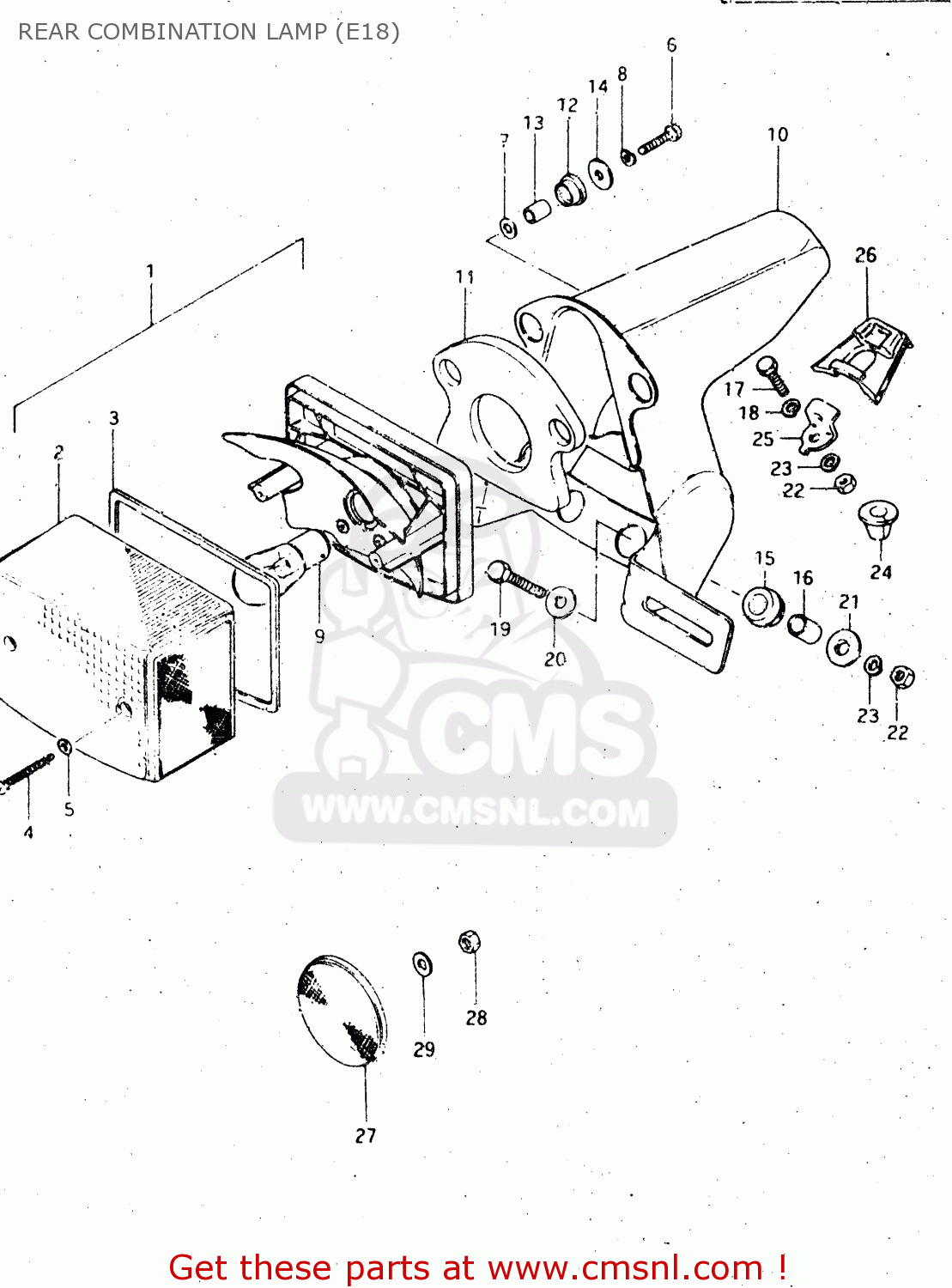

Rear combination lamp (e18) diagram DR500S 1984 (E)
REAR COMBINATION LAMP (E18) DR500S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
3572037481
ref: 1
LAMP UNIT,RR COMBNATION
€ 86.50
2
3571248524
ref: 2
LENS,RR COMBINATION
€ 26.00
3
3571348510
ref: 3
GASKET (NAS)
€ 8.50
4
0321104308
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0211205258
ref: 6
SCREW
€ 2.00
7
0832221058
ref: 7
WASHER
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
€ 2.00
9
0947106042
ref: 9
BULB (6V,21/5W)
€ 12.50
10
3573037480
ref: 10
BRACKET ASSY
€ 0.00
11
3576537410
ref: 11
CUSHION,REAR COMBINATION LAMP
€ 4.50
12
3576437410
ref: 12
CUSHION,REAR COMBINATION LAMP
€ 3.00
13
3576636510
ref: 13
SPACER,REAR COMBINATION LAMP
€ 5.50
14
3572737410
ref: 14
WASHER,REAR COMBINATION LAMP
€ 2.00
15
3576532410
ref: 15
CUSHION,REAR COMBINATION LAMP
€ 3.00
16
3576637120
ref: 16
SPACER
€ 2.50
17
0110706208
ref: 17
BOLT
€ 2.00
18
0832121068
ref: 18
LOCK WASHER
€ 2.50
19
0110706308
ref: 19
BOLT
€ 2.50
20
0916006027
ref: 20
WASHER (6.5X20X1.2)
€ 2.00
21
0916906016
ref: 21
WASHER
€ 1.50
22
0831011066
ref: 22
NUT
€ 2.00
23
0832221066
ref: 23
WASHER, LOWER
€ 2.00
24
0930807004
ref: 24
GROMMET
€ 2.50
25
3579337401
ref: 25
PLATE
€ 0.00
26
3571737400
ref: 26
CUSHION
€ 9.50
27
3597045611
ref: 27
REFLECTOR,REFLEX
€ 47.50
28
0831011056
ref: 28
NUT
€ 2.50
29
0832221056
ref: 29
WASHER
€ 2.50
