TURN SIGNAL LAMP (E1, E6, E24)
DR500S 1984 (E)

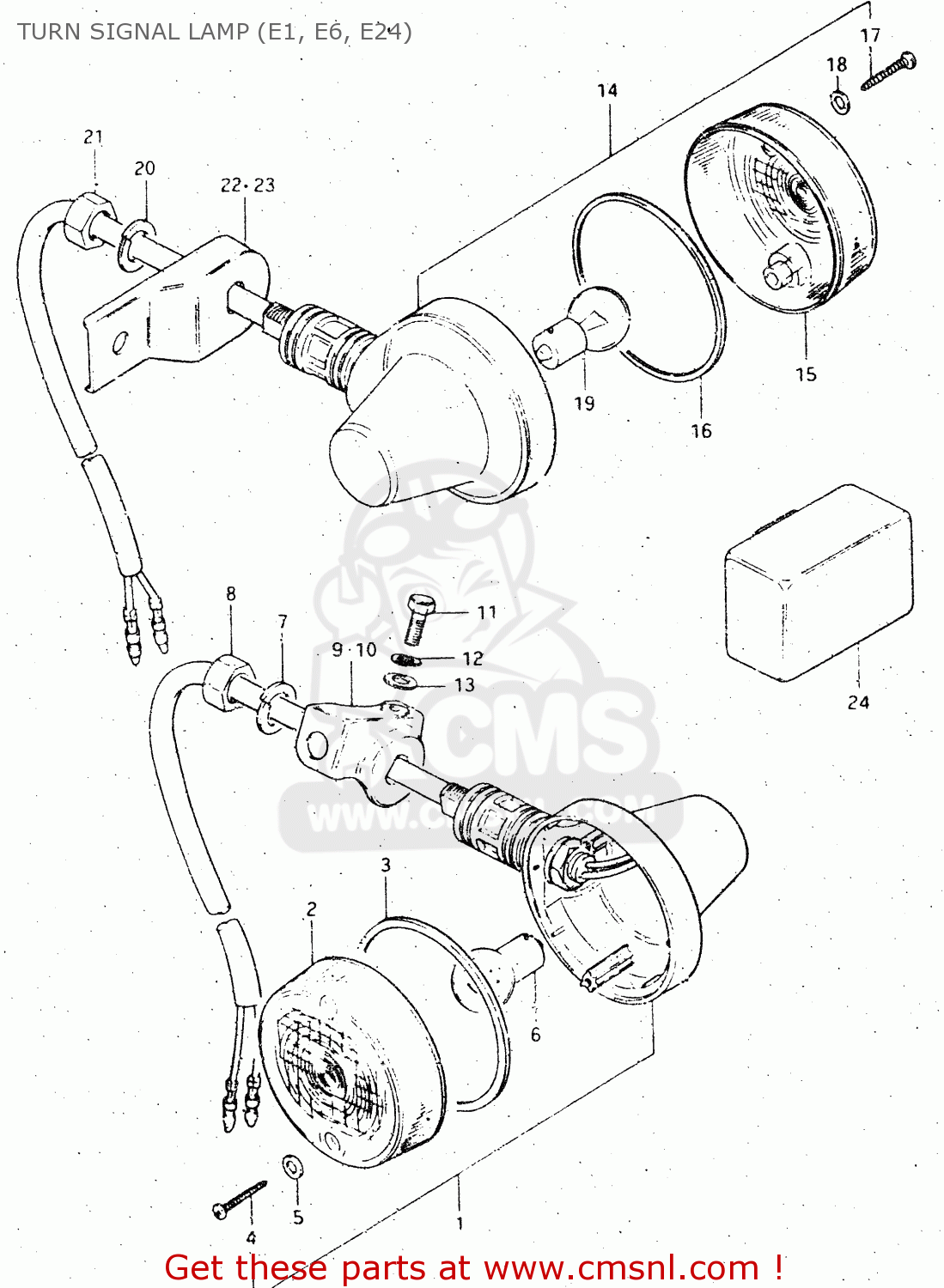

Turn signal lamp (e1, e6, e24) diagram DR500S 1984 (E)
TURN SIGNAL LAMP (E1, E6, E24) DR500S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
3560148522999
ref: 1
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 72.50
2
3561248530
ref: 2
LENS
€ 7.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0321104258
ref: 4
SCREW TAPP.
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106011
ref: 6
BULB(6V17W,STANLEY,A4513A)
€ 9.50
7
0832121125
ref: 7
WASHER
€ 2.50
8
0831012125
ref: 8
NUT 12MM
€ 2.50
9
512512990008C
ref: 9
BRACKET,TURN SIGNAL LAMP
€ 7.50
10
512522990008C
ref: 10
BRACKET,TURN SIGNAL LAMP
€ 7.50
11
0110706128
ref: 11
BOLT
€ 2.00
12
0832121068
ref: 12
LOCK WASHER
€ 2.50
13
0832221068
ref: 13
WASHER
€ 2.00
14
3560348532999
ref: 14
LAMP ASSY,RR TURNSIGNAL
€ 72.50
15
3561248530
ref: 15
LENS
€ 7.50
16
3561328620
ref: 16
GASKET (NAS)
€ 7.00
17
0321104258
ref: 17
SCREW TAPP.
€ 2.00
18
3562743010
ref: 18
GASKET (NAS)
€ 2.00
19
0947106011
ref: 19
BULB(6V17W,STANLEY,A4513A)
€ 9.50
20
0832121125
ref: 20
WASHER
€ 2.50
21
0831012125
ref: 21
NUT 12MM
€ 2.50
22
3562037400
ref: 22
BRACKET,REAR TURN SIGNAL
€ 5.50
23
3564037400
ref: 23
BRACKET,REAR TURN SIGNAL
€ 5.50
24-1
3861048600
ref: 24-1
MODEL D
RELAY,TURN SIGNAL
€ 46.50
24-2
3861005200
ref: 24-2
MODEL E
RELAY,TURN SIGNAL
€ 46.50
