HEADLAMP (MODEL D E2)

DR500S 1984 (E)

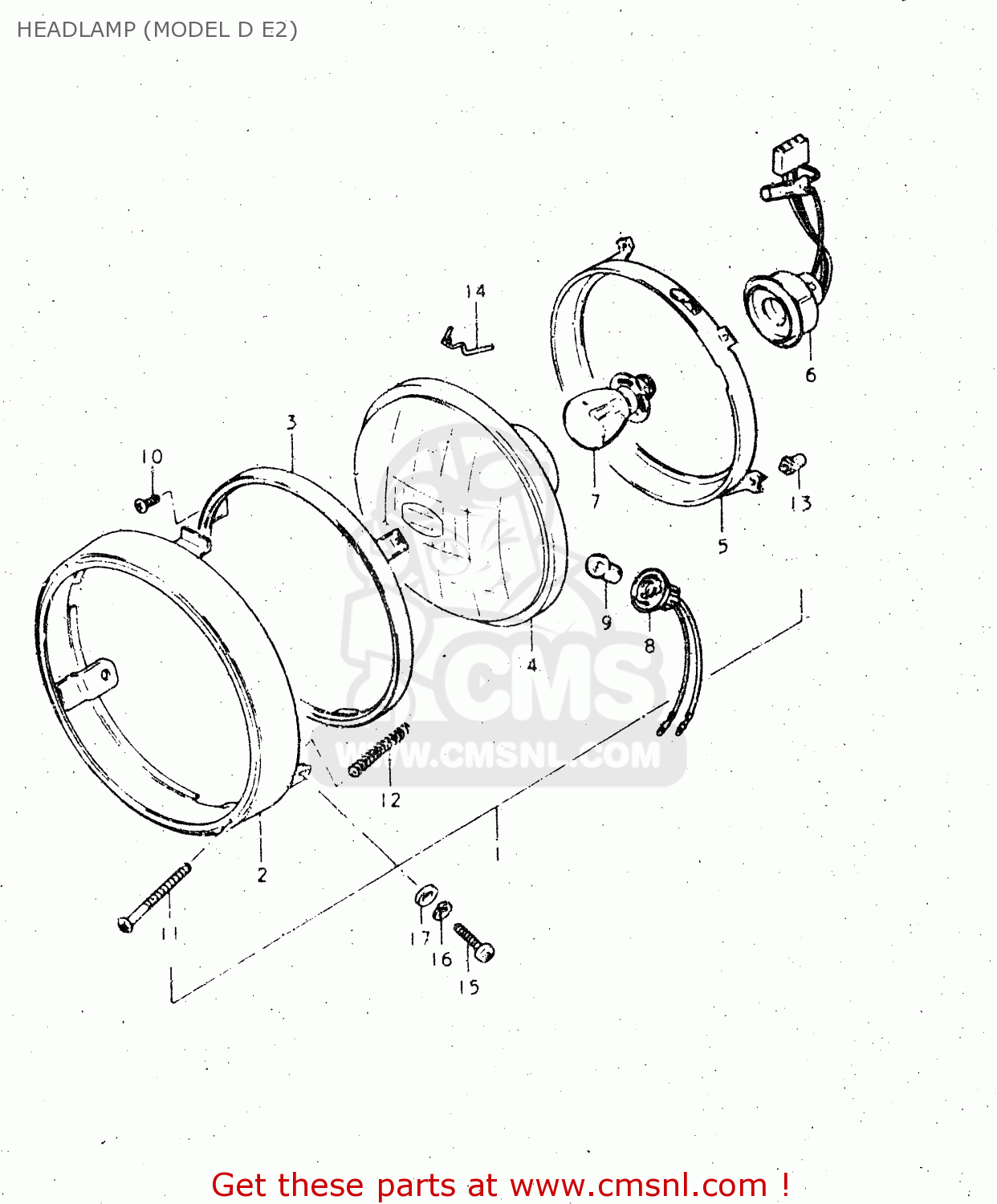

Headlamp (model d e2) diagram DR500S 1984 (E)

HEADLAMP (MODEL D E2) DR500S 1984 (E)

HEADLAMP (MODEL D E2) DR500S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

3510037220
ref: 1

HEADLAMP ASSY

€ 208.50

2

3511148530
ref: 2

RIM

€ 34.00

3

3512748530
ref: 3

RETAINER,HEADLAMP

€ 13.00

4

3512132440
ref: 4

UNIT

€ 55.00

5

3513048540
ref: 5

RING, MOUNTING

€ 18.00

6

3517137220
ref: 6

SOCKET

€ 0.00

7

0947106043
ref: 7

BULB(6V,35/35W)

€ 7.00

8

3611830500
ref: 8

SOCKET

€ 10.00

9

0947106002
ref: 9

BULB(6V/3W)

€ 2.50

10

0211204088
ref: 10

SCREW

€ 1.50

11

3515133611
ref: 11

SCREW,HEADLAMP ADJUST

€ 4.00

12

3515431900
ref: 12

SPRING,ADJUSTING

€ 3.50

13

3515248530
ref: 13

NUT,HEADLAMP ADJUSTER

€ 2.00

14

3512848530
ref: 14

SPRING,HEADLAMP UNIT

€ 3.50

15

0211205168
ref: 15

SCREW

€ 2.50

16

0832121058
ref: 16

LOCK WASHER

€ 2.00

17

0832221058
ref: 17

WASHER

€ 2.50
