RIGHT HANDLE SWITCH

DR500S 1984 (E)

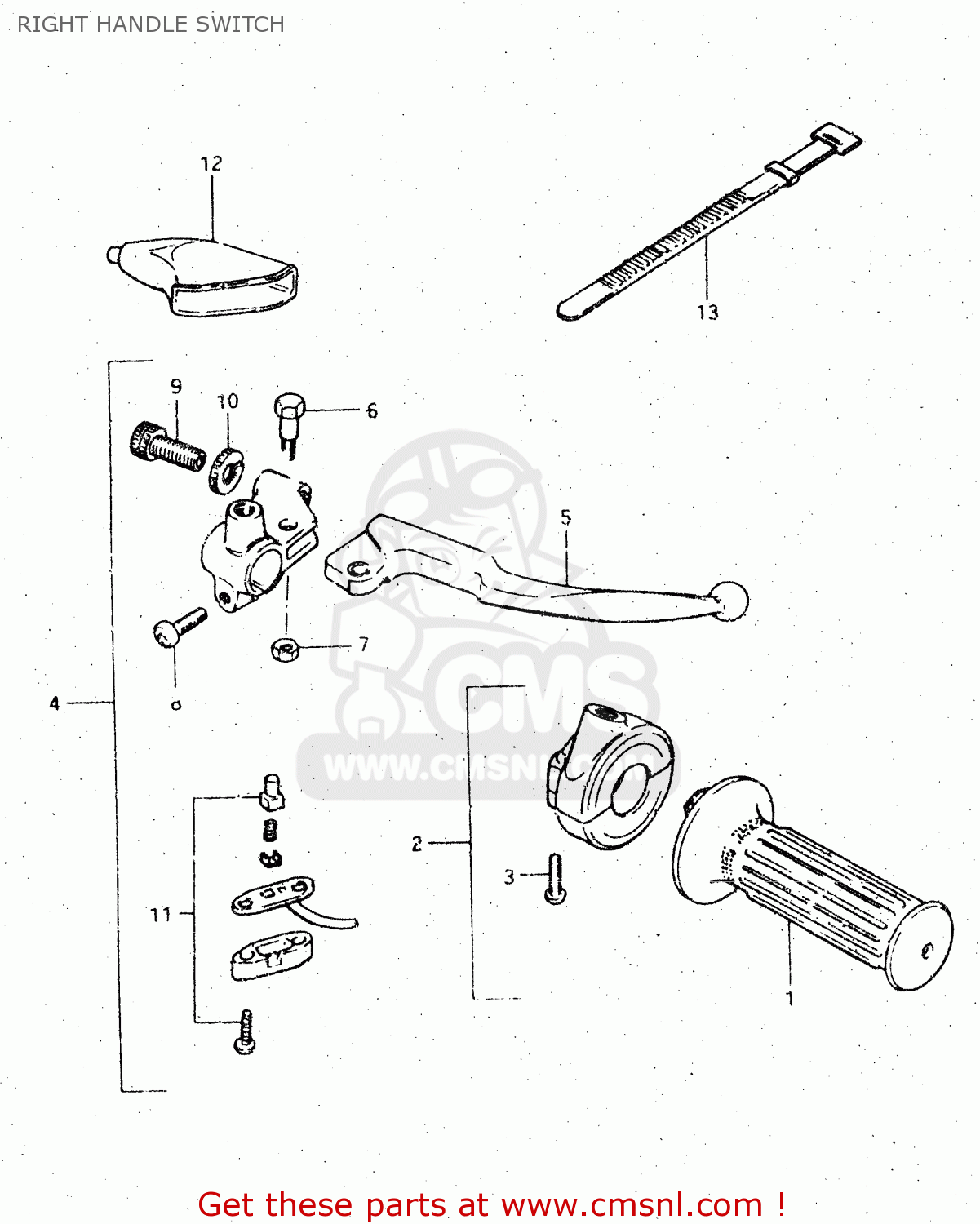

Right handle switch diagram DR500S 1984 (E)

RIGHT HANDLE SWITCH DR500S 1984 (E)

RIGHT HANDLE SWITCH DR500S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

5711037200
ref: 1

GRIP,THROTTLE

€ 20.50

2

5710037400
ref: 2

CASE ASSY,THROTTLE

€ 52.50

3

0211205208
ref: 3

SCREW 5X20

€ 3.00

4

5730038210
ref: 4

LEVER ASSEMBLY,BRAKE

€ 35.00

5

5742026400
ref: 5

LEVER,BRAKE

€ 28.50

6

5743111011
ref: 6

BOLT,LEVER

€ 6.00

7

0831921068
ref: 7

NUT 6MM

€ 2.00

8

0211206208
ref: 8

SCREW

€ 2.00

9

5744111010
ref: 9

ADJUSTER,CABLE

€ 8.00

10

5744211010
ref: 10

NUT,CABLE ADJUSTER

€ 4.00

11

5746010300
ref: 11

SWITCH ASSEMBLY

€ 18.50

12

5734125601
ref: 12

DUST SEAL,BRAKE/CLUTCH

€ 10.00

13

0940712403
ref: 13

CLAMP

€ 3.00
