LEFT HANDLE SWITCH
DR500S 1984 (E)

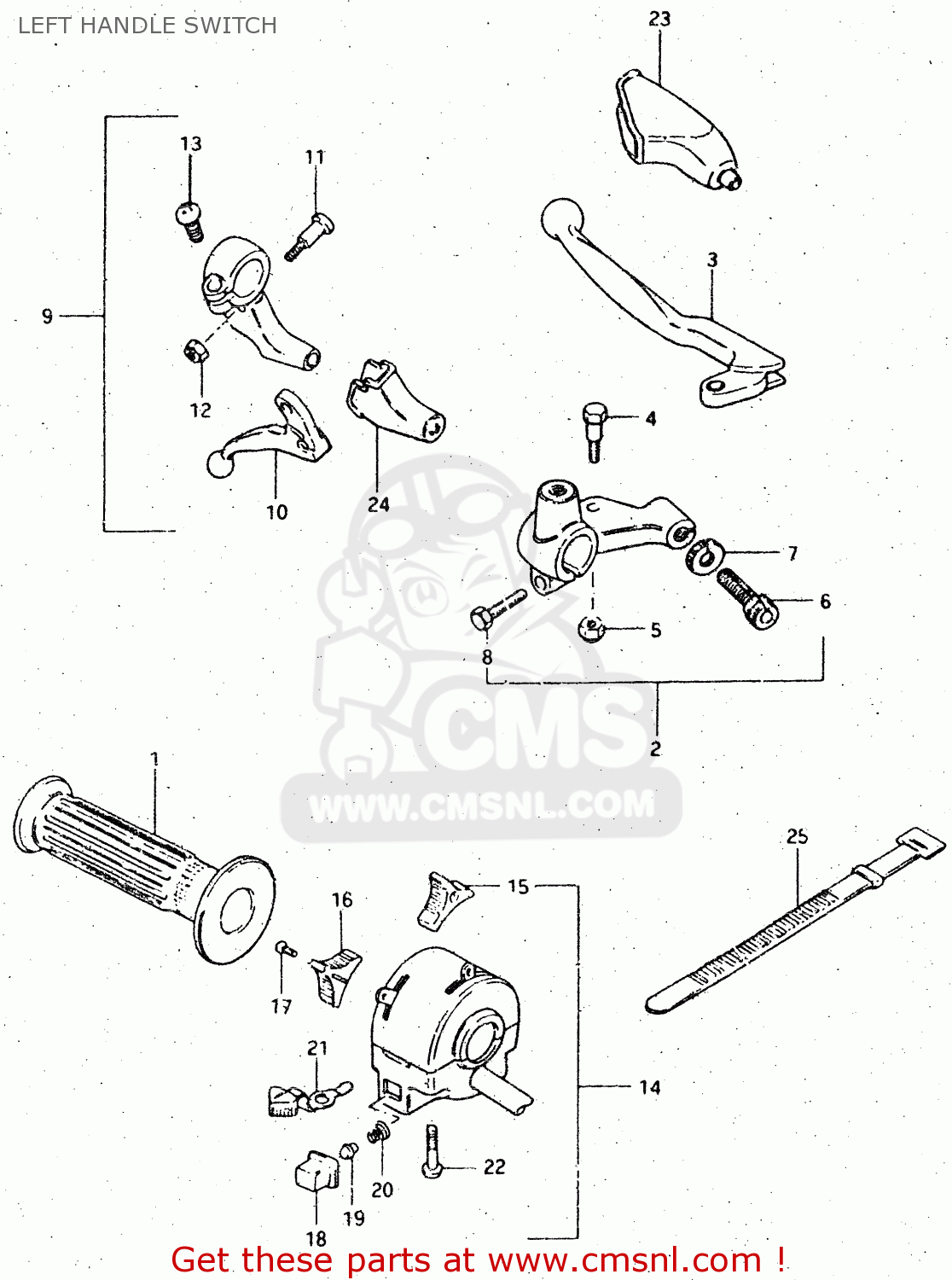

Left handle switch diagram DR500S 1984 (E)
LEFT HANDLE SWITCH DR500S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
5721145020
ref: 1
GRIP,L
€ 9.00
2
5750037200
ref: 2
LEVER ASSY,CLUTCH
€ 49.50
3
5762049101
ref: 3
LEVER,CLUTCH
€ 28.50
4
5743111011
ref: 4
BOLT,LEVER
€ 6.00
5
0831921068
ref: 5
NUT 6MM
€ 2.00
6
5744111010
ref: 6
ADJUSTER,CABLE
€ 8.00
7
5744211010
ref: 7
NUT,CABLE ADJUSTER
€ 4.00
8
5745149100
ref: 8
BOLT,CLUTCH LEVER HOLDER
€ 3.00
9
5870038200
ref: 9
LEVER ASSEMBLY,DECOMPRESSION
€ 169.50
10
5873138200
ref: 10
LEVER,DECOMP
€ 42.00
11
5743101011
ref: 11
BOLT,LEVER
€ 5.00
12
5763338200
ref: 12
NUT
€ 2.00
13
0211206208
ref: 13
SCREW
€ 2.00
14-1
3740037410
ref: 14-1
SWITCH ASSY, HANDLE LH
€ 123.00
14-2
3740037440
ref: 14-2
E4,E18,E25,E34
SWITCH ASSY, HANDLE LH
€ 104.50
14-3
3740037490
ref: 14-3
E22,E39
SWITCH ASSY, HANDLE LH
€ 76.50
15
3741145012
ref: 15
KNOB,LIGHTING SWITCH
€ 4.50
16-1
3742145012
ref: 16-1
KNOB,DIMMER SWITCH
€ 5.50
16-2
3742132430
ref: 16-2
E22,E39
KNOB, DIMMER
€ 2.50
17
0212203068
ref: 17
SCREW
€ 1.00
18
5737145000
ref: 18
BUTTON,HORN
€ 3.00
19
5737245000
ref: 19
CONTACT
€ 3.00
20-1
5738245000
ref: 20-1
SPRING
€ 2.50
20-2
5738237390
ref: 20-2
E22,E39
SPRING
€ 0.00
21
3751345011
ref: 21
KNOB,TURNSIGNAL
€ 6.50
22
0211205258
ref: 22
SCREW
€ 2.00
23
5734140001
ref: 23
COVER,CLUTCH LEVER
€ 7.50
24
5734237101
ref: 24
COVER,DECOMP LEVER DUST
€ 9.50
25
0940712403
ref: 25
CLAMP
€ 3.00
