CYLINDER

DR500S 1984 (E)

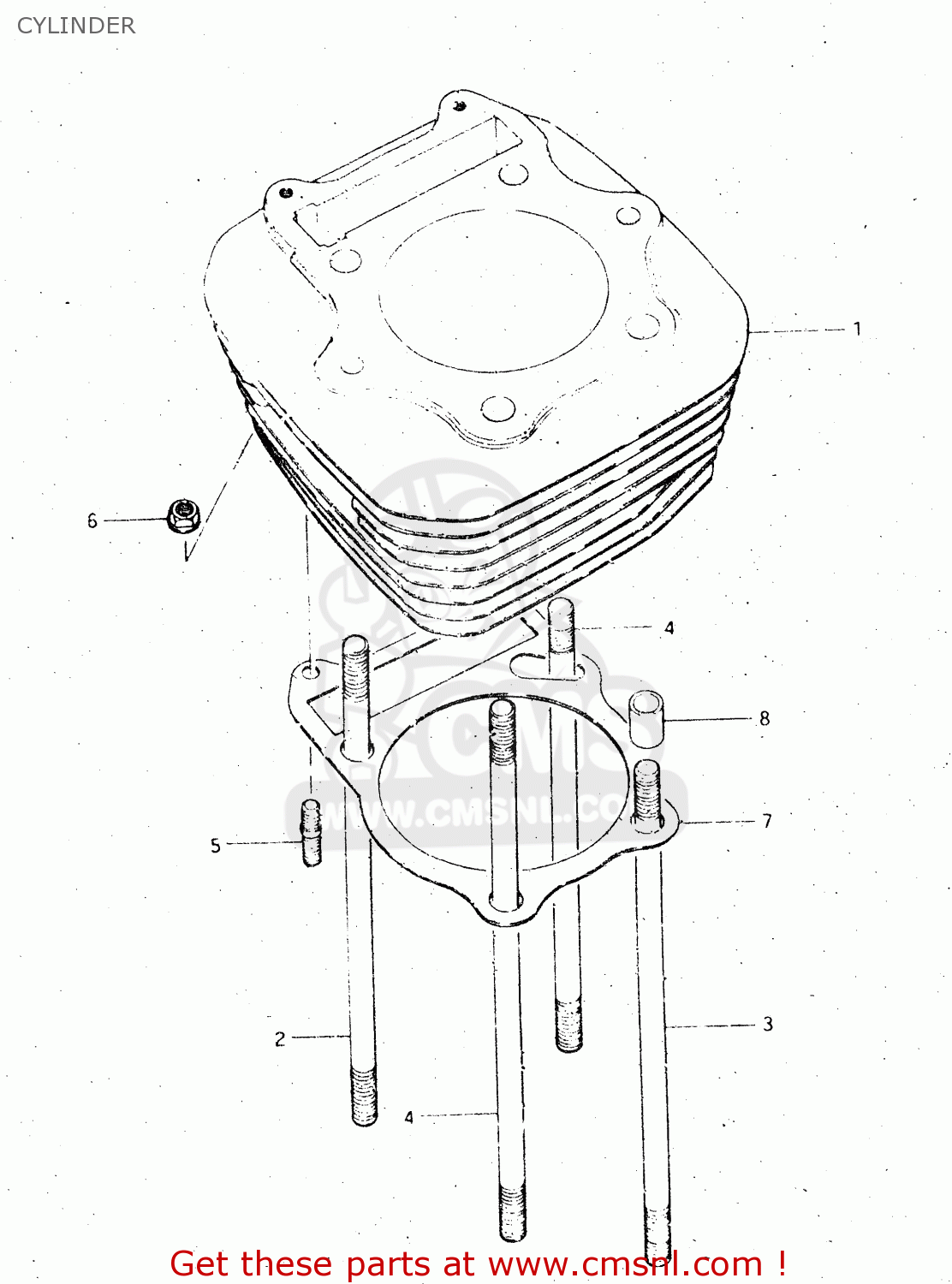

Cylinder diagram DR500S 1984 (E)

CYLINDER DR500S 1984 (E)
CYLINDER DR500S 1984 (E)
CYLINDER DR500S 1984 (E)
prices are in EUR
ref
part #
description
quantity
1
1121037403
ref: 1
CYLINDER
€ 468.50
2
0910810057
ref: 2
STUD
€ 7.00
3
0910810040
ref: 3
STUD
€ 4.00
4
0910810041
ref: 4
BOLT,STUD
0910810041
€ 9.00
5
0142106255
ref: 5
STUD 6X25
0142106255
€ 2.00
6
0831616065
ref: 6
NUT
€ 2.50
7
1124137410
ref: 7
GASKET,CYLINDER (NAS)
1124137410
€ 11.50
8
0920613001
ref: 8
PIN
0920613001
€ 2.50
