HANDLEBAR (MODEL D)
DR500S 1984 (E)

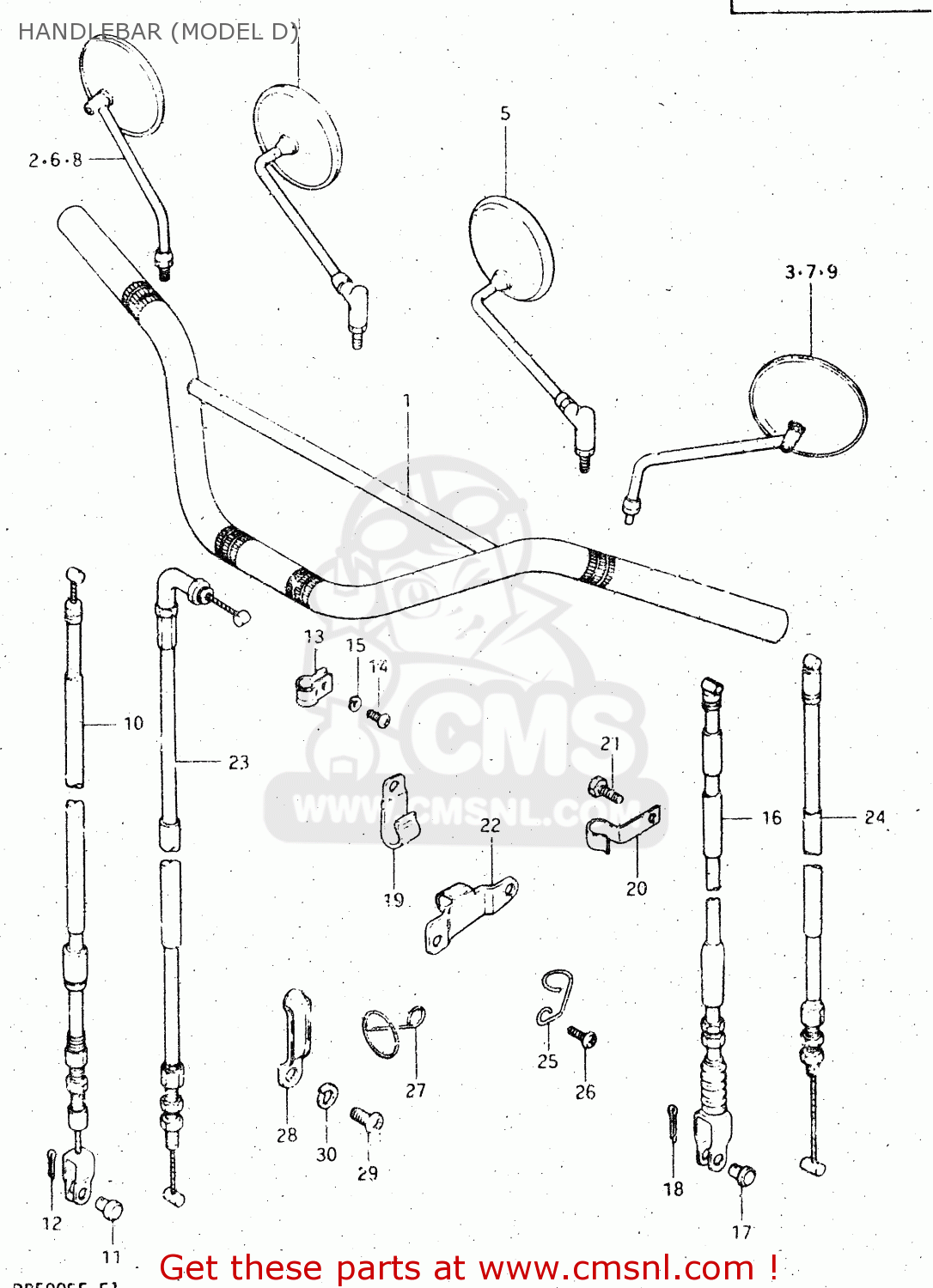

Handlebar (model d) diagram DR500S 1984 (E)
HANDLEBAR (MODEL D) DR500S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
5611037410291
ref: 1
HANDLEBAR (BLACK)
€ 59.50
2
5650045101
ref: 2
MIRROR ASSEMBLY,RIGHT
€ 59.50
3
5660045101
ref: 3
MIRROR ASSEMBLY,LEFT
€ 209.00
4
5650045640
ref: 4
E2
MIRROR ASSY,RH
€ 119.50
5
5650028601
ref: 5
E4
MIRROR ASSY,RH
€ 70.00
6
5650045111
ref: 6
E22
MIRROR ASSY,RR VIEW,R
€ 28.00
7
5660045111
ref: 7
E22
MIRROR, REAR VIEW LH
€ 30.50
8
5650045121
ref: 8
E18,E24
MIRROR ASSY RH
€ 209.00
9
5660045121
ref: 9
E18,E24
MIRROR ASSY
€ 209.00
10
5810041302
ref: 10
CABLE ASSEMBLY,FRONT BRAKE
€ 33.50
11
0920005001
ref: 11
PIN(L:17.5)
€ 1.50
12
0411120158
ref: 12
PIN
€ 1.50
13
5862140401
ref: 13
GUIDE,CABLE
€ 3.50
14
0211206108
ref: 14
SCREW
€ 1.50
15
0832121068
ref: 15
LOCK WASHER
€ 2.50
16
5820037400
ref: 16
CABLE ASSEMBLY,CLUTCH
€ 32.50
17
0920006011
ref: 17
PIN(L:15)
€ 2.50
18
0411120158
ref: 18
PIN
€ 1.50
19
0940300059
ref: 19
CLAMP
€ 3.50
20
5862637400
ref: 20
CLAMP,CLUTCH CABLE NO.1
€ 8.50
21
0110706108
ref: 21
BOLT
€ 2.00
22
5863437400
ref: 22
STOPPER,CLUTCH CABLE
€ 0.00
23
5830037450
ref: 23
CABLE ASSY,THROTTLE
€ 36.50
24
5890037400
ref: 24
CABLE ASSY,DECOMP
€ 18.50
25
5862117200
ref: 25
GUIDE
€ 5.50
26
0215206108
ref: 26
SCREW
€ 2.00
27
5862137400
ref: 27
GUIDE,CABLE
€ 0.00
28
0940307309
ref: 28
CLAMP
€ 2.00
29
0211206108
ref: 29
SCREW
€ 1.50
30
0832121068
ref: 30
LOCK WASHER
€ 2.50
