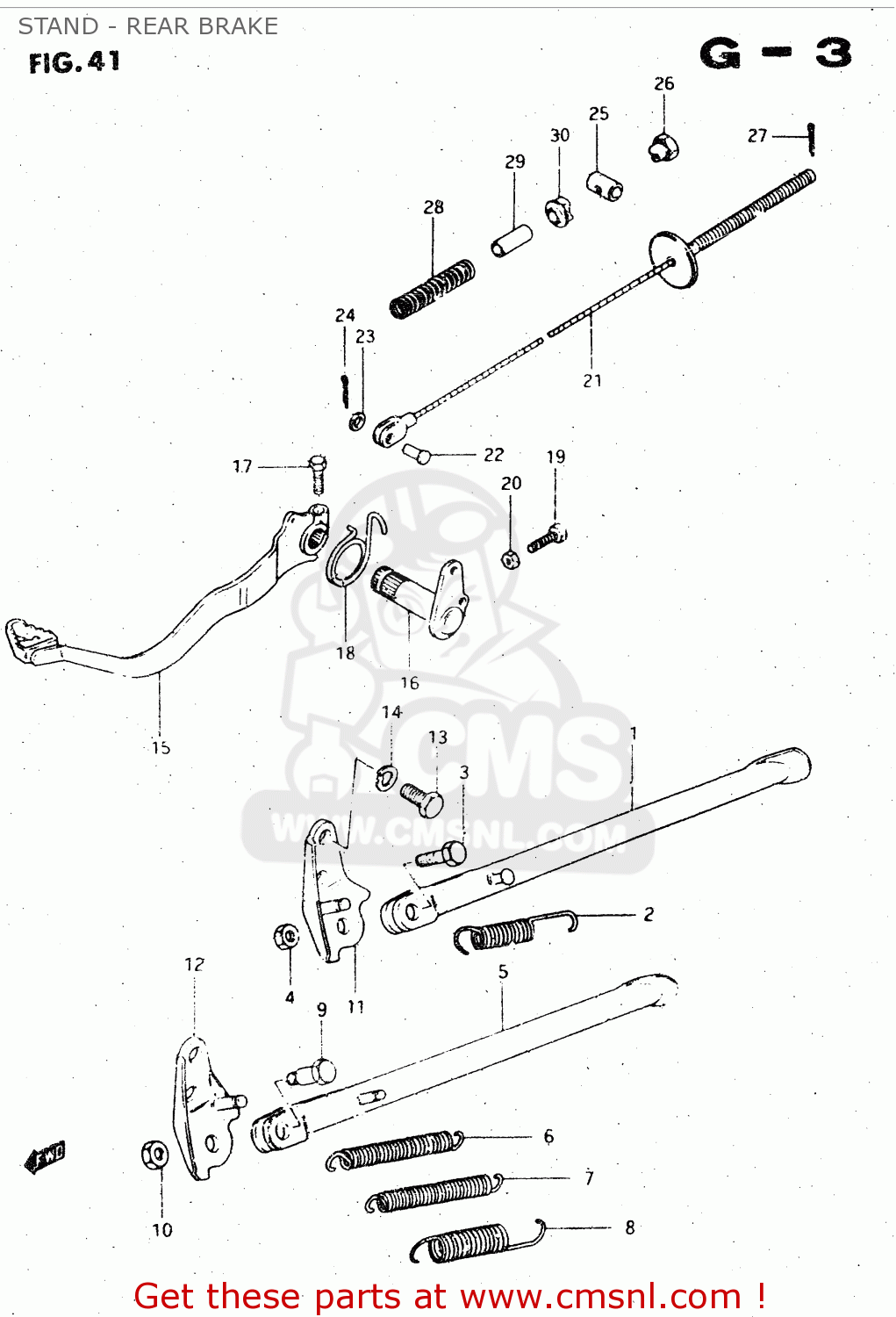

STAND - REAR BRAKE - DR500S 1984 (E)

ref

part #

description

quantity

1

4231032401
ref: 1

STAND,SIDE

€ 31.00

2

0944317007
ref: 2

SPRING

€ 4.50

3

0910010067
ref: 3

BOLT(10X30)

€ 3.50

4

0831022108
ref: 4

NUT

€ 2.50

5

4231032420
ref: 5
E18,E22

STAND, PROP

€ 29.50

6

0944315007
ref: 6
E18

SPRING

€ 6.00

7

0944314014
ref: 7
E22

SPRING

€ 5.50

8

0944322001
ref: 8
E22

SPRING, OUTER

€ 4.50

9

0911110019
ref: 9
E18,E22

BOLT L:30

€ 4.50

10

0831022108
ref: 10
E18,E22

NUT

€ 2.50

11

4233040400
ref: 11

BRACKET,PROP STAND

€ 65.00

12

4233037220
ref: 12
E18,E22

BRACKET, PROP STAND

€ 19.00

13

0910010118
ref: 13

BOLT(10X19)

€ 3.00

14

0832121108
ref: 14

LOCK WASHER

€ 2.00

15

4311037401
ref: 15

PEDAL,BRAKE

€ 47.00

16

4312037400
ref: 16

ARM,BRAKE PEDAL

€ 23.00

17

0110706208
ref: 17

BOLT

€ 2.00

18

0944825005
ref: 18

SPRING

€ 3.50

19

0910006009
ref: 19

BOLT(6X23)

€ 1.50

20

0831011068
ref: 20

NUT

€ 2.50

21

5851040400
ref: 21

CABLE,RR BRAKE

€ 19.50

22

0920005001
ref: 22

PIN(L:17.5)

€ 1.50

23

0832221068
ref: 23

WASHER

€ 2.00

24

0411120158
ref: 24

PIN

€ 1.50

25

4338037200
ref: 25

PIN,BRAKE CABLE ADJUSTER

€ 16.00

26

0915006009
ref: 26

NUT (6MM)

€ 3.50

27

0411120158
ref: 27

PIN

€ 1.50

28

0944011012
ref: 28

SPRING

€ 3.00

29

6115579000
ref: 29

CUSHION,FR GRILLE,UPPER

€ 13.00

30

4337037300
ref: 30

CUSHION

€ 5.50
