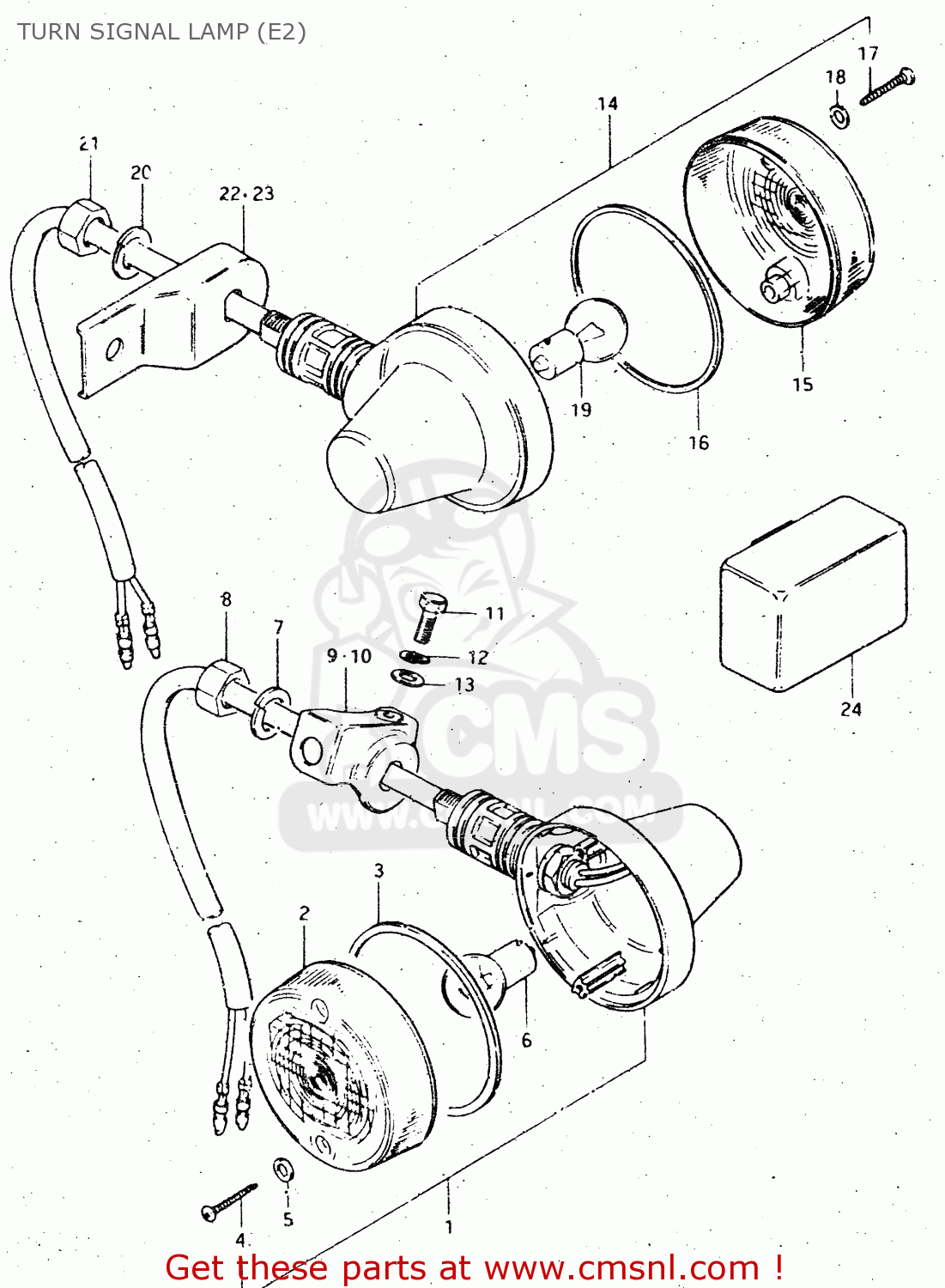

TURN SIGNAL LAMP (E2)

ref

part #

description

quantity

1-1

3560148522999
ref: 1-1
MODEL D

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 72.50

1-2

3560137481
ref: 1-2
MODEL E

LAMP, FRONT TURN SIGNAL

€ 72.50

2-1

3561248530
ref: 2-1
MODEL D

LENS

€ 7.50

2-2

3561248510
ref: 2-2
MODEL E

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104258
ref: 4

SCREW TAPP.

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6-1

0947106048
ref: 6-1
MODEL D

BULB (6V,18W)

€ 0.00

6-2

0947106033
ref: 6-2
MODEL E,EXECUTED LOC

BULB (6V,21W)

€ 0.00

7

0832121125
ref: 7

WASHER

€ 2.50

8

0831012125
ref: 8

NUT 12MM

€ 2.50

9

512512990008C
ref: 9

BRACKET,TURN SIGNAL LAMP

€ 7.50

10

512522990008C
ref: 10

BRACKET,TURN SIGNAL LAMP

€ 7.50

11

0110706128
ref: 11

BOLT

€ 2.00

12

0832121068
ref: 12

LOCK WASHER

€ 2.50

13

0832221068
ref: 13

WASHER

€ 2.00

14-1

3560348521999
ref: 14-1
MODEL D

LAMP ASSY,RR TURNSIGNAL

€ 72.50

14-2

3560337482
ref: 14-2
MODEL E,TO 35603-382

LAMP, REAR TURN SIGNAL

€ 0.00

15

3561248510
ref: 15

LENS

€ 10.50

16

3561328620
ref: 16

GASKET (NAS)

€ 7.00

17

0321104258
ref: 17

SCREW TAPP.

€ 2.00

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19-1

0947106048
ref: 19-1
MODEL D

BULB (6V,18W)

€ 0.00

19-2

0947106033
ref: 19-2
MODEL E,EXECUTED LOC

BULB (6V,21W)

€ 0.00

20

0832121125
ref: 20

WASHER

€ 2.50

21

0831012125
ref: 21

NUT 12MM

€ 2.50

22

3562037400
ref: 22
MODEL D

BRACKET,REAR TURN SIGNAL

€ 5.50

23

3564037400
ref: 23
MODEL D

BRACKET,REAR TURN SIGNAL

€ 5.50

24-1

3861048600
ref: 24-1
MODEL D

RELAY,TURN SIGNAL

€ 46.50

24-2

3861038200
ref: 24-2
MODEL E

RELAY, TURN SIGNAL

€ 51.50
