MAGNETO

DR500S 1984 (E)

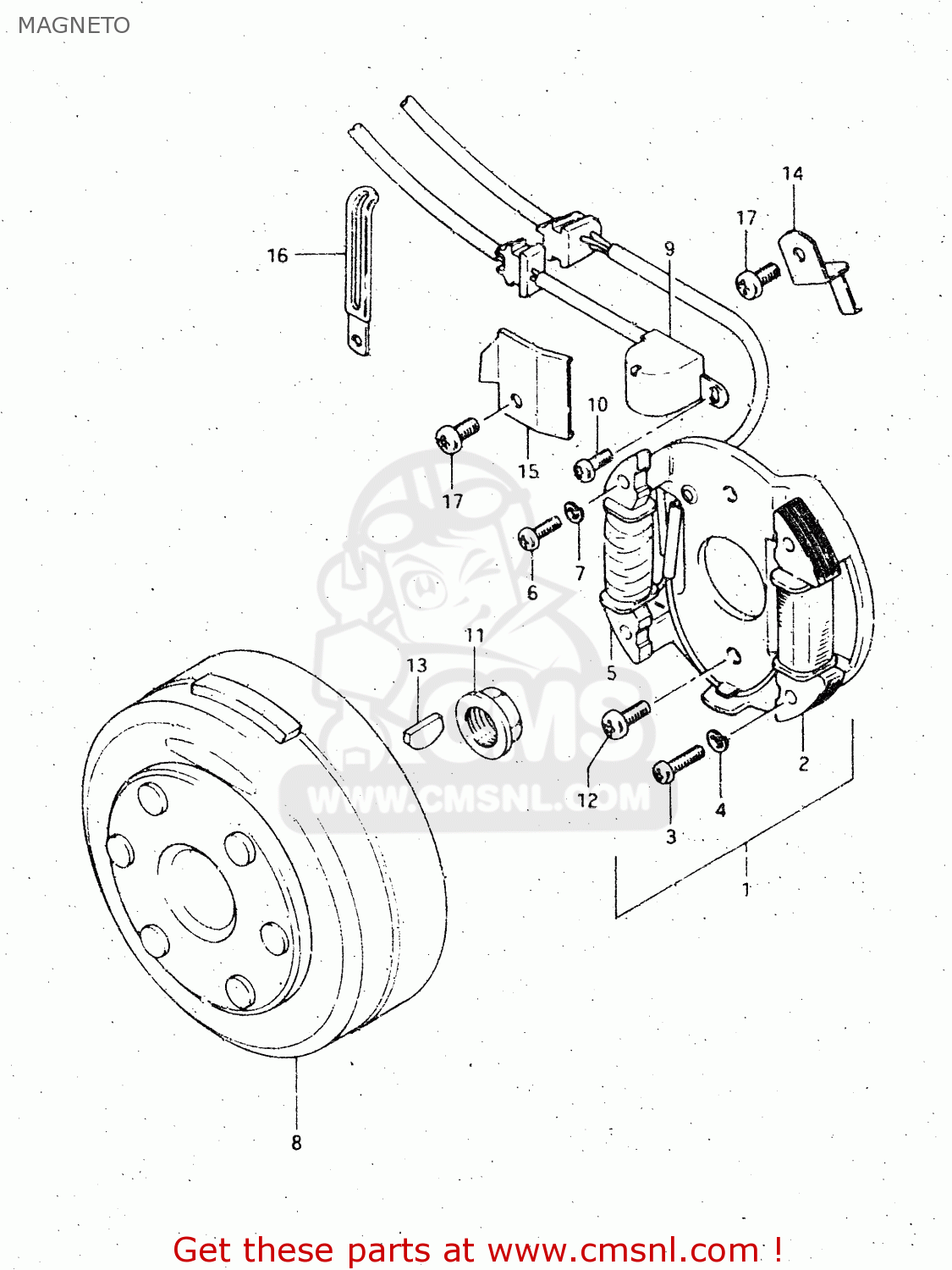

Magneto diagram DR500S 1984 (E)

MAGNETO DR500S 1984 (E)

MAGNETO DR500S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

3210137420
ref: 1

STATOR ASSEMBLY

€ 329.00

2

3212037420
ref: 2

COIL,LIGHTING

€ 112.50

3

0211205358
ref: 3

SCREW

€ 1.50

4

0832121058
ref: 4

LOCK WASHER

€ 2.00

5

3214037410
ref: 5

COIL,PRIMARY

€ 124.00

6

0211205168
ref: 6

SCREW

€ 2.50

7

0832121058
ref: 7

LOCK WASHER

€ 2.00

8

3210237420
ref: 8

ROTOR,FLYWHEEL

€ 452.50

9

3216037410
ref: 9

COIL ASSY,PICK UP

€ 138.00

10

0913905014
ref: 10

SCREW (SUS)

€ 2.50

11

3179249200
ref: 11

NUT,GENERATOR ROTOR

€ 10.00

12

0211206168
ref: 12

SCREW

€ 2.50

13

0834131049
ref: 13

KEY 4MM

€ 3.50

14

3237137400
ref: 14

CLAMP,MAGNETO LEAD WIRE

€ 1.50

15

3237137410
ref: 15

CLAMP,MAGNETO LEAD WIRE

€ 1.50

16

0940406412
ref: 16

CLAMP

€ 2.50

17

0211206108
ref: 17

SCREW

€ 1.50
