FUEL COCK

DR500S 1984 (E)

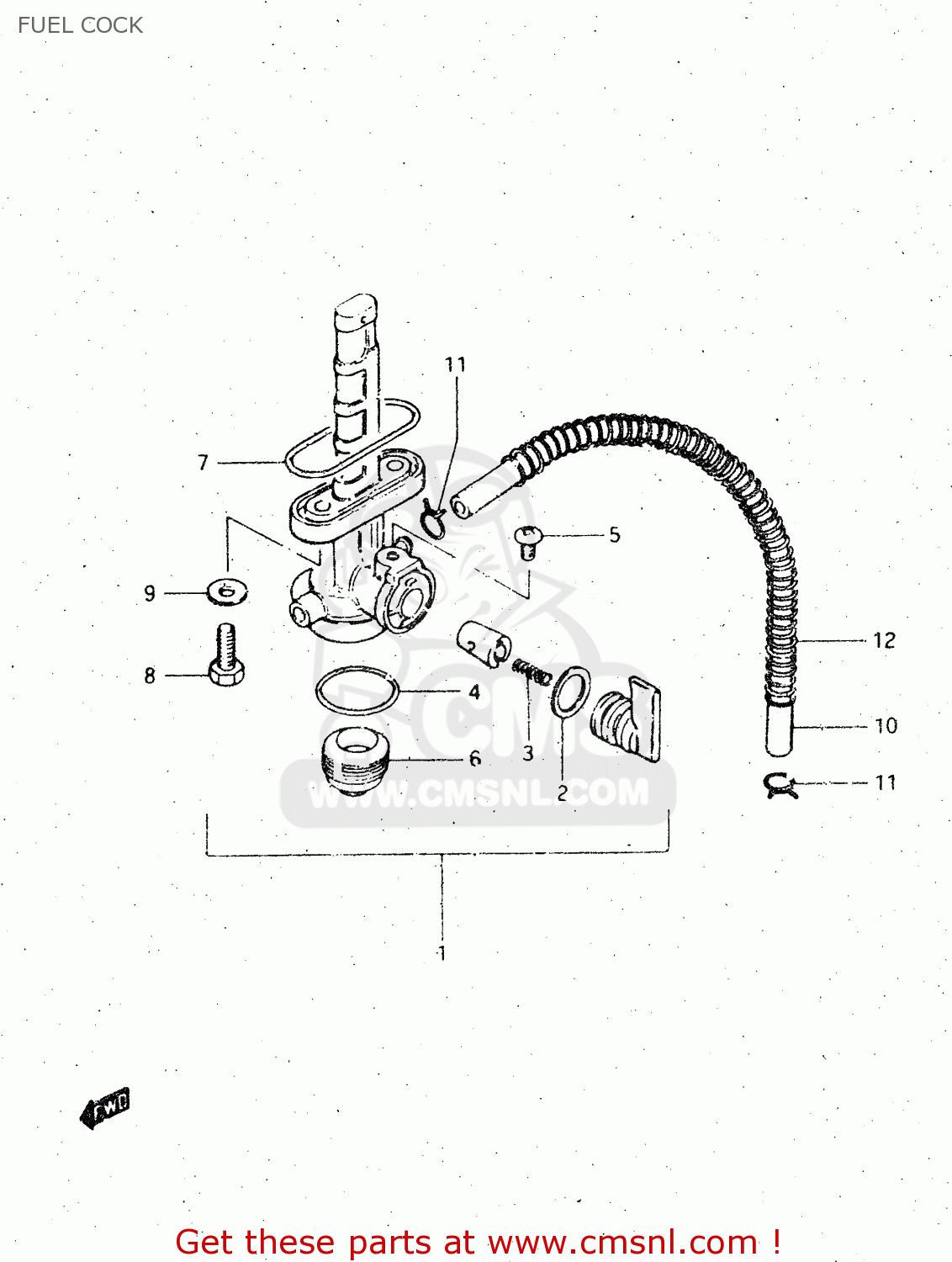

Fuel cock diagram DR500S 1984 (E)

FUEL COCK DR500S 1984 (E)

FUEL COCK DR500S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1-1

4430037271
ref: 1-1
MODEL D

COCK ASSEMBLY,FUEL

€ 88.50

1-2

4430037272
ref: 1-2
MODEL E

COCK ASSEMBLY,FUEL

€ 88.50

2

4435332470
ref: 2

O-RING

€ 7.50

3

4435732470
ref: 3

SPRING

€ 2.00

4

4434628070
ref: 4

GASKET,FILTER (NAS)

€ 2.50

5

4434332470
ref: 5

SCREW,FUEL COCK LEVER

€ 0.00

6

4434728071
ref: 6

CUP,STRAINER

€ 7.50

7

4434828070
ref: 7

O RING,FUEL COCK

€ 4.50

8

0912806006
ref: 8

BOLT(6X20)

€ 2.00

9

0916806010
ref: 9

GASKET

€ 2.00

10

0934307073
ref: 10

HOSE

€ 17.50

11

0940110401
ref: 11

CLIP

€ 1.50

12

0944013012
ref: 12

SPRING

€ 4.50
