FRAME COVER (MODEL D)
DR500S 1984 (E)

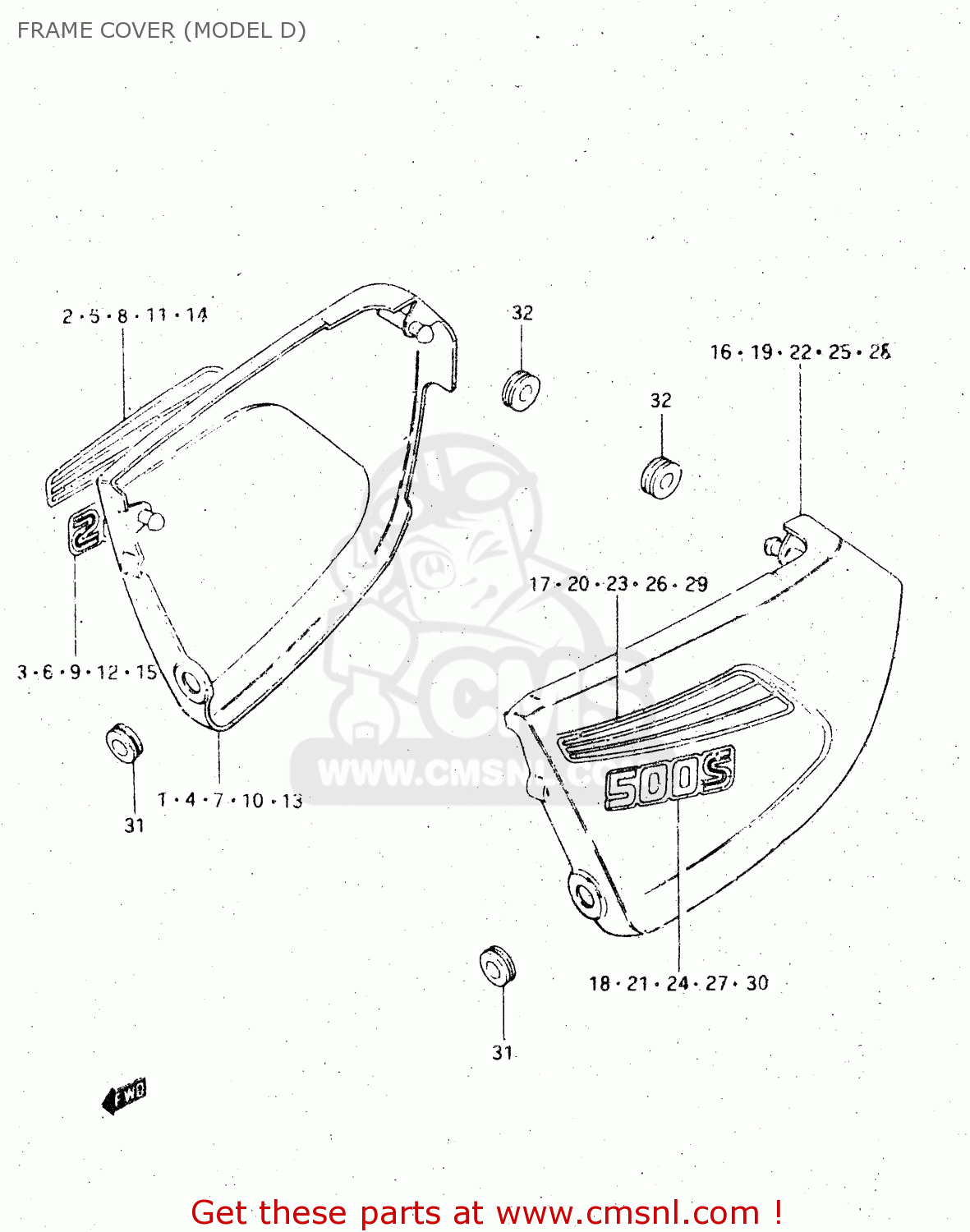

Frame cover (model d) diagram DR500S 1984 (E)
FRAME COVER (MODEL D) DR500S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
4711137401019
ref: 1
COVER, FRAME RH (BLACK)
€ 40.50
2
681303744089A
ref: 2
TAPE, FRAME COVER RH
€ 0.00
3
681313745089R
ref: 3
EMBLEM
€ 6.00
4
471113740105K
ref: 4
COVER, FRAME RH (BLUE)
€ 40.50
5
681303744089D
ref: 5
TAPE, FRAME COVER RH
€ 0.00
6
681313745089R
ref: 6
EMBLEM
€ 6.00
7
471113740107P
ref: 7
COVER,FRAME,RIGHT
€ 40.50
8
681303744089B
ref: 8
TAPE, FRAME COVER RH
€ 8.00
9
681313745089R
ref: 9
EMBLEM
€ 6.00
10
471113740110V
ref: 10
COVER,FRAME,RIGHT
€ 40.50
11
681303744076U
ref: 11
TAPE SET,FRAME COVER,RIGHT
€ 0.00
12
681313745073F
ref: 12
EMBLEM
€ 5.50
13
4711137401163
ref: 13
COVER, FRAME RH (YELLOW)
€ 40.50
14
681303744074H
ref: 14
TAPE, FRAME COVER RH
€ 9.00
15
681313745073F
ref: 15
EMBLEM
€ 5.50
16
4721137402019
ref: 16
COVER, FRAME LH (BLACK)
€ 83.50
17
681403744089A
ref: 17
TAPE, FRAME COVER LH
€ 0.00
18
681313745089R
ref: 18
EMBLEM
€ 6.00
19
472113740205K
ref: 19
COVER, FRAME LH (BLUE)
€ 83.50
20
681403744089D
ref: 20
TAPE, FRAME COVER LH
€ 0.00
21
681313745089R
ref: 21
EMBLEM
€ 6.00
22
472113740207P
ref: 22
COVER,FRAME,LEFT
€ 83.50
23
681403744089B
ref: 23
TAPE, FRAME COVER LH
€ 8.00
24
681313745089R
ref: 24
EMBLEM
€ 6.00
25
472113740210V
ref: 25
COVER,FRAME,LEFT
€ 83.50
26
681403744076U
ref: 26
TAPE SET,FRAME COVER,LEFT
€ 0.00
27
681313745073F
ref: 27
EMBLEM
€ 5.50
28
4721137402163
ref: 28
COVER, FRAME LH (YELLOW)
€ 83.50
29
681403744074H
ref: 29
TAPE, FRAME COVER LH
€ 9.00
30
681313745073F
ref: 30
EMBLEM
€ 5.50
31
0932005006
ref: 31
CUSHION
€ 4.00
32
0932008018
ref: 32
CUSHION
€ 4.00
