CAM CHAIN

DR500S 1984 (E)

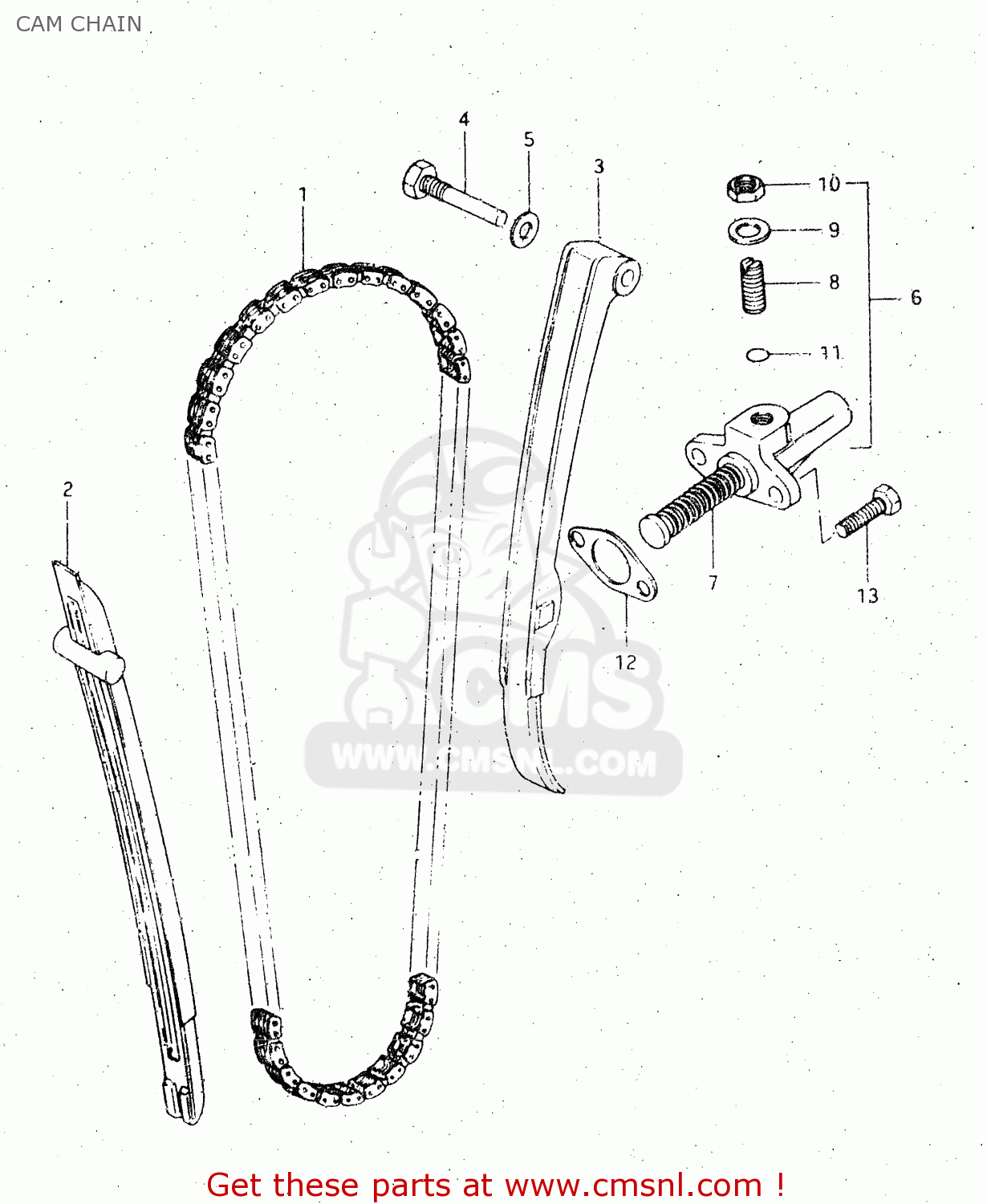

Cam chain diagram DR500S 1984 (E)

CAM CHAIN DR500S 1984 (E)

CAM CHAIN DR500S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

1276037400
ref: 1
124LE

CHAIN,CAMSHAFT DRIVE

€ 132.50

2

1277137400
ref: 2

GUIDE,CAM CHAIN

€ 39.50

3

1281137400
ref: 3

TENSIONER,CAM CHAIN

€ 41.50

4

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

5

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6

1283032420
ref: 6

ADJUSTER ASSEMBLY,TENSIONER

€ 166.50

7

0944011009
ref: 7

SPRING

€ 2.50

8

1283845001
ref: 8

SCREW

€ 6.00

9

0832211085
ref: 9

WASHER,8.5X16X

€ 1.50

10

0831011085
ref: 10

NUT

€ 1.50

11

0928006005
ref: 11

O RING(D:1.9,ID:5.7)

€ 2.50

12

1283732400
ref: 12

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.50

13

0110706205
ref: 13

BOLT

€ 2.00
