HEADLAMP (MODEL D/E E18,E21,E22,E25,E39, MODEL D E34)
DR500S 1984 (E)

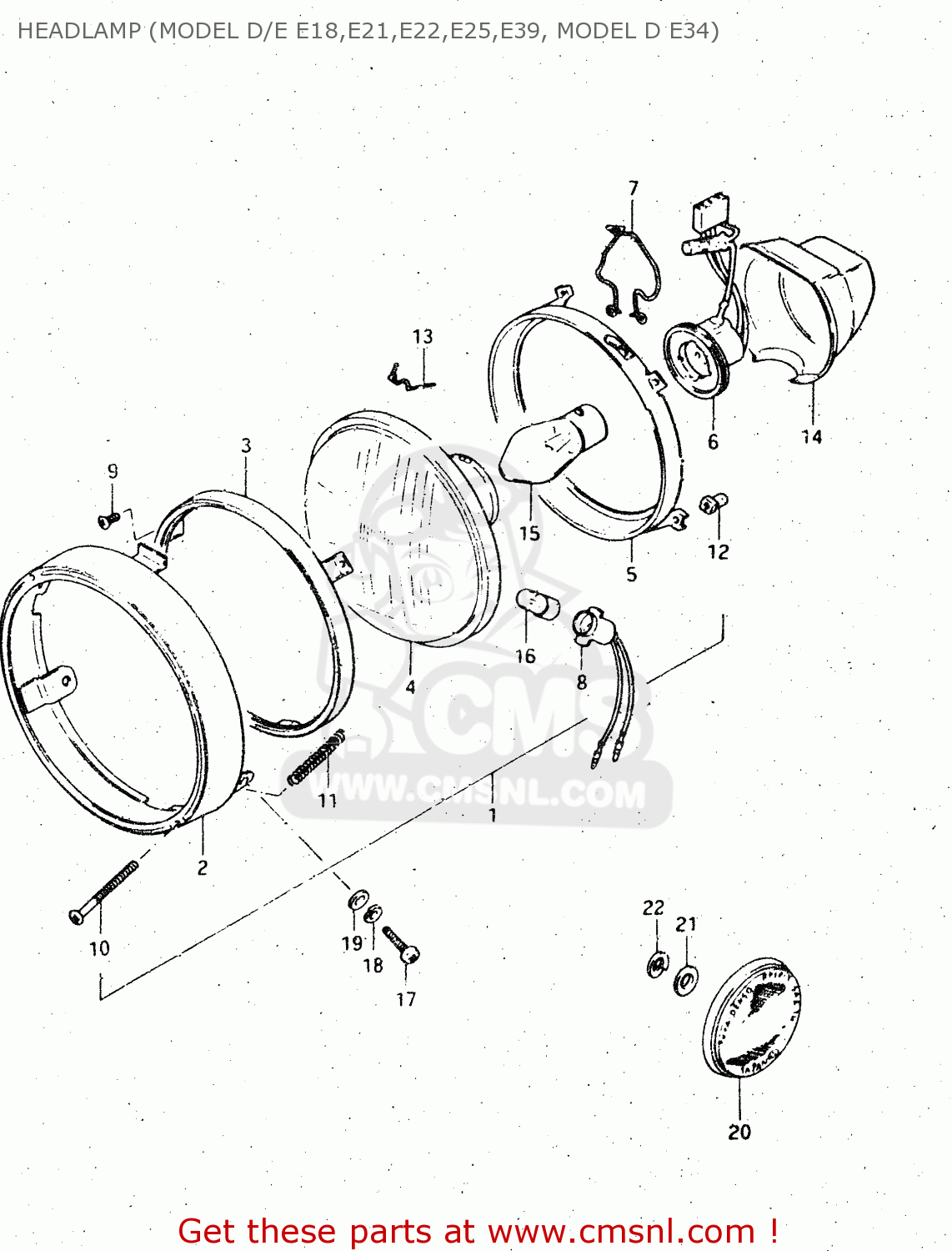

Headlamp (model d/e e18,e21,e22,e25,e39, model d e34) diagram DR500S 1984 (E)
HEADLAMP (MODEL D/E E18,E21,E22,E25,E39, MODEL D E34) DR500S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510037250999
ref: 1-1
E18,E21,E22,E25,E34
HEADLAMP ASSY
€ 161.50
1-2
3510048550999
ref: 1-2
E39
HEADLAMP ASSY
€ 141.50
2
3511148530
ref: 2
RIM
€ 34.00
3
3512748530
ref: 3
RETAINER,HEADLAMP
€ 13.00
4-1
3512132420
ref: 4-1
E18,E21,E22,E25,E34
UNIT
€ 89.00
4-2
3512128671
ref: 4-2
E39
UNIT
€ 59.50
5
3513048540
ref: 5
RING, MOUNTING
€ 18.00
6
3517136650
ref: 6
SOCKET
€ 27.00
7
3517228660
ref: 7
CLAMP,HEADLAMP
€ 7.00
8
3611828660
ref: 8
SOCKET
€ 11.50
9
0211204088
ref: 9
SCREW
€ 1.50
10
3515133611
ref: 10
SCREW,HEADLAMP ADJUST
€ 4.00
11
3515431900
ref: 11
SPRING,ADJUSTING
€ 3.50
12
3515248530
ref: 12
NUT,HEADLAMP ADJUSTER
€ 2.00
13
3512848530
ref: 13
SPRING,HEADLAMP UNIT
€ 3.50
14
3517348540
ref: 14
COVER, SOCKET
€ 16.00
15-1
0947106044
ref: 15-1
E18,E21,E22,E25,E34
BULB (6V,35/35W)
€ 10.00
15-2
0947106018
ref: 15-2
E39,EXECUTED LOCALLY
BULB (6V,25/25W)
€ 0.00
16-1
0947106047
ref: 16-1
E18,E21,E22,E25,E34
BULB (6V,4W)
€ 0.00
16-2
0947106027
ref: 16-2
E39
BULB(6V4W,STANLEY,A1364J)
€ 4.50
17
0211205168
ref: 17
SCREW
€ 2.50
18
0832121058
ref: 18
LOCK WASHER
€ 2.00
19
0832221058
ref: 19
WASHER
€ 2.50
20
3595030910
ref: 20
E39
REFLEX REFLECTOR,FR
€ 43.50
21
0832121058
ref: 21
E39
LOCK WASHER
€ 2.00
22
0832221058
ref: 22
E39
WASHER
€ 2.50
